Renesas RA Family EK-RA6M3 – Quick Start Guide
R20QS0011EU0102 Rev.1.02 Page 17 of 23
Jun.12.20
This section provides instructions to modify the Quick Start example project. The Quick Start example project
can be modified by editing the source code and reconfiguring the properties of the MCU peripherals, pins,
clocks, interrupts, and so forth.
Note: The specific modifications that can be performed to the Quick Start example project are not
prescribed in this QSG. User discretion is advised while modifying the Quick Start example project.
1. Once the Quick Start example project is imported, click the configuration.xml file to open the
configurator. The configurator provides an easy to use interface to configure the properties of MCU
peripherals, pins, clocks, and so forth.

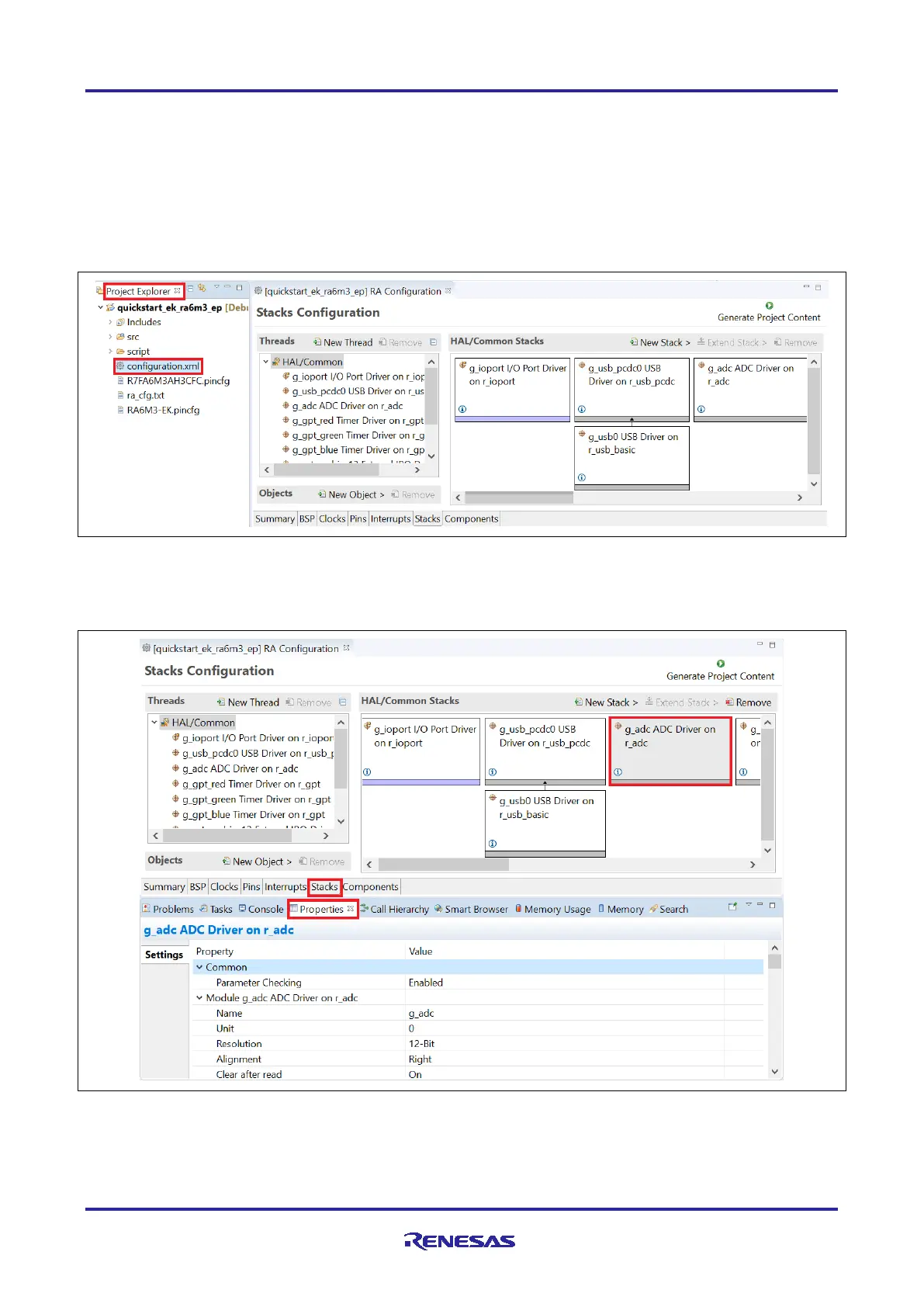

Figure 16. Opening the Configurator
2. For example, in the Stacks tab of the configurator, the user can click to select modules to modify the
configuration settings, as required. The following screen shot illustrates modifying the ADC driver
configuration.
Figure 17. Modifying the Configuration Settings
