Renishaw OTS User Manual

1-5

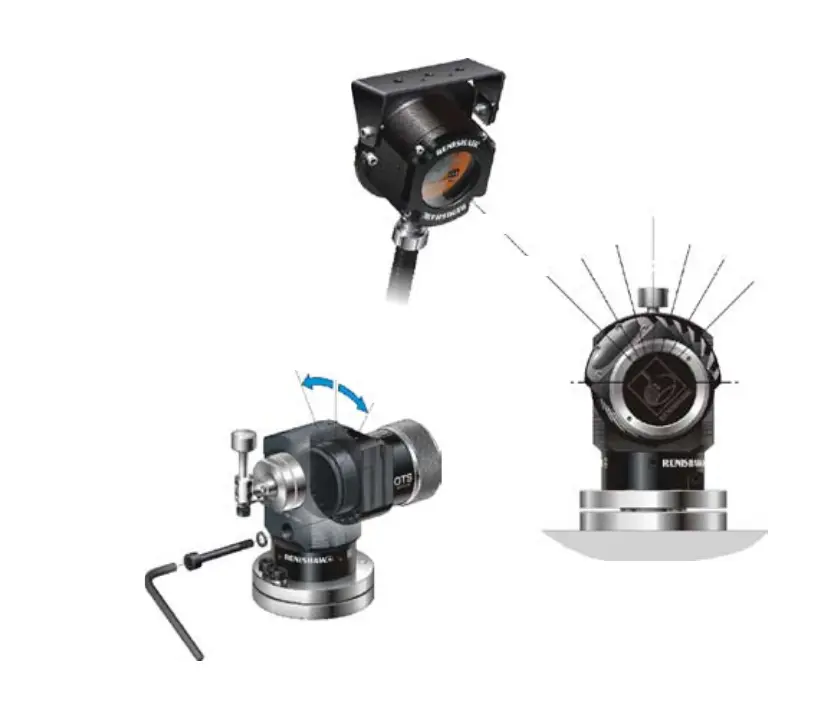

Aligning the modules
Signalmodule zueinander
ausrichten
Módulos de alineación
Alignement des modules
Allineamento dei moduli
モジュールの位置合わせ
5 Nm (0.81 lb.ft)5 Nm (0.81 lb.ft)
30°
15°15°
30°
45°
0°
0°
45°
5 Nm (0.81 lb.ft)

Renishaw OTS Specifications

General

Type	Optical Tool Setter
Transmission type	Infrared
Protection Rating	IPX8
Repeatability	1.0 µm 2σ
Power Supply	2 x AA batteries
