Renishaw TS27R User Manual

21
1. Remove the stylus and holder (see page17).
2. Remove the break stem using the 5 mm A/F
spanner.
3. Use a C spanner to remove the probe’s front
cover. This will expose the metal eyelid seal
and the inner diaphragm seal. Remove the
metal eyelid and spring.
CAUTION: These may fall out.
4. Wash inside the probe, using clean coolant.
CAUTION: Do not use sharp metal objects to
clean out debris.
5. Inspect the diaphragm seal for signs of
piercing or damage. In the event of damage,
return the probe to your supplier for repair, as
coolant entering the probe mechanism could
cause the probe to fail.
6. Ret the spring and metal eyelid (the spring’s
widest diameter is against the metal eyelid).
7. Ret the remaining components (see
pages16 and 17).
C spanner
3.6 Nm – 4.4 Nm
(2.66 lbf.ft – 3.25 lbf.ft)
Break stem
Captive link

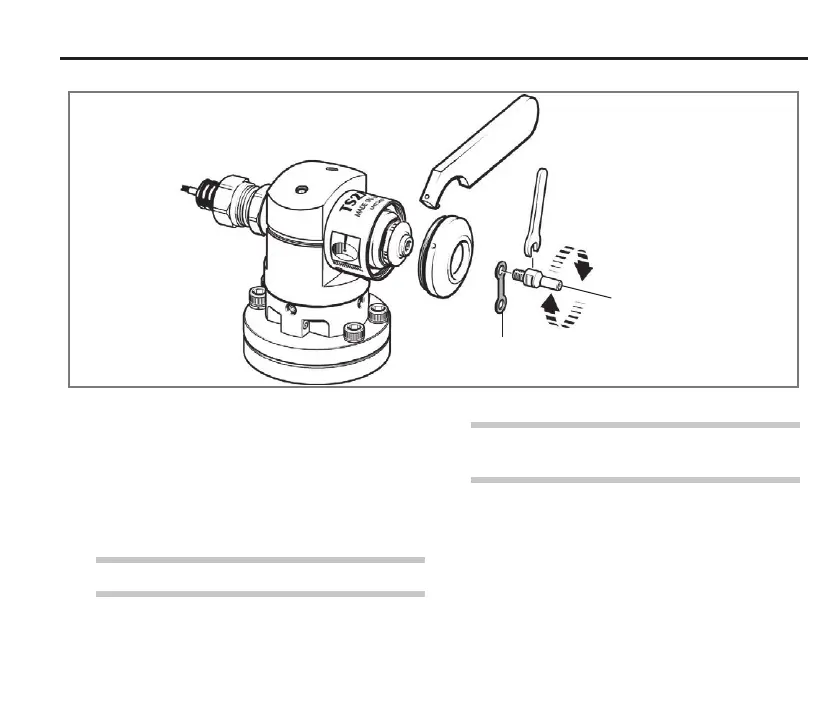

Diaphragm maintenance
Spanner 5 mm A/F
2.5 Nm – 2.7 Nm
(1.84 lbf.ft – 1.99 lbf.ft)
Front cover
with O-ring

Renishaw TS27R Specifications

General

Type	Tool setting probe
Hard-wired	Yes
Repeatability	1.0 µm (0.00004 in) 2σ
Stylus Tip Diameter	2 mm
Operating Voltage	5 V DC
Operating Temperature Range	5°C to 50°C
Storage Temperature Range	–10°C to 70°C
