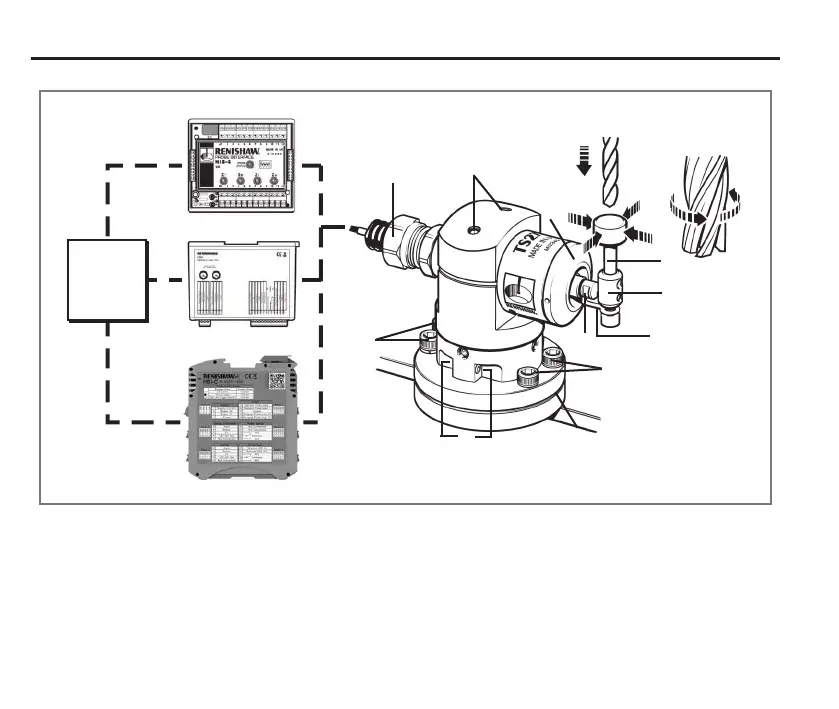

4 TS27R probe system
Alternative interface units
Cable
TS27R probe
Diameter setting
Rotate tool in
reverse direction
Z
X/Y
Machine table
T slot
7
5
11
7
10
6
4
3
2
1
8
9
1. Stylus
2. Stylus holder for disc or square styli
3. Captive link
4. Break stem
5. Front cover
6. Probe base holding screws
7. Stylus level alignment – adjusting screws
8. Plinth
9. Square stylus axes alignment – adjusting screws
10. Square stylus axes alignment – locking screws
11. Conduit adaptor
MI 8-4 interface
HSI interface
HSI-C interface
CNC
machine
controller

Renishaw TS27R Specifications

General

Type	Tool setting probe
Hard-wired	Yes
Repeatability	1.0 µm (0.00004 in) 2σ
Stylus Tip Diameter	2 mm
Operating Voltage	5 V DC
Operating Temperature Range	5°C to 50°C
Storage Temperature Range	–10°C to 70°C
