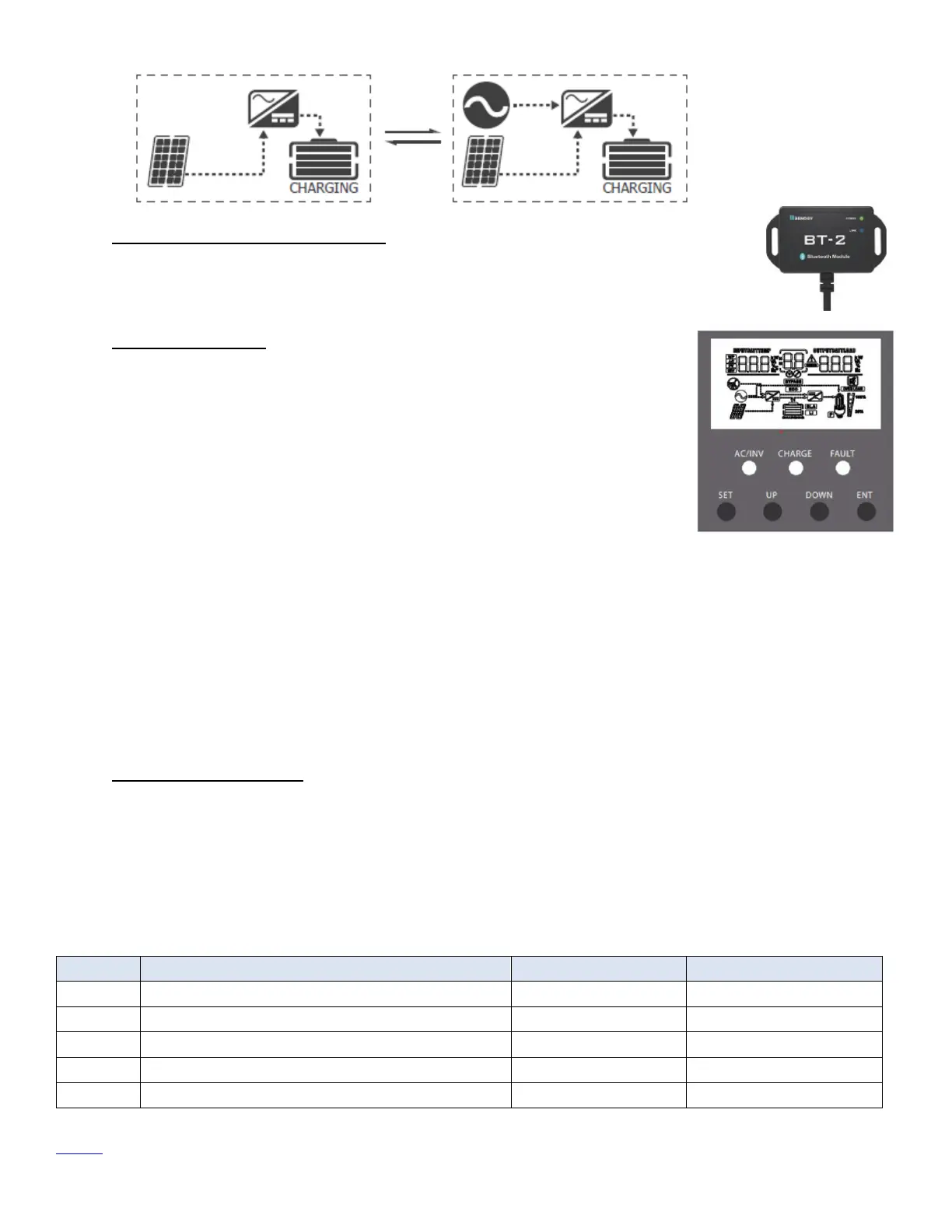

• Renogy BT-2 Bluetooth Module: The BT-2 Bluetooth module used to pair
charge controllers with the Renogy BT App. After pairing is done you can monitor
your system and change parameters directly from you cell phone or tablet. You can
see performance in real time without the need of checking on the controller’s LCD.
• Inverter Settings: Process for updating/changing the inverter parameters
includes:
A. Remove access cover to access the 48V Solar Inverter.
B. Review the option numbers before starting to reset inverter
parameters. When reviewing and updating the Inverter Settings, it is
recommended to start with option #8. It must be set for LF16. With
option #8 changed, it will set many of the options (green
highlighted). Yellow highlighted items are those which should have
be manually set.
C. Change all necessary parameters:
1. Select the ‘SET’ button
2. With the double ‘00’ flashing, press the ‘UP’ button until parameter number
desired to change.
3. Press the ‘ENT’ button
4. With the parameter value flashing, press the ‘UP’ or ‘DOWN’ button until desired
value is selected.
5. Press the ‘ENT’ button
6. Press the ‘SET’ button to close out the settings.
• Power Shore Settings: In order to change the AC Charging Current where the connection is less than
120VAC 30A. The inverter/charger rate may need to be reduced. Utilizing the inverter setting process
above, change parameter 28 ‘AC Charging Current’ from 0-40A by intervals of 5A to desired charging
current. For reference, here are the recommendations for setting #28:
o 15A shore: 20A DC
o 20A shore: 25A DC
o 30A shore: 40A DC
Inverter Settings
BATTERY POWER UTILITY SETPOINT
