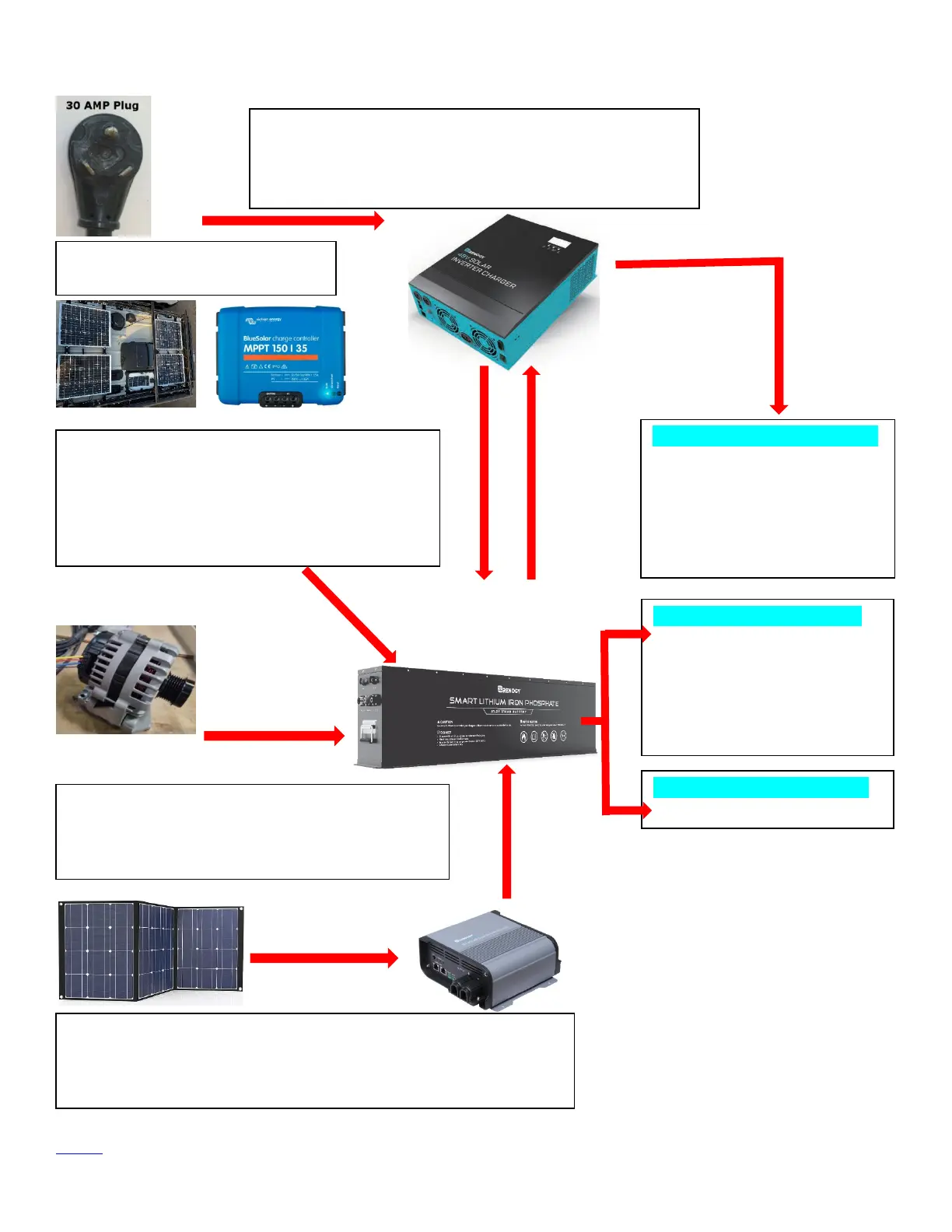

System Flow Chart (MY24)
LOW VOLTAGE DC (12V)
• Firefly Interface
• Refrigerator
• Lights (Interior/Exterior)
• Water Pump
• Awning
• Bed
HIGH VOLTAGE DC (48V)
•
Air Conditioner
HIGH VOLTAGE AC Output
Converts 48VDC to 120AC
o Distribution Panel
 Timberline Electric
Heating Element
 Outlets

Microwave
39.5VDC 300W external solar blanket array (optional). There is a
factory installed RCC10RVRB Rover Boost DC to DC charge
controller connected to the factory installed external solar port to
recharge the 51.2VDC 210 aH Lithium Ion battery.
74.4VDC 200W Solar Array (roof mounted)
There are 4 50W solar panels mounted on the
roof, wired in series to create a 74.4VDC 200W
solar array connected to a Victron 150V 35A
Solar charger to recharge the 51.2VDC 210 aH
Lithium Ion battery.
48VDC Engine driver alternator / generator
which charges the 51.2VDC 210 Ah Lithium Ion
battery as the engine is running and the engine
RPM’s are greater than 1500.
120VAC 30A max shore
connection
120VAC 3500 Watt inverter powered from the 48V high
voltage DC connection, and also charges the 51.2VDC
210 aH Lithium Ion battery with up to 40A when the
unit is connected to 120VAC 30A shore connection.
