Renogy B-Van Lithium V6R User Manual

HOME 7

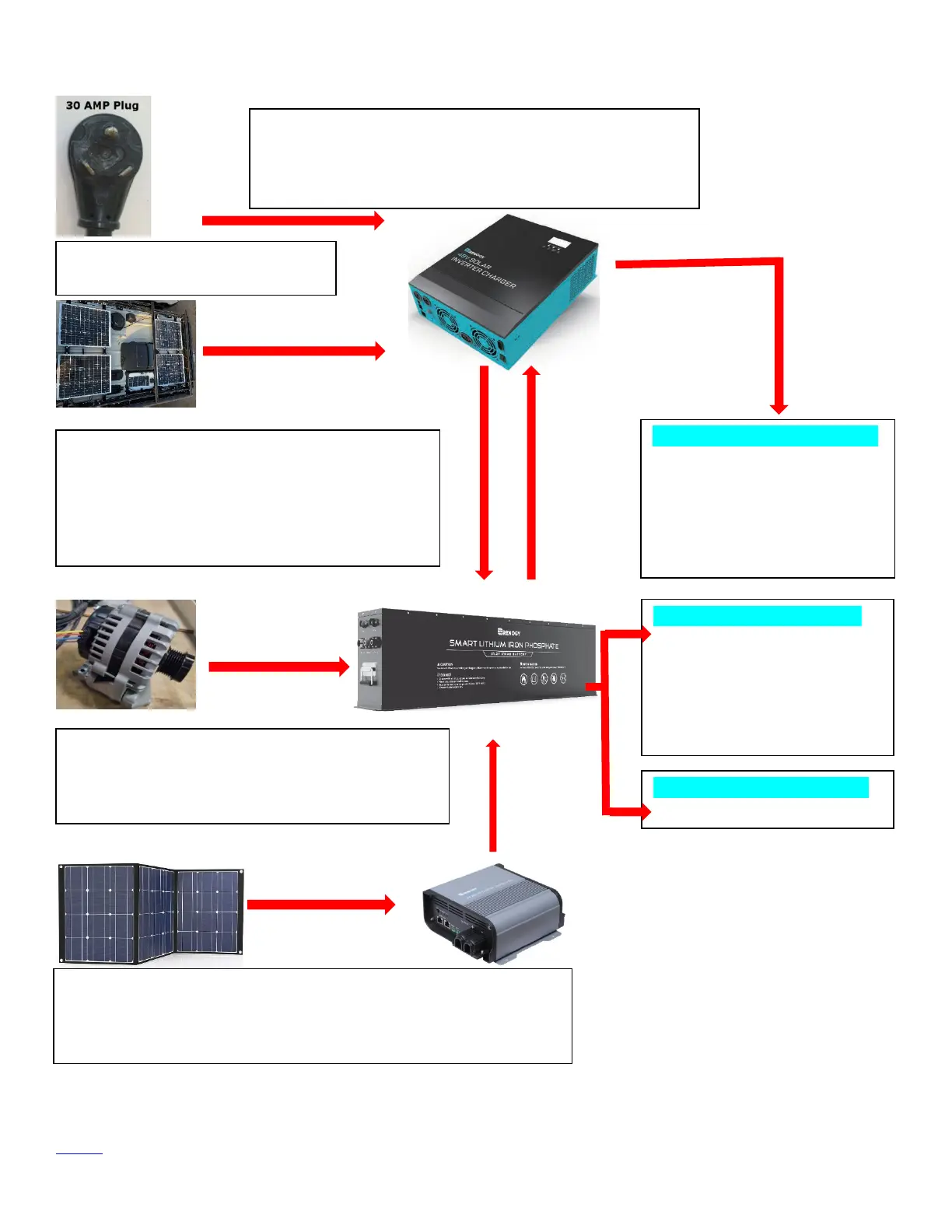

System Flow Chart (Pre-MY24)
LOW VOLTAGE DC (12V)
• Firefly Interface
• Refrigerator
• Lights (Interior/Exterior)
• Water Pump
• Awning
• Bed
HIGH VOLTAGE DC (48V)
•
Air Conditioner
HIGH VOLTAGE AC Output
Converts 48VDC to 120AC
o Distribution Panel
 Timberline Electric
Heating Element
 Outlets

Microwave
39.5VDC 400W external solar blanket array (optional). There is a
factory installed RCC10RVRB Rover Boost DC to DC charge
controller connected to the factory installed external solar port to
recharge the 51.2VDC 210 aH Lithium Ion battery.
74.4VDC 200W Solar Array (roof mounted)
There are 4 50W solar panels mounted on the
roof, wired in series to create a 74.4VDC 200W
solar array that is connected to the 3500W 48V
MPPT inverter / charger, to recharge the
51.2VDC 210 aH Lithium Ion battery.
48VDC Engine driver alternator / generator
which charges the 51.2VDC 210 Ah Lithium Ion
battery as the engine is running and the engine
RPM’s are greater than 1500.
120VAC 30A max shore
connection
120VAC 3500 Watt inverter powered from the 48V high
voltage DC connection, and also charges the 51.2VDC
210 aH Lithium Ion battery with up to 40A when the
unit is connected to 120VAC 30A shore connection.

Renogy B-Van Lithium V6R Specifications

General

Brand	Renogy
Model	B-Van Lithium V6R
Category	Battery Pack
Language	English
