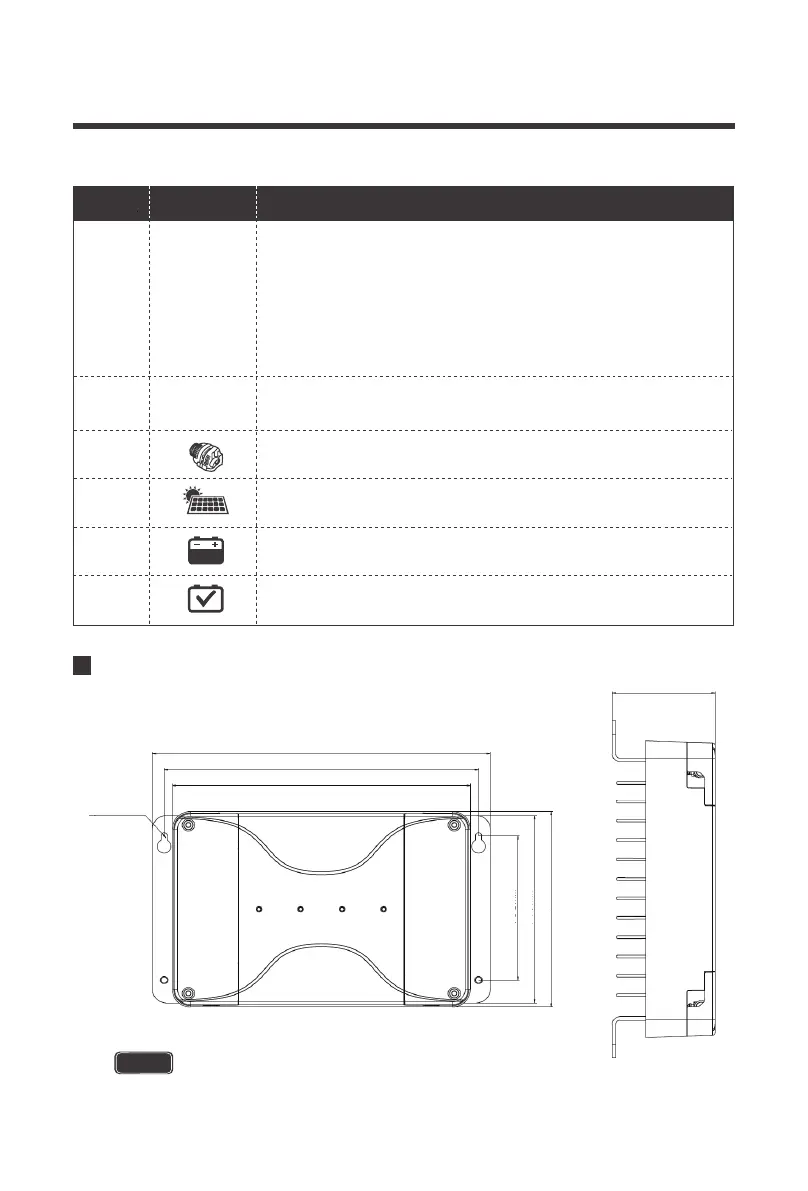

08
#
Labeling
Description
Battery type push button. Change the LED to the matching
battery type of your application.
Alternator/Charging Indicator
Solar Charging Indicator
Service Battery Indicator
Battery Type Indicator
IGN+
8
9
10
TYPE
Key Parts
11
12
13
Ignition Signal Input port for triggering the battery charger for
smart alternators. IGN wire recommended 18-16AWG .
Standard/Traditional Alternator –has a fixed voltage
when charging (Do not connect IGN wire)
Smart Alternator—has a controlled charging output based on
operating conditions Variable. (Requires IGN signal wire).
Dimensions
NOTE
227mm [8.94in]
215mm [8.46in]
244mm [9.60in]
φ4.5mm
140mm [5.51in]
146mm [5.75in]
108mm [4.25in]
77mm
[0.18in]
[3.03in]
The 30A/50A models are the same dimensions.
