Renogy Rover 40A - Component Identification; Key Component Labels

9 10 11
12
8
Key Parts
09

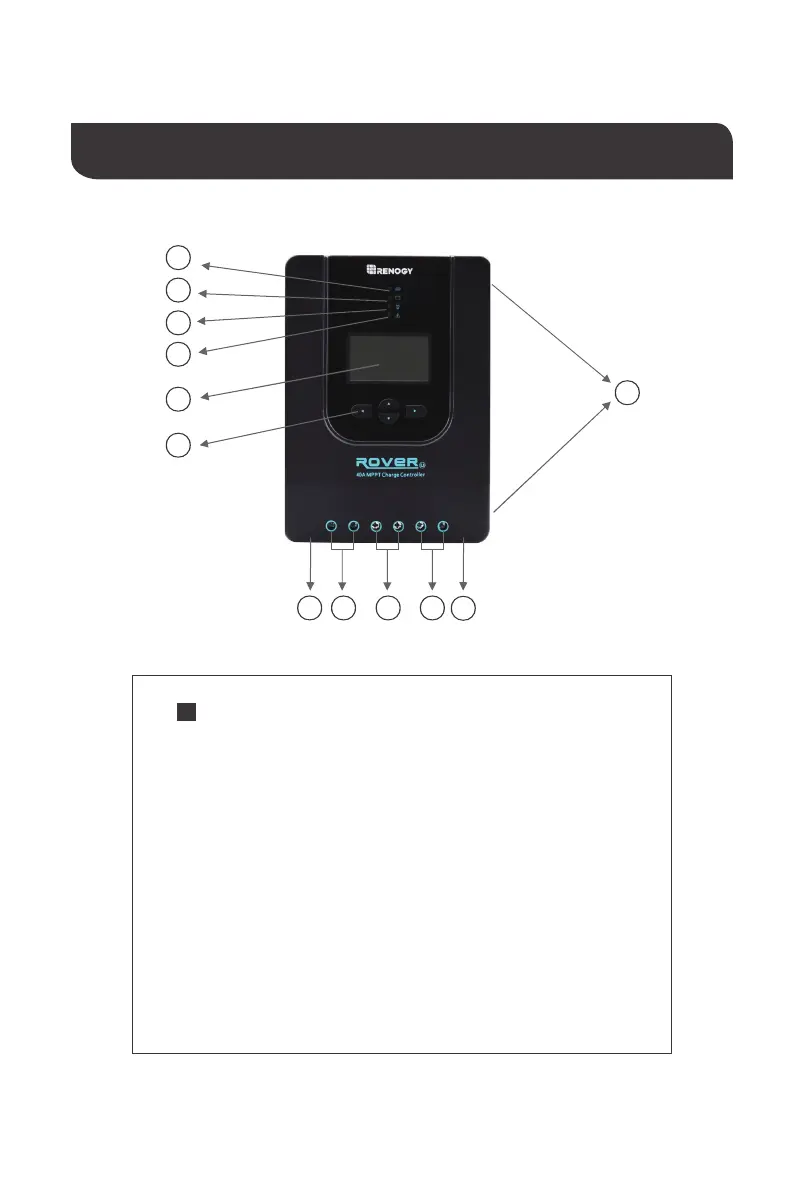

Identification of Parts
3
4
6
5
2
1
7
1. PV LED Indicator
2. Battery LED Indicator
3. Load LED Indicator
4. System Error LED Indicator
5. LCD Screen
6. Operating Keys
7. Mounting Holes
8. Remote Temperature Sensor Port (optional accessory)
9. PV Terminals
10. Battery Terminals
11. Load Terminals
12. RS-232 Port (optional accessory)
