Reolink Argus 3 Pro User Manual

Reolink Wireless Battery-powered Camera
19

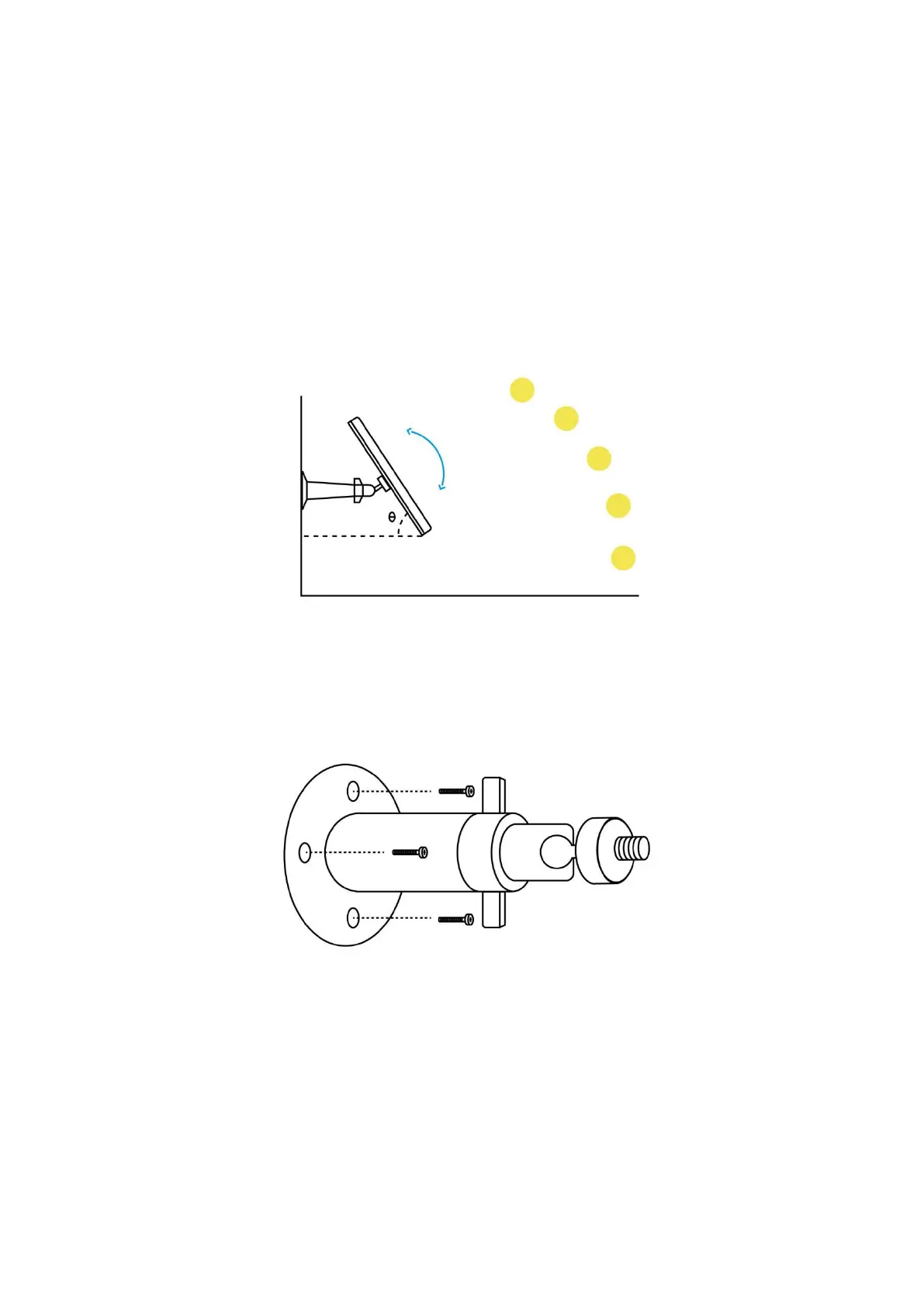

Install the Solar Panel
You may refer to the following steps to connect your Reolink solar-powered
cameras to a Reolink Solar Panel to get non-stop power.
1. Please select a position with the maximum sunlight exposure throughout the
year for your solar panel.
For Reolink Solar Panel, it only needs a few hours of direct sunlight exposure to
sufficiently power your camera daily. The amount of energy that the solar panel
can generate is affected by weather conditions, seasonal changes, geographic
locations, etc.
2. Mount the bracket with the mounting template and the screws provided in the
package.

Reolink Argus 3 Pro Specifications

General

Type	IP security camera
Luminous flux	230 lm
Day/night mode	Yes
Color temperature	6500 K
Placement supported	Outdoor
Connectivity technology	Wireless
Form factor	-
Mounting type	Ceiling/wall
Product color	White
LED indicators	Status
International Protection (IP) code	IP65
Sensor type	CMOS
Optical sensor size	1/3 \
LED type	IR
Infra-red wavelength	850 nm
Night vision distance	10 m
Number of illumination LEDs	6
Total megapixels	4 MP
Maximum resolution	2560 x 1440 pixels
Video formats supported	H.265
Number of cameras	1
Field of view (FOV) angle	122 °
Digital zoom	16 x
Audio system	2-way
Security algorithms	WPA-PSK, WPA2-PSK
Alert notification type	E-mail, Text alert message
Motion sensor technology	Passive infrared (PIR) sensor
Intelligent Video Surveillance (IVS) system features	Human detection
Ethernet LAN	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Power source type	Battery, USB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Operating temperature (T-T)	-10 - 55 °C

Weight and Dimensions

Depth	121 mm
Width	56 mm
Height	90 mm
Weight	330 g
