Reolink Argus 3 Pro User Manual

Reolink Wireless Battery-powered Camera
55
Tips for Improving Detection Alarms
When the camera failed to detect some motion, below tips can help improve the
motion detection accuracy.
1. Adjust the sensitivity level to high.
2. Adjust the installation angel of the camera in the direction crossing the
possible intruder instead of facing him/her so that it can detect motion more
accurately.

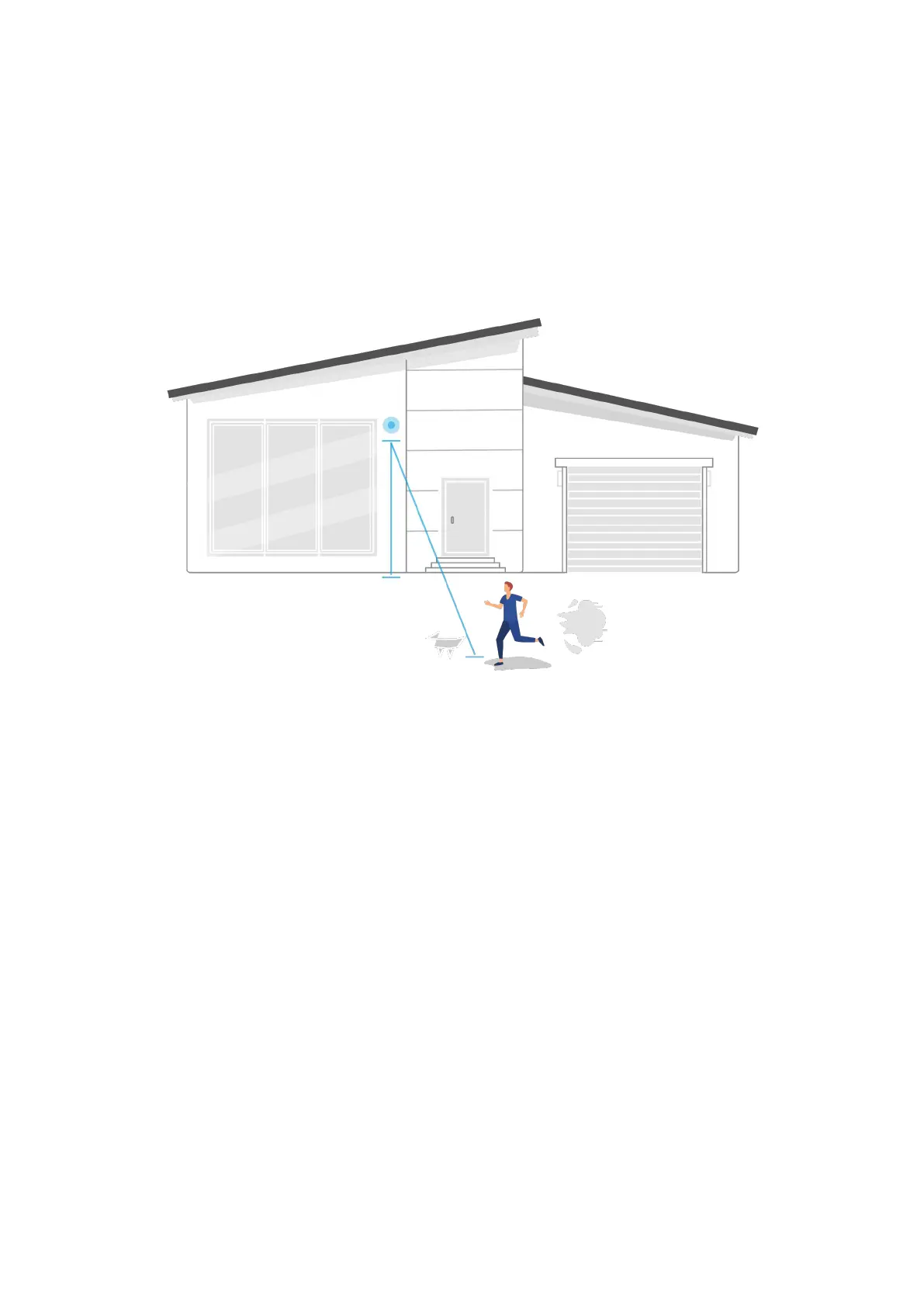

3. Adjust the installation height, it’s suggested to mount camera 2 to 3 meters
from the ground. Mount the camera too low or too high both will cause it hard
to detect alarm.
4. Ensure the detecting target is within the detection range of the PIR sensor.
Ideal monitoring range is from 7ft to 33ft.
Mounting Height:
2-3 Meters
PIR Detecting Distance:

Reolink Argus 3 Pro Specifications

General

Type	IP security camera
Luminous flux	230 lm
Day/night mode	Yes
Color temperature	6500 K
Placement supported	Outdoor
Connectivity technology	Wireless
Form factor	-
Mounting type	Ceiling/wall
Product color	White
LED indicators	Status
International Protection (IP) code	IP65
Sensor type	CMOS
Optical sensor size	1/3 \
LED type	IR
Infra-red wavelength	850 nm
Night vision distance	10 m
Number of illumination LEDs	6
Total megapixels	4 MP
Maximum resolution	2560 x 1440 pixels
Video formats supported	H.265
Number of cameras	1
Field of view (FOV) angle	122 °
Digital zoom	16 x
Audio system	2-way
Security algorithms	WPA-PSK, WPA2-PSK
Alert notification type	E-mail, Text alert message
Motion sensor technology	Passive infrared (PIR) sensor
Intelligent Video Surveillance (IVS) system features	Human detection
Ethernet LAN	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Power source type	Battery, USB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Operating temperature (T-T)	-10 - 55 °C

Weight and Dimensions

Depth	121 mm
Width	56 mm
Height	90 mm
Weight	330 g
