Reolink E1 Zoom User Manual

Reolink Wireless Camera
User Manual
2

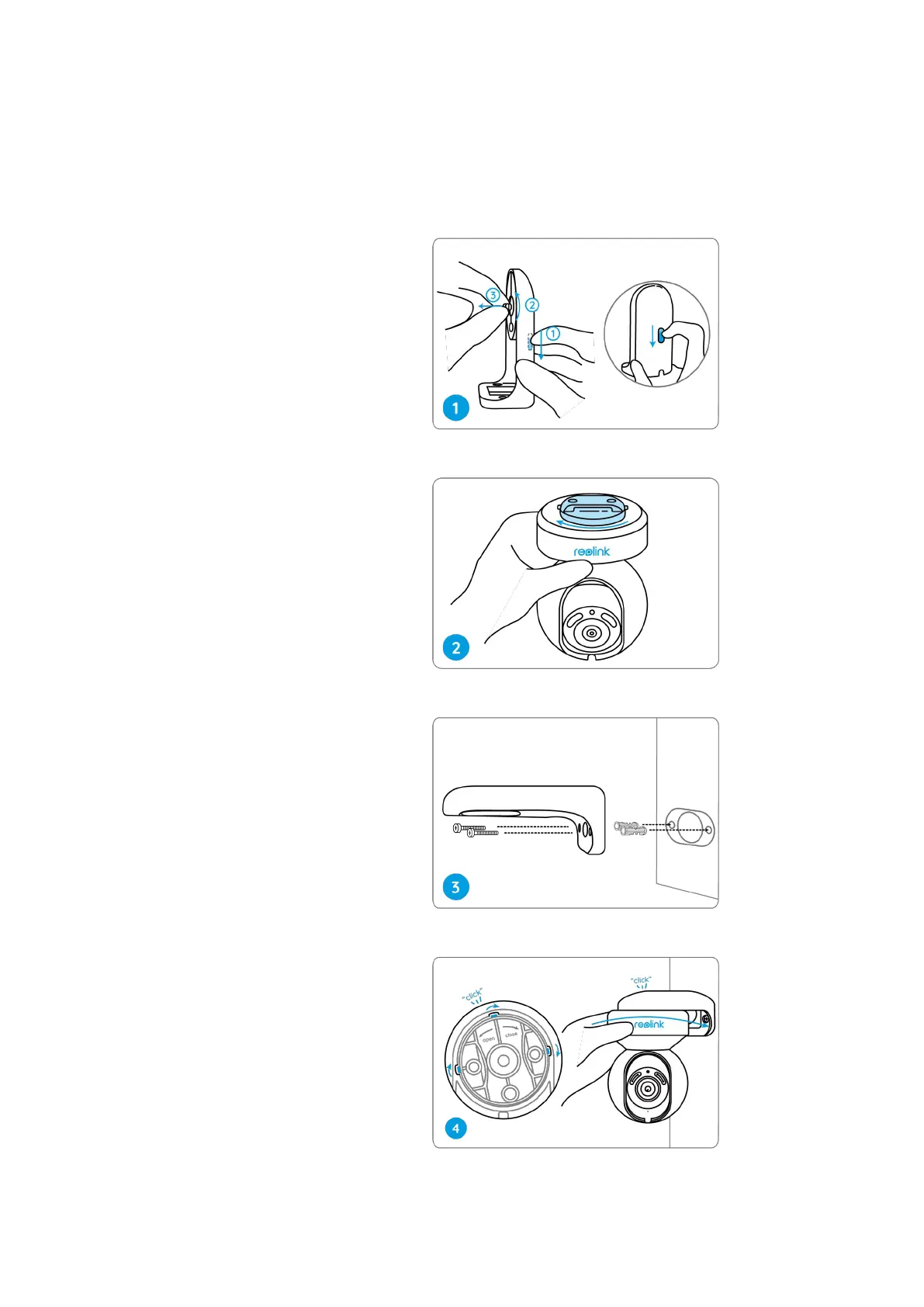

Mount E1 Outdoor
Mount the camera to the wall
For outdoor use, E1 Outdoor must be installed upside down for better waterproof
performance.
Pull the button of the
security mount and unscrew
the bracket to separate the
two parts.
Screw the bracket to the
bottom of the camera.
Drill holes in accordance with
the mounting template and
screw the security mount to
the wall.
Choose a proper direction of
the camera and then align
the bracket to the security
mount and lock the camera
in place by turning
anti-clockwise.
NOTE: Use the drywall anchors included in the package if needed.

Reolink E1 Zoom Specifications

General

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.7 \
Total megapixels	5 MP
Maximum resolution	2560 x 1920 pixels
Video compression formats	H.264
Optical zoom	3 x
Zoom capability	Yes
Focal length range	2.8-8 mm
Maximum aperture number	1.6
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wireless
Pan range	0 - 355 °
Tilt angle range	0 - 50 °
Minimum illumination	0 lx
LED type	IR
Infra-red wavelength	850 nm
Night vision distance	12 m
Number of illumination LEDs	10
DC output current	1 A
DC output voltage	5
Power source type	DC
Compatible memory cards	MicroSD (TransFlash)
Audio system	2-way
Bluetooth	No
Number of users	20 user(s)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Supported network protocols	HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Security algorithms	WPA-PSK, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 55 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 85 %
Form factor	-
Mounting type	Ceiling/wall
Product color	White

Weight and Dimensions

Height	111 mm
Weight	250 g
Diameter	80 mm
