Reolink E1 Zoom User Manual

Reolink Wireless Camera
User Manual
54
5. If you want to make some changes to an existing scene, long-press the
scene button to edit or delete the scene. The camera you selected will stay in
this mode until you change to another mode.
Add or Delete a Camera
Add the Camera in LAN

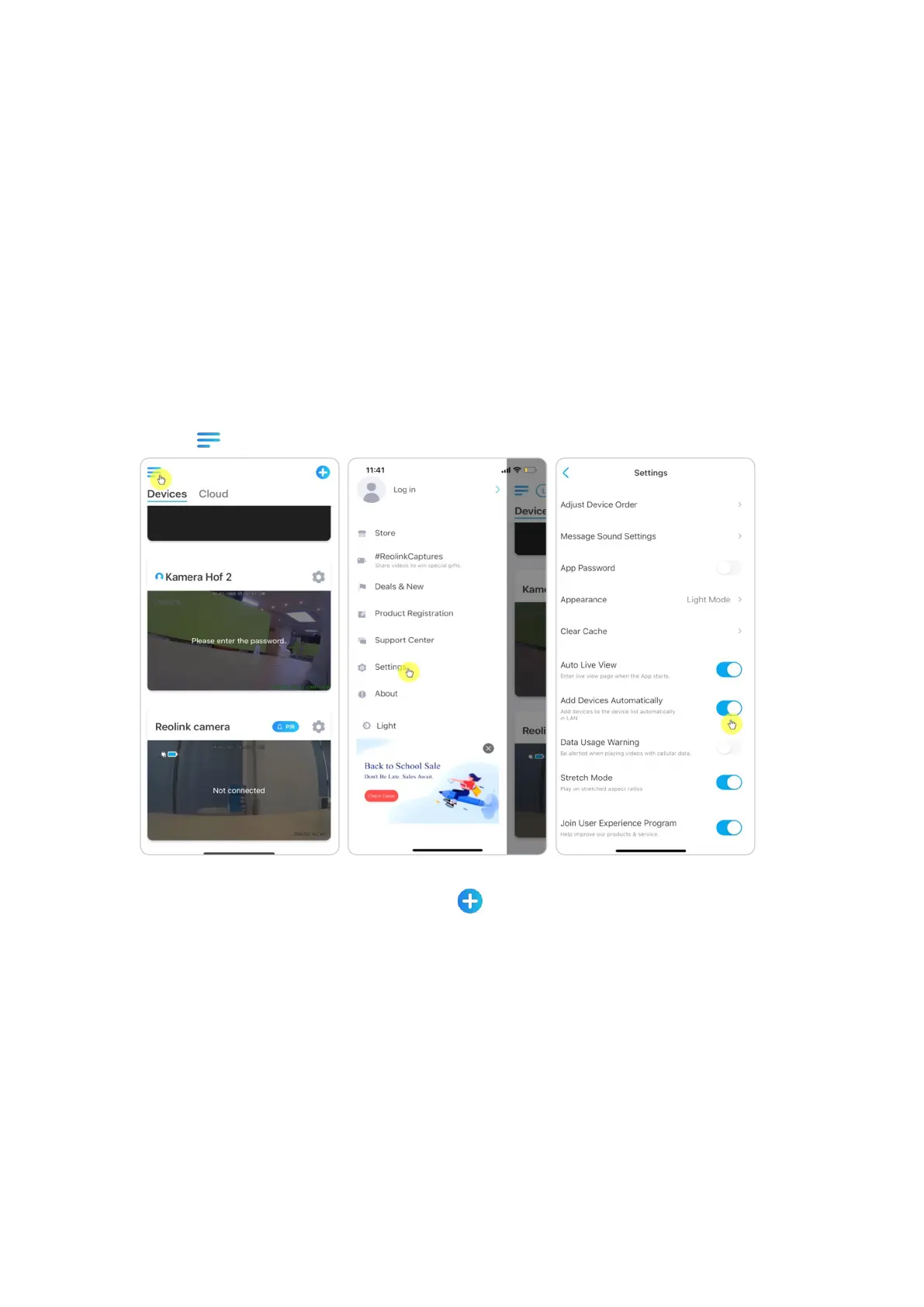

1. If you want to add the camera in LAN, we recommend that you enable the
Add Devices Automatically option. Once your smart phone and camera are
connected the same network, the Reolink App can find the Reolink device
automatically in LAN.
2. Tap and go to Settings > Add Devices Automatically.
Or you can go to the home page and tap > LAN and select the camera you
want to add.

Reolink E1 Zoom Specifications

General

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.7 \
Total megapixels	5 MP
Maximum resolution	2560 x 1920 pixels
Video compression formats	H.264
Optical zoom	3 x
Zoom capability	Yes
Focal length range	2.8-8 mm
Maximum aperture number	1.6
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wireless
Pan range	0 - 355 °
Tilt angle range	0 - 50 °
Minimum illumination	0 lx
LED type	IR
Infra-red wavelength	850 nm
Night vision distance	12 m
Number of illumination LEDs	10
DC output current	1 A
DC output voltage	5
Power source type	DC
Compatible memory cards	MicroSD (TransFlash)
Audio system	2-way
Bluetooth	No
Number of users	20 user(s)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Supported network protocols	HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Security algorithms	WPA-PSK, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 55 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 85 %
Form factor	-
Mounting type	Ceiling/wall
Product color	White

Weight and Dimensions

Height	111 mm
Weight	250 g
Diameter	80 mm
