Reolink E1 Zoom User Manual

Reolink Wireless Camera
User Manual
9

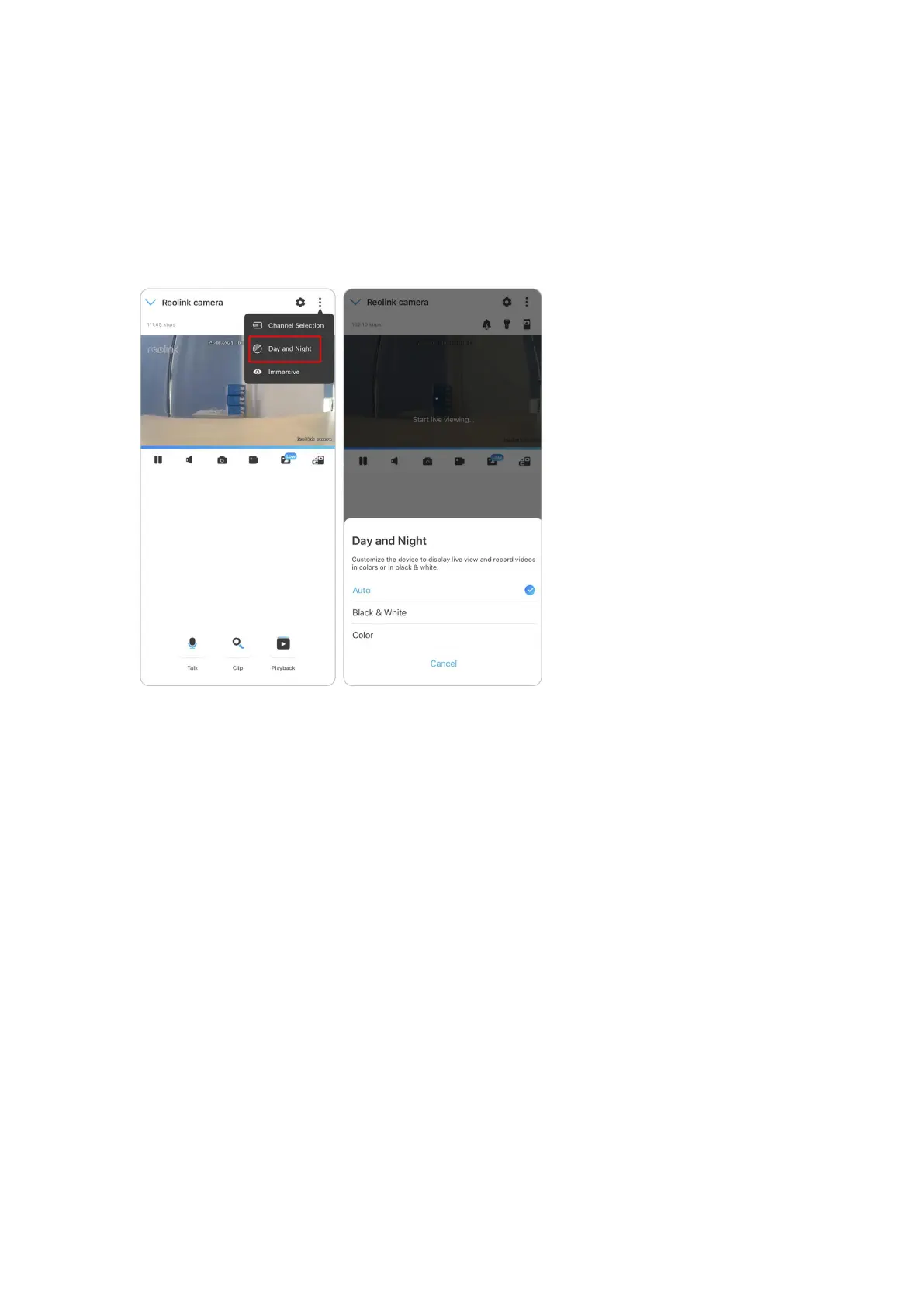

Day and Night
Set the camera’s color mode during different times of the day and night.
-Color: The camera will capture color images that usually appear during the day.
-Black & White: The camera will capture black-and-white images that usually
appear during the night with the IR LEDs on.
-Auto: The camera will automatically switch between Color and Black & White
modes according to the light conditions.
Use Immersive Mode
The immersive mode has a larger viewing area with less interference and focuses
on previewing. It is suitable for viewing 2 or 3 cameras on one screen.
Note:
One screen can accommodate up to three cameras. You could slip the screen to
preview other cameras.

Reolink E1 Zoom Specifications

General

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.7 \
Total megapixels	5 MP
Maximum resolution	2560 x 1920 pixels
Video compression formats	H.264
Optical zoom	3 x
Zoom capability	Yes
Focal length range	2.8-8 mm
Maximum aperture number	1.6
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wireless
Pan range	0 - 355 °
Tilt angle range	0 - 50 °
Minimum illumination	0 lx
LED type	IR
Infra-red wavelength	850 nm
Night vision distance	12 m
Number of illumination LEDs	10
DC output current	1 A
DC output voltage	5
Power source type	DC
Compatible memory cards	MicroSD (TransFlash)
Audio system	2-way
Bluetooth	No
Number of users	20 user(s)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Supported network protocols	HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Security algorithms	WPA-PSK, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 55 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 85 %
Form factor	-
Mounting type	Ceiling/wall
Product color	White

Weight and Dimensions

Height	111 mm
Weight	250 g
Diameter	80 mm
