Reolink E1 Zoom User Manual

Reolink Wireless Camera
User Manual
70

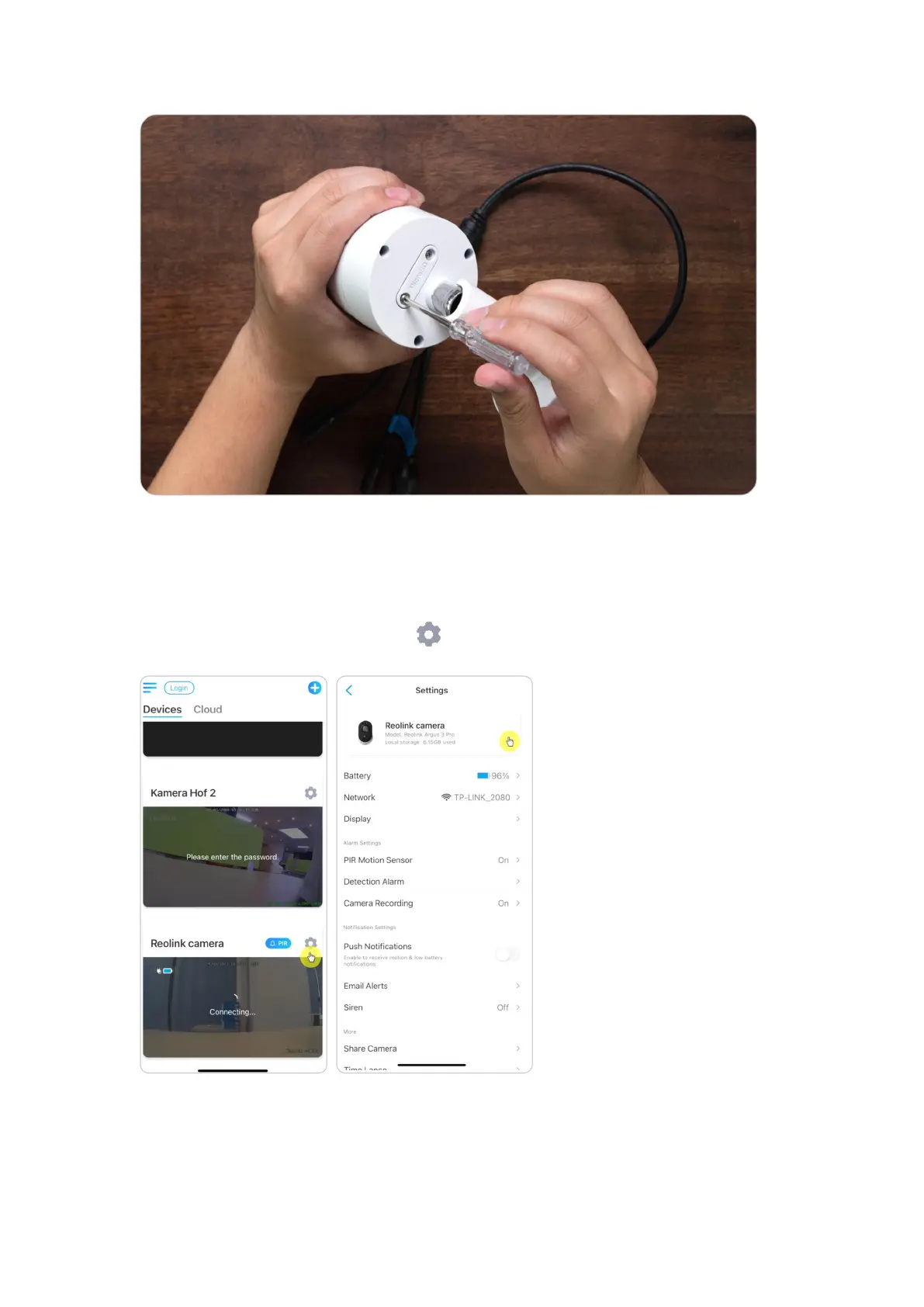

2. Find the micro SD card slot and please use something sharp such as the reset
pin or a paperclip or your fingernail to push the SD card to make it pop out.
Check the Micro SD Card Status
1. Launch the Reolink App and tap , then tap the camera name to enter Device
Info page.

Reolink E1 Zoom Specifications

General

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.7 \
Total megapixels	5 MP
Maximum resolution	2560 x 1920 pixels
Video compression formats	H.264
Optical zoom	3 x
Zoom capability	Yes
Focal length range	2.8-8 mm
Maximum aperture number	1.6
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wireless
Pan range	0 - 355 °
Tilt angle range	0 - 50 °
Minimum illumination	0 lx
LED type	IR
Infra-red wavelength	850 nm
Night vision distance	12 m
Number of illumination LEDs	10
DC output current	1 A
DC output voltage	5
Power source type	DC
Compatible memory cards	MicroSD (TransFlash)
Audio system	2-way
Bluetooth	No
Number of users	20 user(s)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Supported network protocols	HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Security algorithms	WPA-PSK, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 55 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 85 %
Form factor	-
Mounting type	Ceiling/wall
Product color	White

Weight and Dimensions

Height	111 mm
Weight	250 g
Diameter	80 mm
