Reolink RLC-410W User Manual

Reolink Wireless Camera
User Manual
34

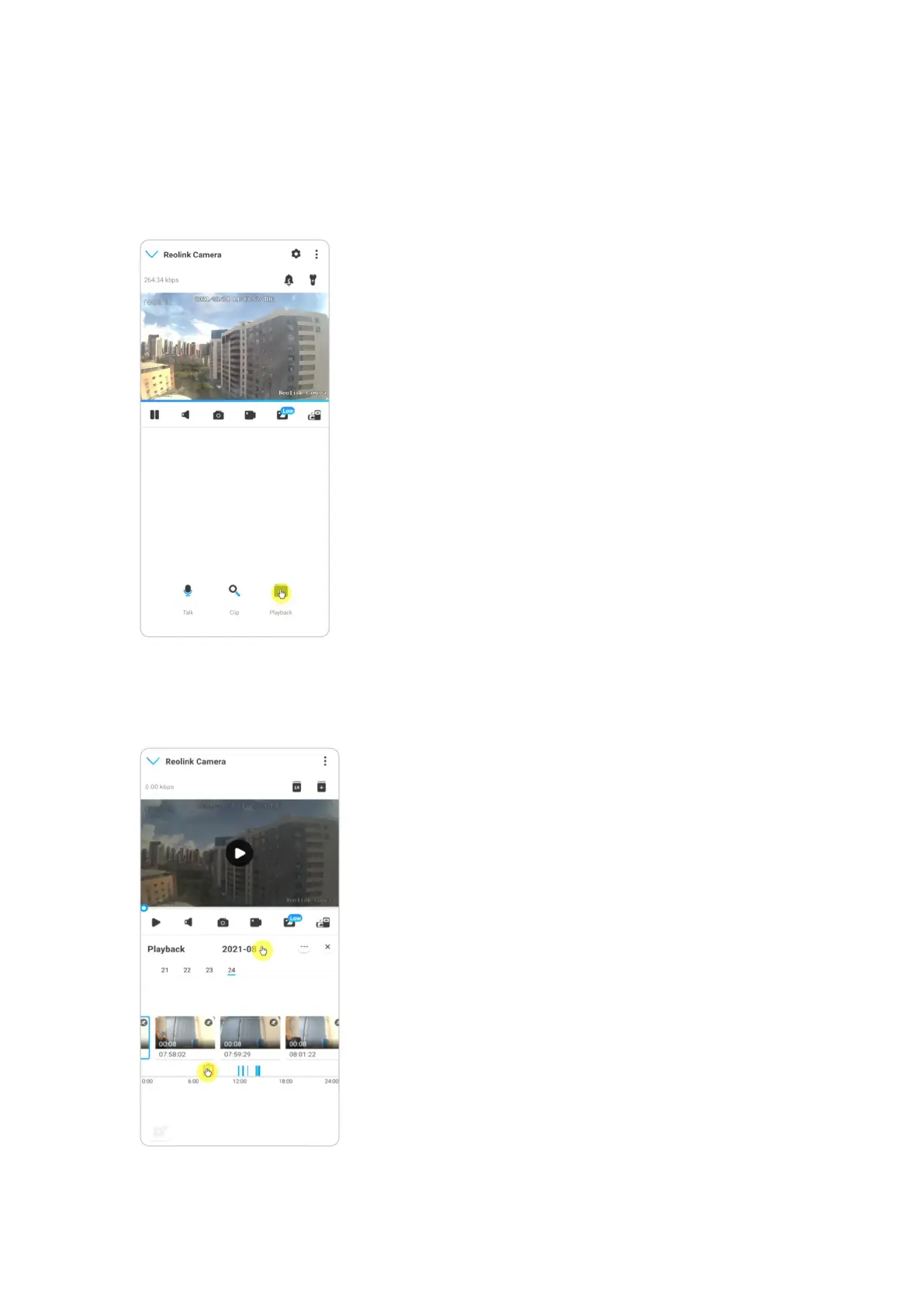

Playback and Download Recordings
Play back Recording
1. Open live view of the camera. Then tap on Playback on the bottom.
2. Select a date to search the recordings. Slide through the timeline to find the
recordings you want to replay, tap on the selected recording and it’ll automatically
start to play.

Reolink RLC-410W Specifications

General

Type	IP security camera
Antenna type	External
Day/night mode	Yes
Antennas quantity	2
Placement supported	Outdoor
Connectivity technology	Wired & Wireless
Bluetooth	No
Number of users	20 user(s)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Compatible memory cards	MicroSD (TransFlash)
Ethernet LAN (RJ-45) ports	1
Form factor	Bullet
Mounting type	Ceiling/wall
Product color	White
Protection features	Waterproof
International Protection (IP) code	IP66
Cables included	LAN (RJ-45)
Sensor type	CMOS
Optical sensor size	1/2.7 \
Fixed focal length	4 mm
Total megapixels	4 MP
Maximum resolution	2560 x 1440 pixels
Video compression formats	H.264
Noise reduction technology	3D noise reduction
Supported graphics resolutions	640 x 480 (VGA), 2048 x 1536 (QXGA), 2304 x 1296, 2560 x 1440
Minimum illumination	0 lx
LED type	IR
Infra-red wavelength	850 nm
Night vision distance	30 m
Number of illumination LEDs	18
Mobile operating systems supported	Android, iOS
Security algorithms	WPA-PSK, WPA2-PSK
DC output voltage	12
Power source type	DC
Power consumption (max)	8 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Length	186 mm
Weight	425 g
Diameter	67 mm
