Reolink RLC-410W User Manual

Reolink Wireless Camera
User Manual
66

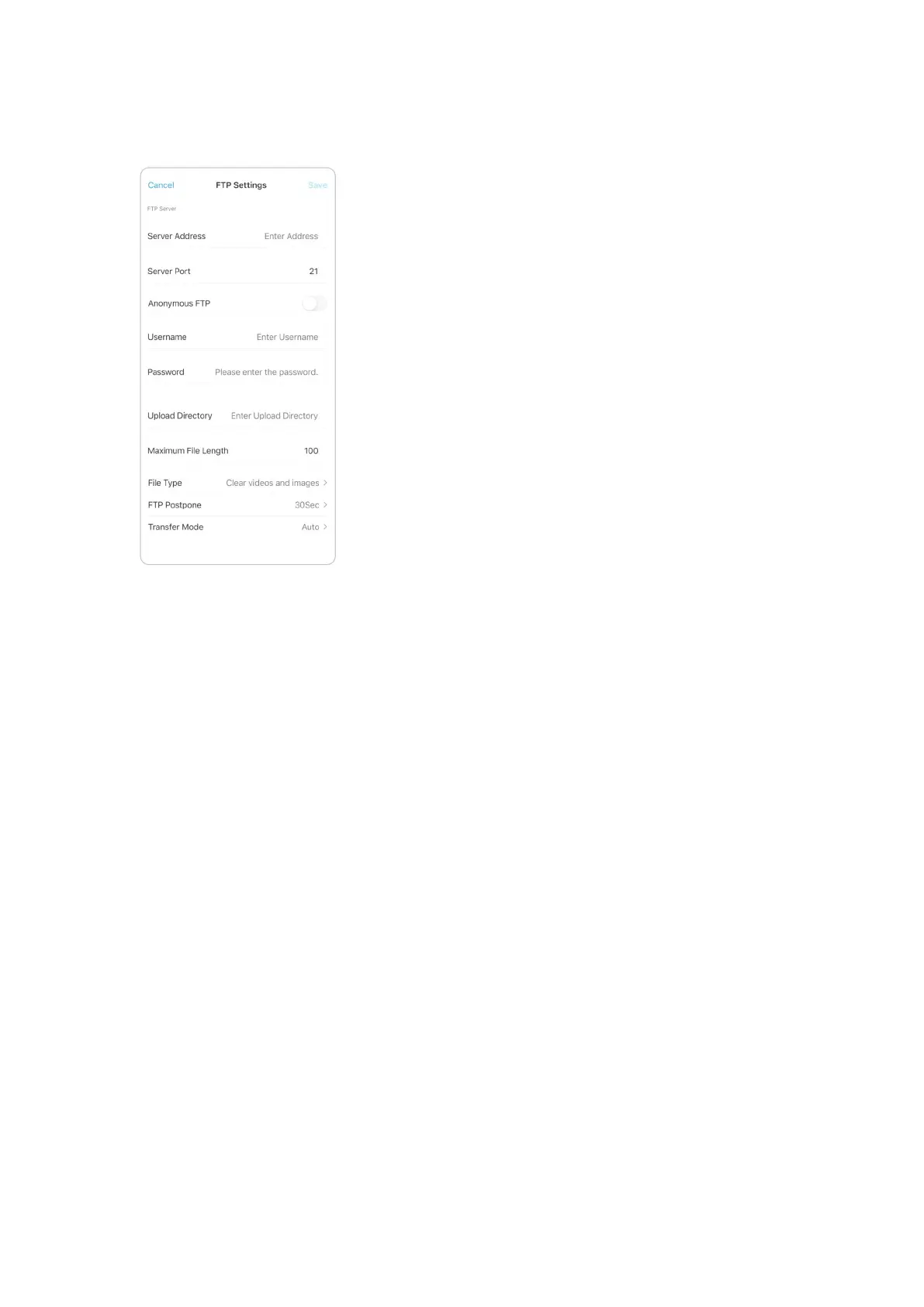

Step 2. Tap FTP Settings to complete the information required and click Save to
save all the settings.
Server Address: Type in the address of your FTP server and FTP Port. The default
FTP Port for Reolink products is 21.
User Name and Password: Enter the User Name and Password of your FTP server.
If there is no username and password required, please enable Anonymous FTP.
Upload Directory: Set an upload directory for device video recording. You may also
leave it blank.
Maximum File Length: You can enter the file length here.
File Type: Choose to upload both video and picture or picture only.
FTP Postpone: Set the record time limit after a motion is detected. This option is
only available when File Type is Video and FTP Schedule is Motion.
Transfer Mode: This option consists of Auto, PORT, and PASV three modes. We
recommend you choose the Auto option.

Reolink RLC-410W Specifications

General

Type	IP security camera
Antenna type	External
Day/night mode	Yes
Antennas quantity	2
Placement supported	Outdoor
Connectivity technology	Wired & Wireless
Bluetooth	No
Number of users	20 user(s)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Compatible memory cards	MicroSD (TransFlash)
Ethernet LAN (RJ-45) ports	1
Form factor	Bullet
Mounting type	Ceiling/wall
Product color	White
Protection features	Waterproof
International Protection (IP) code	IP66
Cables included	LAN (RJ-45)
Sensor type	CMOS
Optical sensor size	1/2.7 \
Fixed focal length	4 mm
Total megapixels	4 MP
Maximum resolution	2560 x 1440 pixels
Video compression formats	H.264
Noise reduction technology	3D noise reduction
Supported graphics resolutions	640 x 480 (VGA), 2048 x 1536 (QXGA), 2304 x 1296, 2560 x 1440
Minimum illumination	0 lx
LED type	IR
Infra-red wavelength	850 nm
Night vision distance	30 m
Number of illumination LEDs	18
Mobile operating systems supported	Android, iOS
Security algorithms	WPA-PSK, WPA2-PSK
DC output voltage	12
Power source type	DC
Power consumption (max)	8 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Length	186 mm
Weight	425 g
Diameter	67 mm
