Reolink RLC-510WA User Manual

Reolink Wireless Camera
User Manual
9

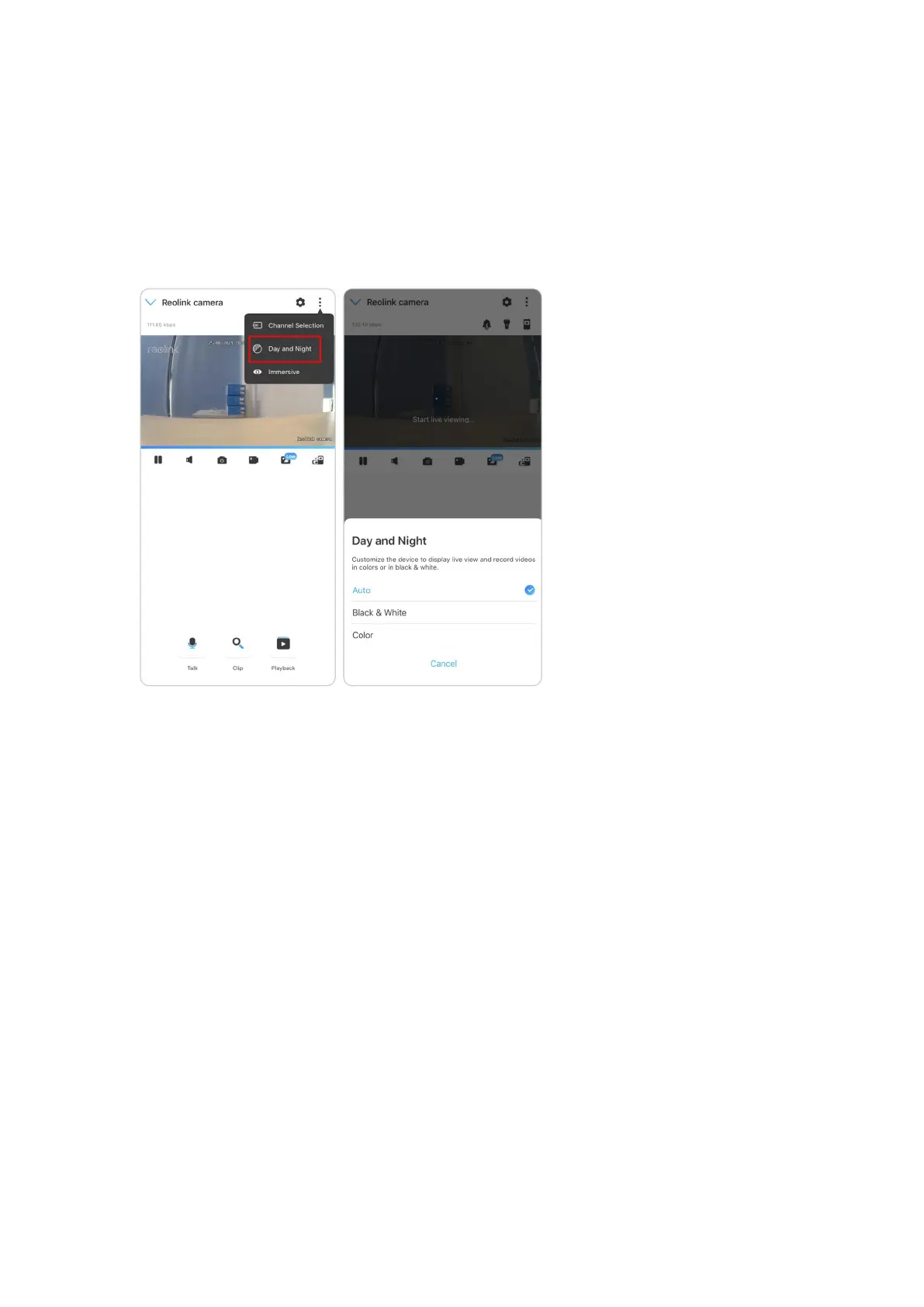

Day and Night
Set the camera’s color mode during different times of the day and night.
-Color: The camera will capture color images that usually appear during the day.
-Black & White: The camera will capture black-and-white images that usually
appear during the night with the IR LEDs on.
-Auto: The camera will automatically switch between Color and Black & White
modes according to the light conditions.
Use Immersive Mode
The immersive mode has a larger viewing area with less interference and focuses
on previewing. It is suitable for viewing 2 or 3 cameras on one screen.
Note:
One screen can accommodate up to three cameras. You could slip the screen to
preview other cameras.

Reolink RLC-510WA Specifications

General

Number of cameras	1
Video streaming	Yes
Total megapixels	5 MP
Maximum resolution	2560 x 1920 pixels
Video compression formats	H.264
Form factor	Bullet
Mounting type	Ceiling/wall
Product color	White
Protection features	Waterproof
International Protection (IP) code	IP66
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK
Bluetooth	No
Number of users	20 user(s)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired & Wireless
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Mobile operating systems supported	Android, iOS
Fixed focal length	4 mm
Maximum aperture number	2
Sensor type	CMOS
Optical sensor size	1/2.7 \
LED type	IR
Infra-red wavelength	850 nm
Night vision distance	30 m
Number of illumination LEDs	18
DC output current	1 A
DC output voltage	12
Power source type	DC
Power consumption (max)	12 W

Weight and Dimensions

Length	186 mm
Weight	415 g
Diameter	67 mm
