Reolink RLC-510WA User Manual

Reolink Wireless Camera
User Manual
62
7. Camera Settings
Network and WiFi Connection
Check the WiFi and Signal
You can see which WiFi network this camera connected and how about the
wireless signal.

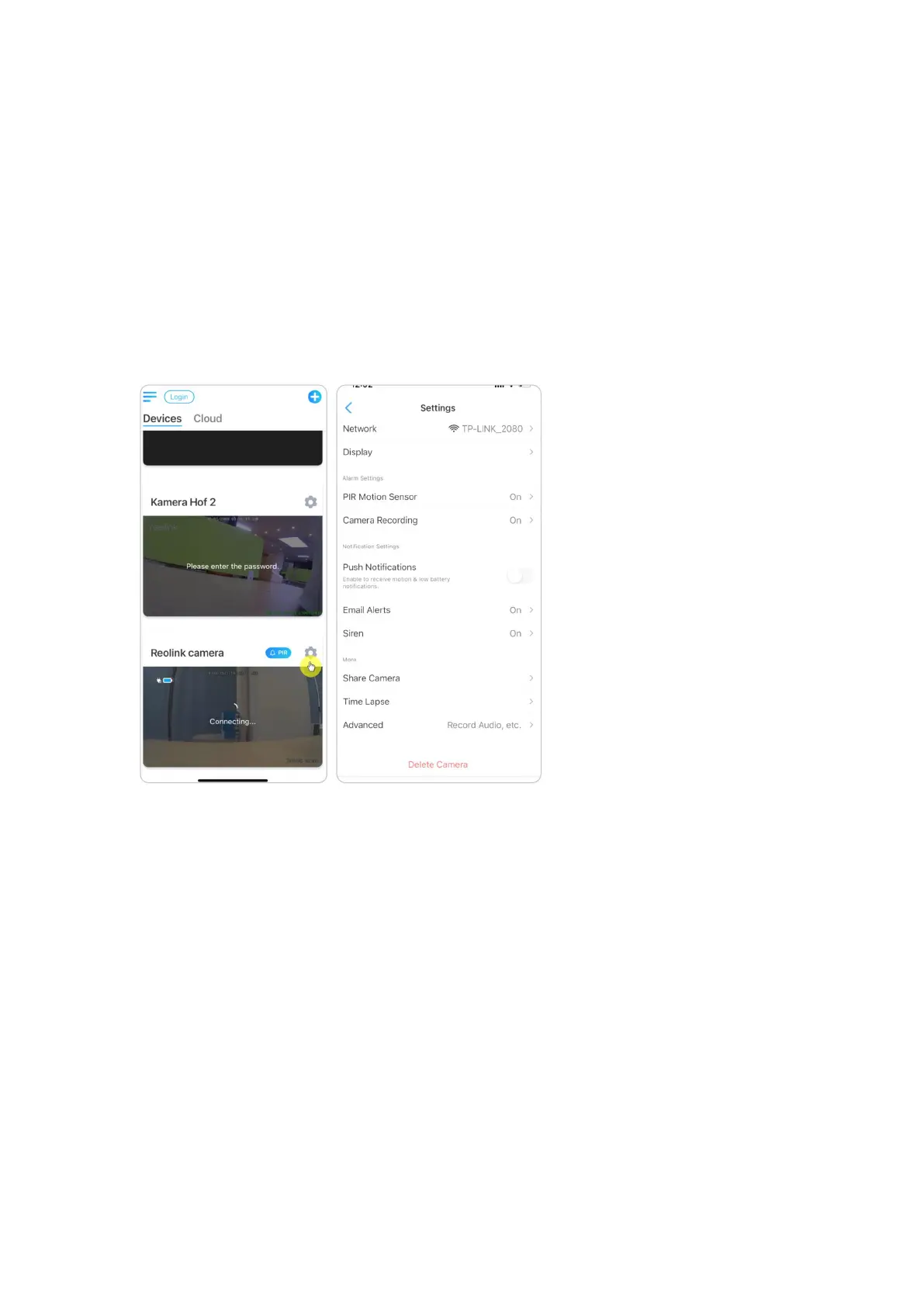

Launch the Reolink App and go to camera Settings, then tap on Network menu
and you’d see which WiFi the camera is connected to and how is the signal
strength.
Check the Network Information
1. Launch the Reolink App and tap on Device Settings, then tap camera name and
go to Device Info.

Reolink RLC-510WA Specifications

General

Number of cameras	1
Video streaming	Yes
Total megapixels	5 MP
Maximum resolution	2560 x 1920 pixels
Video compression formats	H.264
Form factor	Bullet
Mounting type	Ceiling/wall
Product color	White
Protection features	Waterproof
International Protection (IP) code	IP66
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK
Bluetooth	No
Number of users	20 user(s)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired & Wireless
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Mobile operating systems supported	Android, iOS
Fixed focal length	4 mm
Maximum aperture number	2
Sensor type	CMOS
Optical sensor size	1/2.7 \
LED type	IR
Infra-red wavelength	850 nm
Night vision distance	30 m
Number of illumination LEDs	18
DC output current	1 A
DC output voltage	12
Power source type	DC
Power consumption (max)	12 W

Weight and Dimensions

Length	186 mm
Weight	415 g
Diameter	67 mm
