Reolink RLC-510WA User Manual

Reolink Wireless Camera
User Manual
69
E1 Series

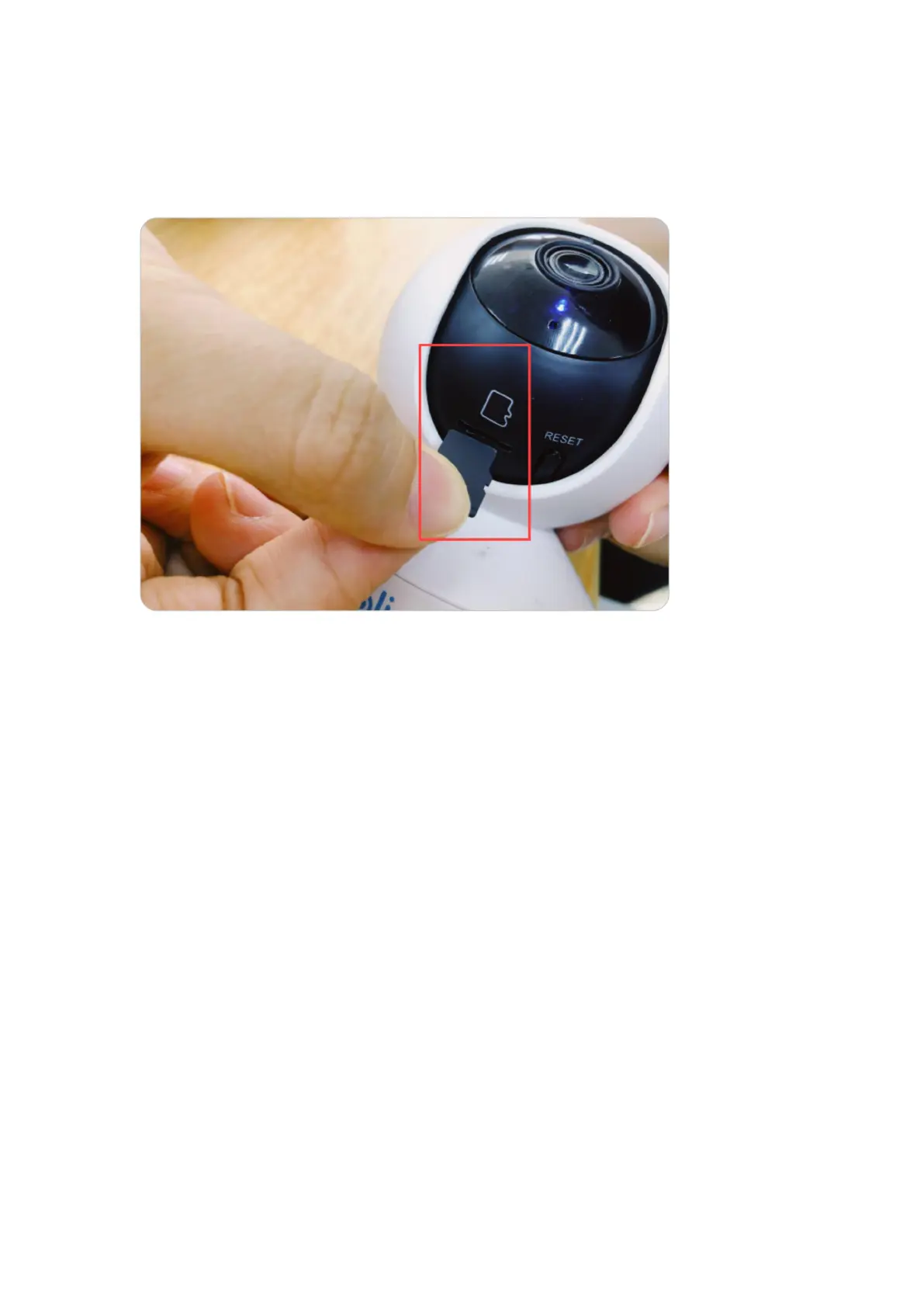

1. Power off the camera before inserting the SD card. Move up the lens to find the
micro SD card slot.
2. Insert the micro SD card into the card slot in the correct direction.
Note:
Please use your fingernail or something sharp like the reset pin to push the micro
SD card in until it's locked or you hear a "click" sound.
Remove the Micro SD Card
1. Please switch off the camera before removing the SD card. For cameras that
has a metal SD card slot cover, please unscrew to remove the cover first. And for
cameras with a rubber SD card slot cover, please directly open the cover.

Reolink RLC-510WA Specifications

General

Number of cameras	1
Video streaming	Yes
Total megapixels	5 MP
Maximum resolution	2560 x 1920 pixels
Video compression formats	H.264
Form factor	Bullet
Mounting type	Ceiling/wall
Product color	White
Protection features	Waterproof
International Protection (IP) code	IP66
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	WPA-PSK, WPA2-PSK
Bluetooth	No
Number of users	20 user(s)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired & Wireless
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Mobile operating systems supported	Android, iOS
Fixed focal length	4 mm
Maximum aperture number	2
Sensor type	CMOS
Optical sensor size	1/2.7 \
LED type	IR
Infra-red wavelength	850 nm
Night vision distance	30 m
Number of illumination LEDs	18
DC output current	1 A
DC output voltage	12
Power source type	DC
Power consumption (max)	12 W

Weight and Dimensions

Length	186 mm
Weight	415 g
Diameter	67 mm
