OPERATION
PLACEMENT / MOUNTING
Repco Battery Chargers are designed for indoor,
out of weather use only. The position selected for
the charging of the battery must be cool, dry, clean
and well ventilated, away from flammable goods
and ignition sources.
Mounting holes in the flanges of the battery
charger allow for quick and easy mounting for
permanent installations.
Note - When installed into caravans, motorhomes,
4WD’s or similar, the charger should be mounted in
a well-ventilated location, and protected from rain,
water, or moisture at all times.
Connection to the mains supply must be in
accordance with National wiring rules and
regulations.
To minimise TV/Radio interference, position the
charger well away from the TV, Radio, Antenna,
and the Antenna Cable.

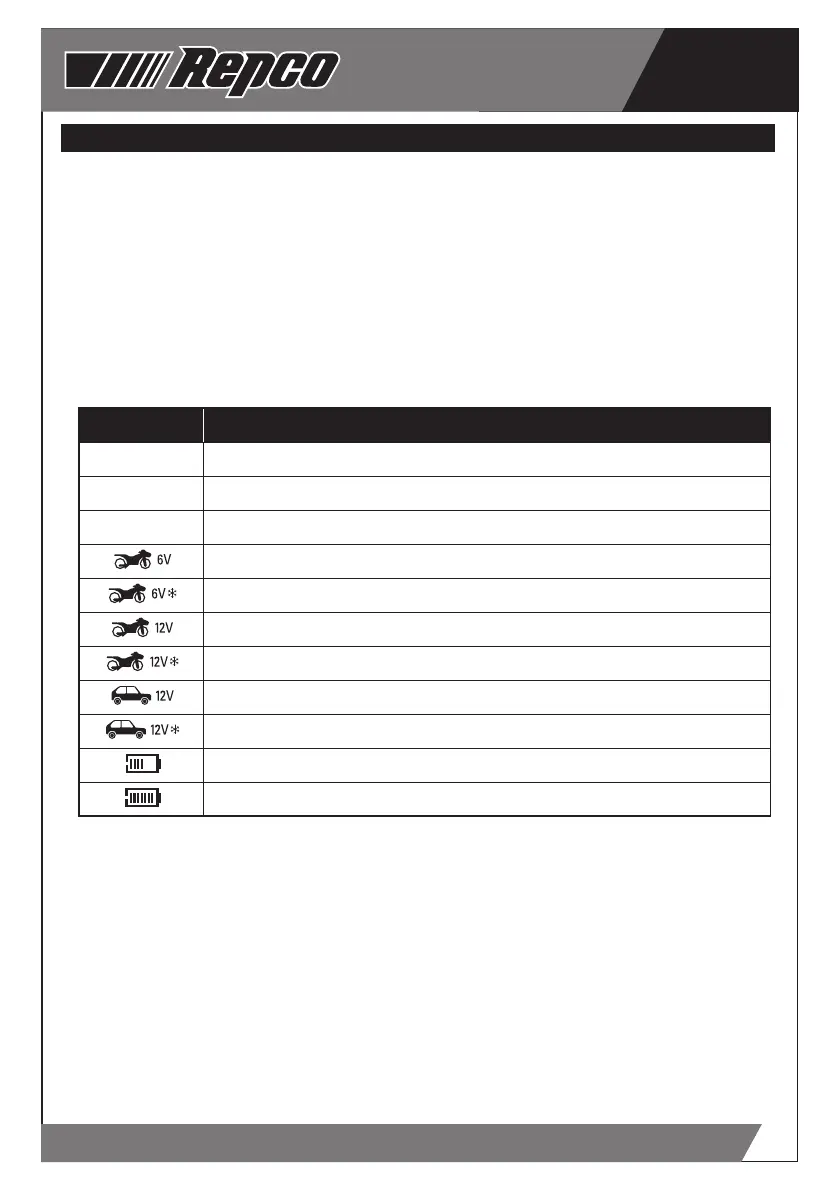

BATTERY CHARGER DISPLAY SUMMARY
LCD Display Condition / Mode
ER1 WRONG CONNECTION – incorrect battery voltage or; poor battery connection
ER2 BAD BATTERY – bad or failed battery; unable to recover
FUL FULL BATTERY – charge cycle complete and battery fully charged
6V Small Batteries (see table on page 10)
6V Small Batteries in cold conditions (see table on page 10)
12V Small Batteries (see table on page 10)
12V Small Batteries in cold conditions (see table on page 10)
12V Automobile Batteries (see table on page 10)
12V Automobile Batteries in cold conditions (see table on page 10)
Battery charge condition; the less bars, the lower the state of charge
Battery charge condition; all bars inside battery are illuminated - battery is fully charged
