resideo Braukmann - Technical Specifications; Dimensions and details; Hydraulic diagram; Technical data

HYBO - HYDRAULIC INTERFACE UNIT
3
EN1H-2615GE25 R1020

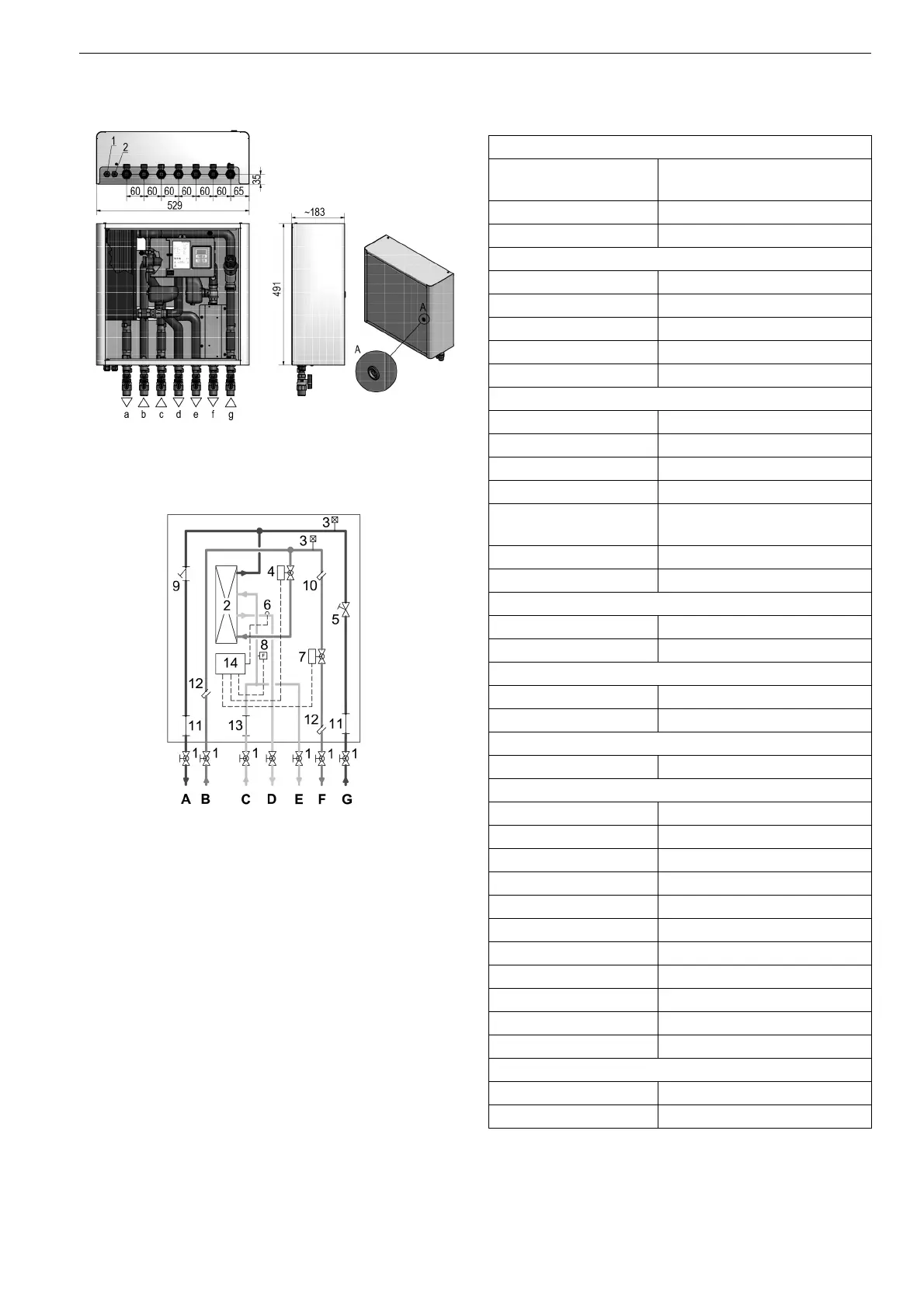

Dimensions and details
Hydraulic diagram
Technical data
* Physical limit for quite operation. Real max flow depends on target system
parameters.
1. Room thermostat 230V AC 2. Power supply 230V AC
1 Manual isolation valve
2 Plate heat exchanger
3 Manual air vent
4 Modulating motorized valve for DHW control
5 Static balancing valve
6 DHW sensor
7 On/Off motorized valve for heating control
8 DHW flow sensor
9 Filter
10 Pressure control probe holder
11 Blind pipe for water meter
12 Heat meter temperature probe holder
13 Blind pipe for water meter
14 Control panel
A Return to centralized system
B Supply from centralized system
C Cold sanitary water inlet
D Hot sanitary water outlet
E Cold sanitary water outlet
F Heating outlet to apartement
G Heating return from apartement
Heating Circuit
Kind of fluid Water VDI2035
max. glycol 30%
Max. temperature 90°C
Max. operating pressure 6 bar
Domestic water line
Kind of fluid Water max hardness 15dGH and pH 7-9
Max.temperature 30°C
Max. operating pressure 6 bar
Max. flow rate 1.5 m
3
/h
Nominal flow rate 1.25 m
3
/h
DHW / Exchanger Secondary Circuit
Kind of fluid Water max hardness 15dGH and pH 7-9
Max. setting temperature 60°C
Max. operating pressure 6 bar
DHW production flow activation 3.5 l/min
DHW production flow
deactivation
2.5 l/min
Display approximation 1°C
Max. flow rate 22l/min*
Pipes
Material Copper
Size ∅18 mm
Hydraulic connections
Material Brass
Size G 3/4" M
Template box
Material Galvanized sheet 1 mm
Casing and door
Material pickling sheet 1 mm
Colour RAL 9010
Electrical supply
Voltage 230V +/- 10%
Frequency 50 Hz
Max. power consumption 10W
IP protection 20
Ambient operation
Installation Indoor
Ambient temperature range 5-55°C
Humidity range 25-85%
Motorized Valve
Operation time ON/OFF type 15 sec
Operation time Modulating type 15 sec
