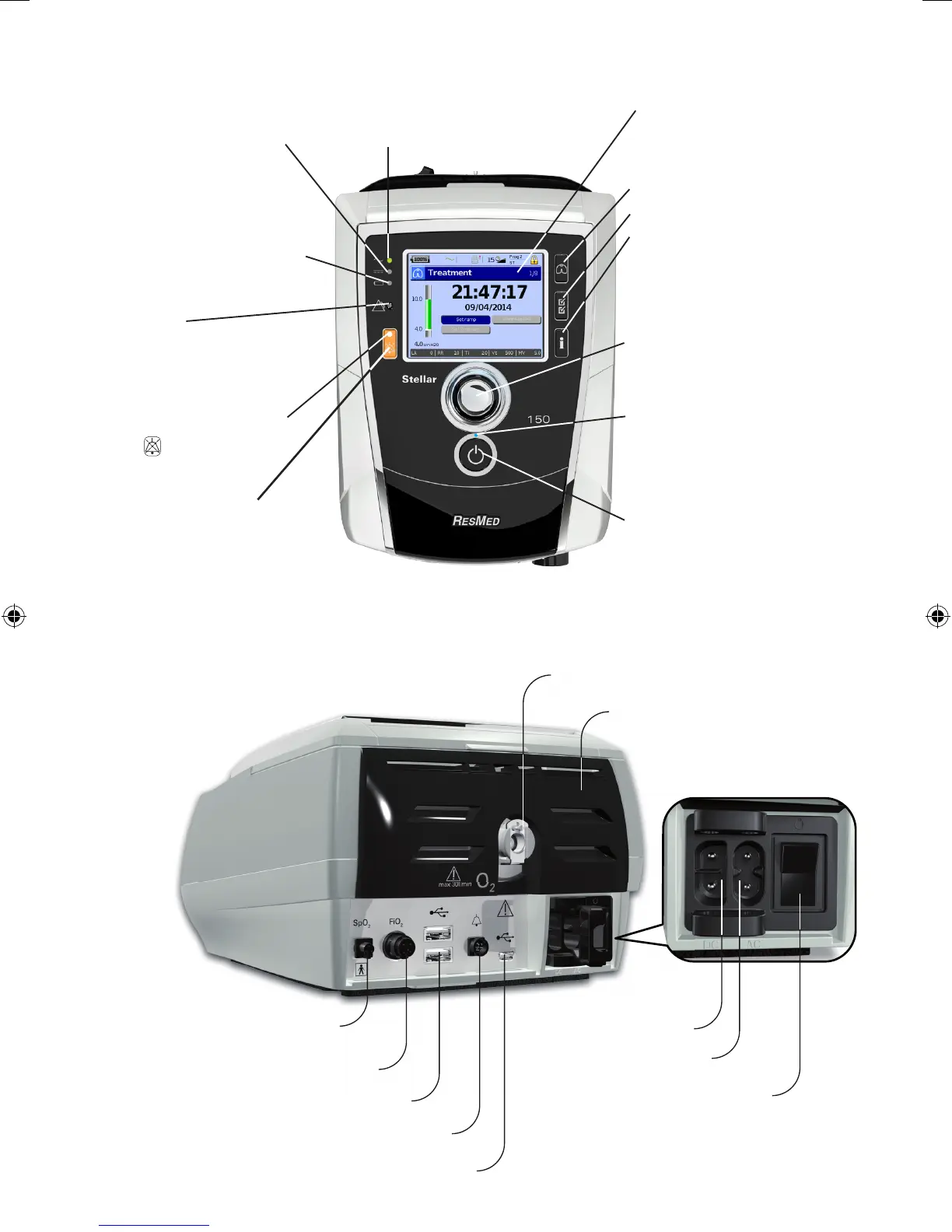

About the control panel
Rear panel
3
Menu button
Navigate through the menus
Monitoring
Setup
Info
Alarm mute button
• Silence the alarm
• Clear the alarm message (low
priority alarms).
Push dial (rotate/click)
• Navigate through settings.
• Change settings’ values.
• Enter and confirm your
selection.
Start/Stop button
• Start/ Stop ventilation
• Start mask-fit (hold down for at
least three seconds).
Mains power LED
On when operating on mains power.
Internal battery LED
On when internal battery is in use.
Flashes when device is turned off
and battery is charging.
External power supply LED
On when external battery is
connected.
Alarm LED
Red or yellow during an alarm
condition or during alarm testing.
Therapy LED
• On during treatment
• Flashes during mask fitting
operation.
LCD screen
Oxygen inlet
XPOD pulse oximeter connection
Air filter cover
DC power socket
AC power socket
Power on/stand-by switch
FiO
2
sensor connection
Data port for USB stick
Data port for direct PC connection
Alarm mute button LED
On when is pressed.
Remote alarm connection
248555r4 Stellar 100 & 150 Quick Setup Guide ROW ENG.indd 4 28.08.2014 16:19:54
