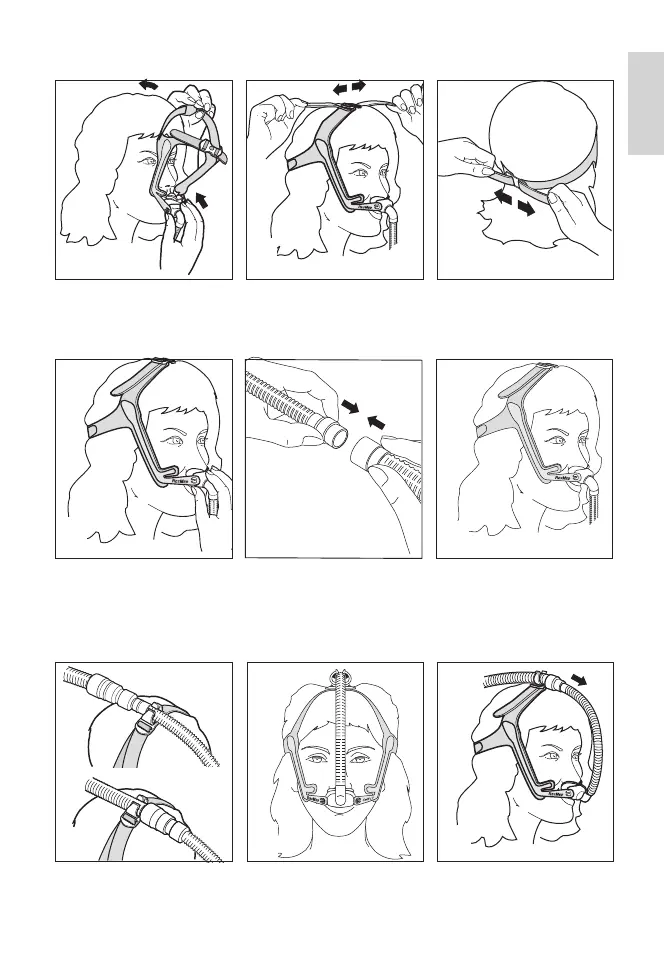

Fitting your Swift LT for Her
1
2
3
(A) Hold the pillows at
your nose; (B) pull the
headgear over your head.
Adjust top straps (over-
tightening may cause
excess pressure on your
nose).
Adjust each end of the
backstrap (overtightening
may cause excess
pressure on upper lip).
4
5
6
Rotate frame to adjust
pillow angle to ensure it
sits comfortably.
Connect the short tube
to the flow generator’s air
tubing.
The Swift LT is now fitted
and ready for use. Head-
gear should sit midway
between ear and eye.
Using the Plastic Tube Retainer (Optional)
1
2
3
Push tube retainer into
buckle. Clip either short
tube or air tubing to tube
retainer.
When using the tube
retainer, the tubing can be
positioned to either side of
your face or centered.
If the mask pulls on your
nose, increase length of
tube between mask and
tube retainer.
Headgear assembly
(headgear, soft wraps
and buckles)
60595
Frame assembly
(frame, short tube assembly)
60581
