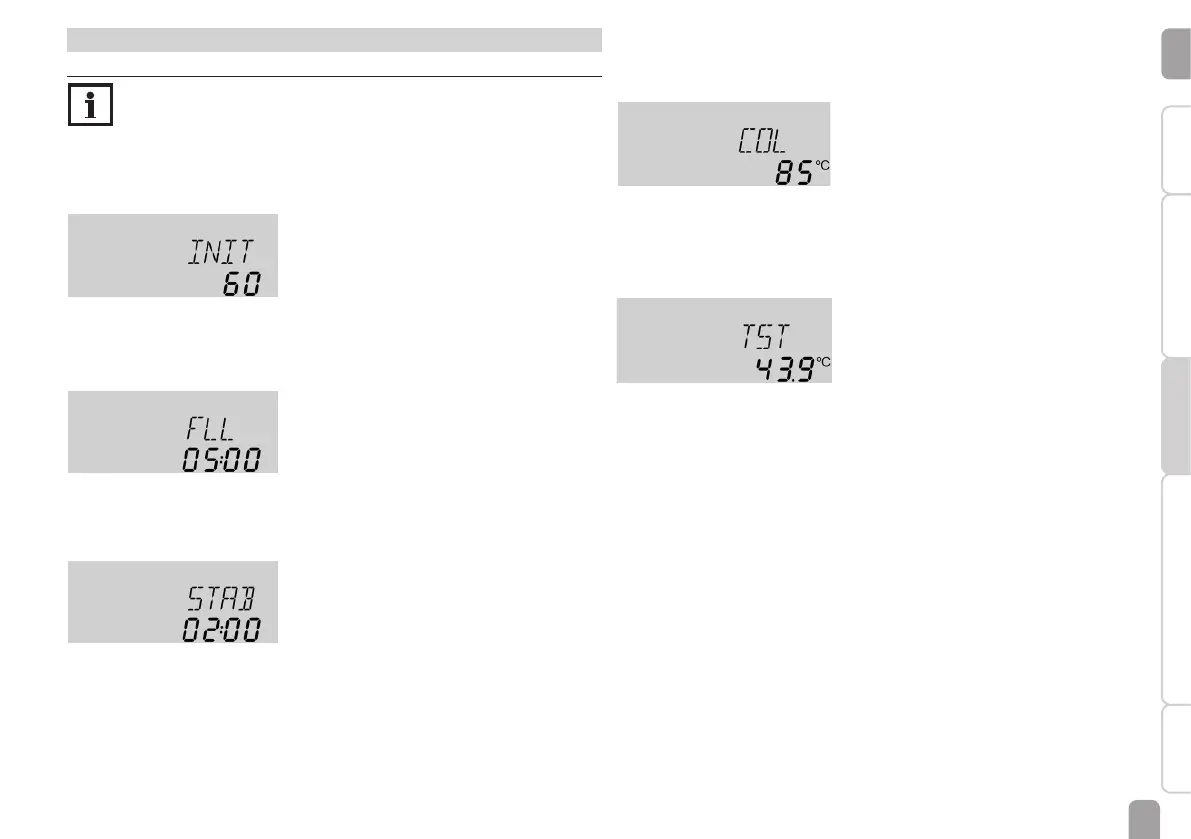

Display of collector temperatures
COL
Collector temperature
Display range: -40 … +260 °C [-40 … +500 °F]
Indicates the collector temperatures.
Display of store temperatures
TST, TSTT
Store temperatures
Display range: -40 … +260 °C [-40 … +500 °F]
Indicates the store temperatures.
• TST : Store temperature (1-store system)
• TSTT : Store temperature top
6 Channel overview
6.1 Display channels
Note
The display and adjustment channels as well as the adjustment ranges de-
pend on the system selected, the functions and options as well as on the
system components connected to the controller.
Display of drainback time periods
Initialisation
INIT
ODB initialisation active
Indicates the time adjusted in tDTO, running backwards.
Filling time
FLL
ODB lling time active
Indicates the time adjusted in tFLL, running backwards.
Stabilisation
STAB
ODB stabilisation in progress
Indicates the time adjusted in tSTB, running backwards.
