INSTALLATION GUIDELINES
Next, install the retractor and shoulder guides into the anchor
points, and tighten them down (See Figure 6). Make sure the
webbing of the seatbelt is tangle free and allows for unobstructed
operation. Finally, test the function and t of the seatbelts.

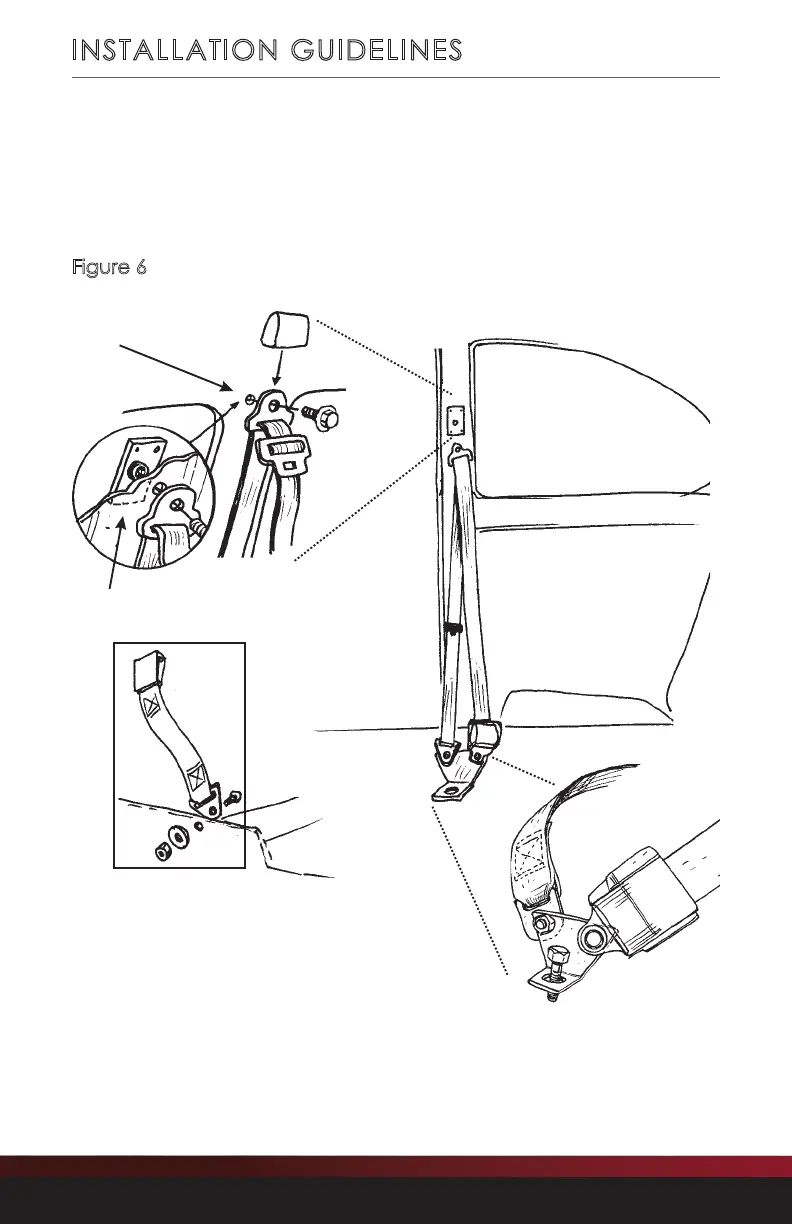

Figure 6
New anchor point
close up
Cutaway of B pillar showing
placement of anchor mount
Belt end mounts to oor
using round anchor mount
installed beneath oor pan
Retractor
Anchor adapter
close up
