Retsch MM400 - General Table of Elements

12/20/2016 15  Retsch GmbH

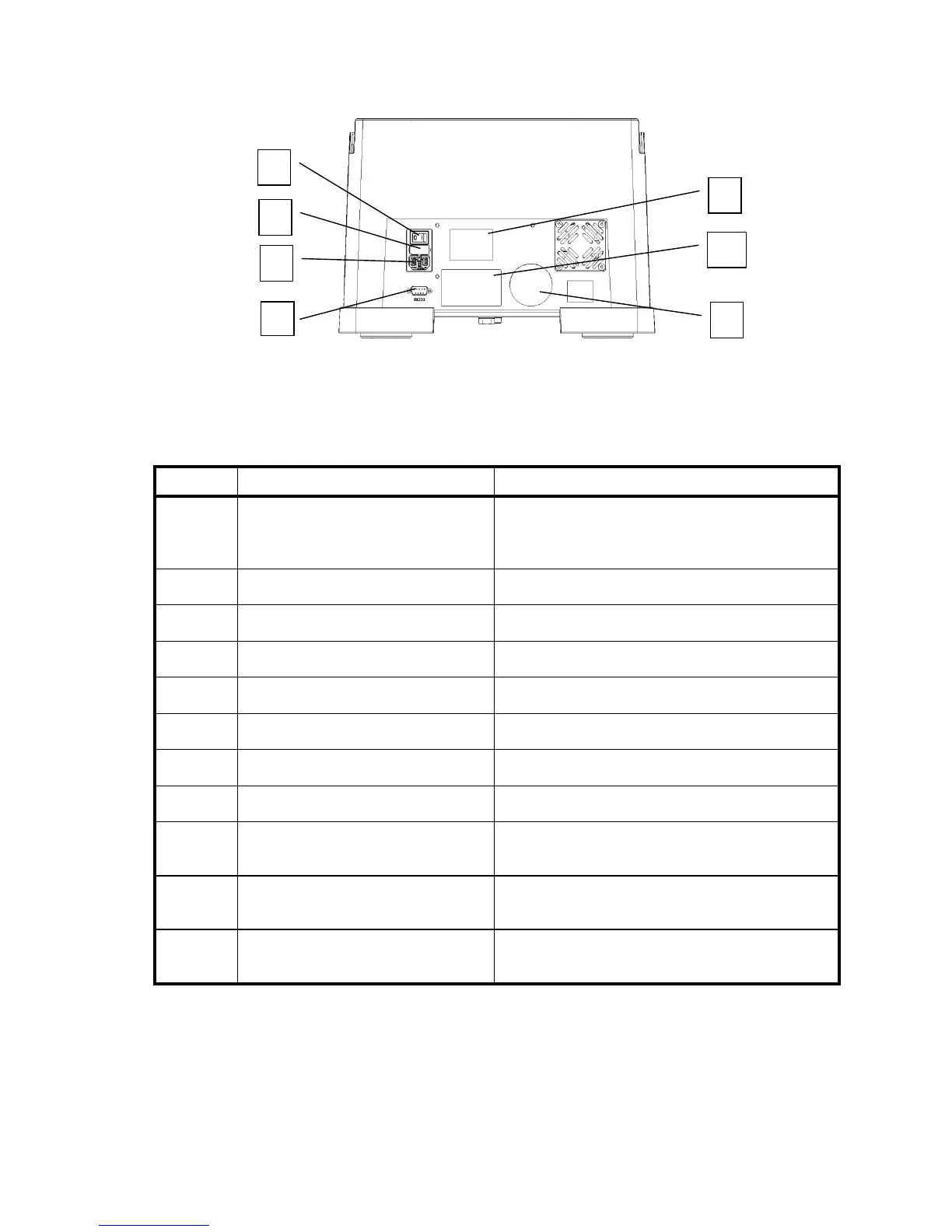

Rear view
General table
Element
Description
Function
A
Display and operating unit: for
explanation see below
Time preselection, frequency preselection,
programme and starting / stopping the
machine
B
Hood
Closes the milling chamber
C
Milling cup holder - left
Holds the milling cup
D
Milling cup holder - right
Holds the milling cup
E
Switch ON / OFF
For switching the MM 400 on and off
F
Fuse compartment
Takes two visible type fuses
G
Machine socket
Connection for power cable of machine
H
Interface RS232
Enables operating software to be updated
I
Sign – Caution! unplug mains
plug
Safety instruction
J
Type plate
Information on the machine and connected
loads
K
Sign – Follow operating
instructions
Safety instruction
J
F
G
K
I
E
H
