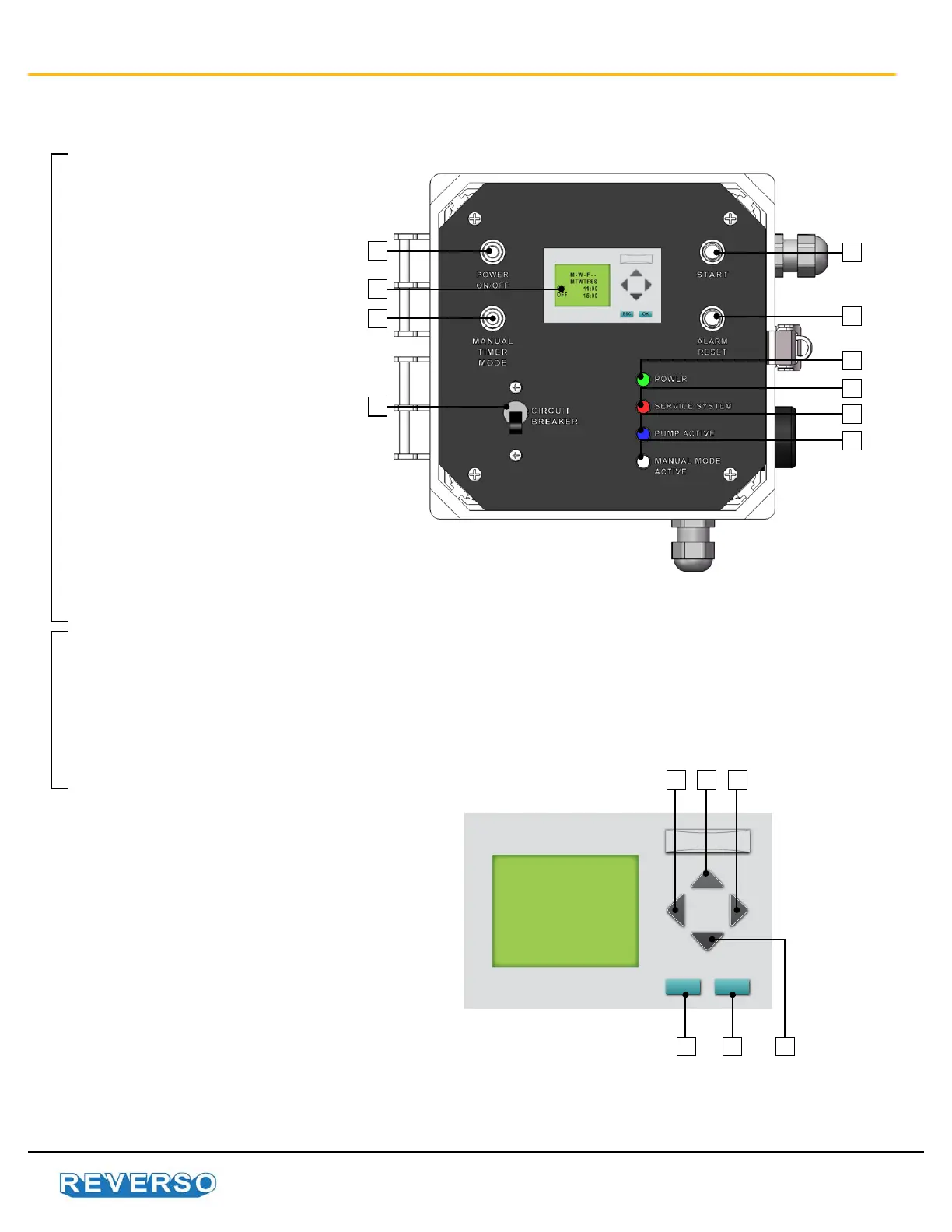

Control Panel Overview
1. Power button
2. Digital timer
3. Manual timer mode button
4. Circuit breaker
5. Start button
6. Alarm reset button
7. Power on light - indicates when
system is on
8. Service system light - indicates
an alarm has been triggered and
user must service the system
9. Pump active light - indicates fuel
polishing system is running
10. Manual timer mode active light
- indicates system is operating
in manual timer mode (not
schedule timer mode)
11. Left key
12. Up key
13. Right key
14. Down key
15. OK key
16. Escape key
Control PanelDigital Timer
1
5
6
7
8
9
10
2
3
4
Control Panel
Digital Timer
ESC OK
M - W - F - -
MTWTFSS
11:00
15:00
ON
OFF
16 15 14
11 12 13

Reverso FPS-210 Specifications

General

Brand	Reverso
Model	FPS-210
Category	Control Unit
Language	English
