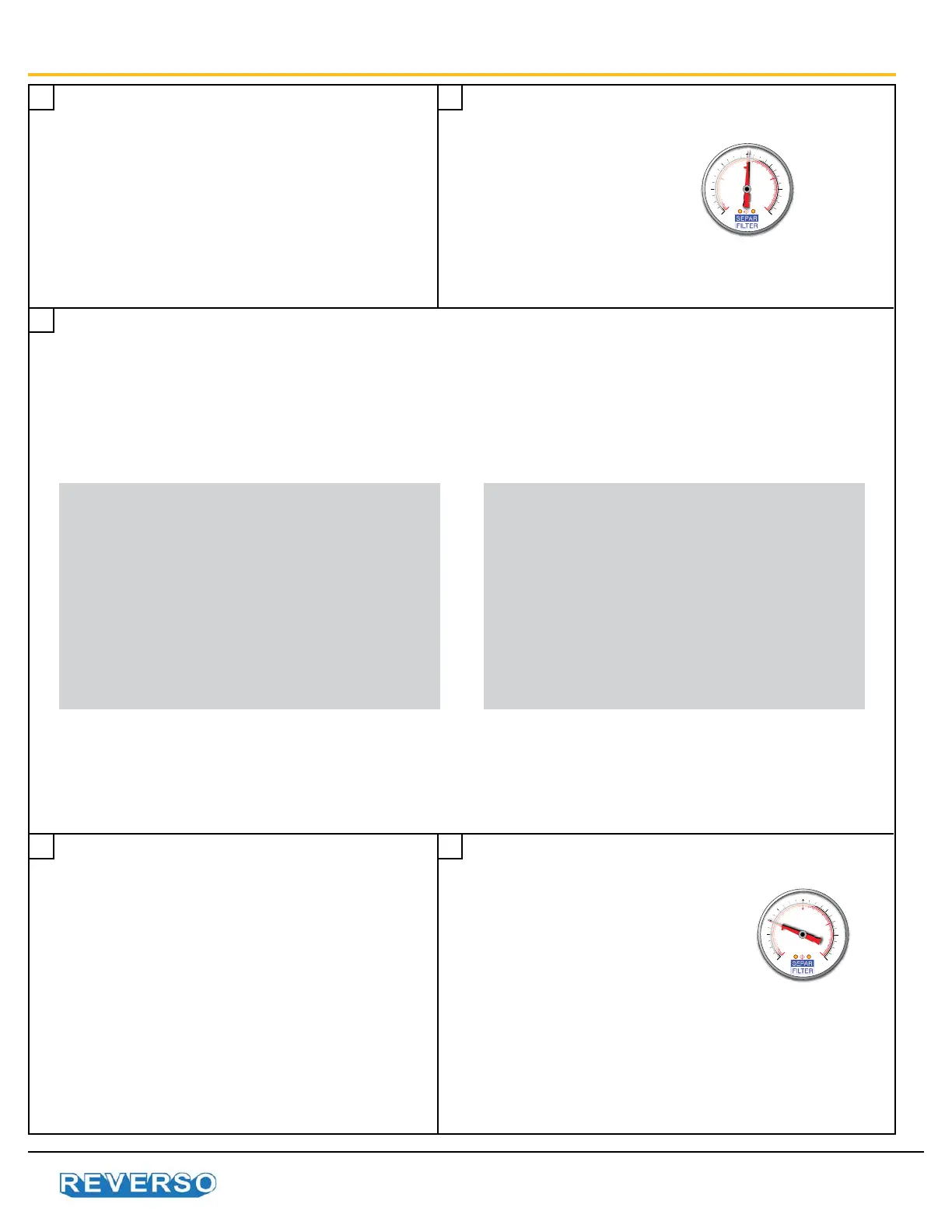

Initial Setup
Open the fuel supply valve.
Prime fuel system and
check for leaks.
in.Hg
psi
Set gauge pressure indicator
(red needle) slightly to the
left of the black needle prior
to operation.
The gauge will indicate
maximum vacuum pressure
during system operation.
Press start button.
Power on indicator will be lit.
If in manual timer mode, pump will immediately
begin running.
If in schedule timer mode, pump will only begin
running if within programmed date/time to run.
Verify the pump is operating by checking vacuum
gauge located on the lter. Gauge will be reading
0-5 in-Hg of vacuum.
• Must press manual timer mode button to
activate / deactivate.
• Manual timer mode light will be ON.
• Pump will start upon pressing the start button.
• Pump will automatically shut off after the
preset run time.
Operate in this mode if system will run one set time.
If the system is equipped with a mechanical timer, turn timer knob clockwise to desired number of hours for operation.
If the system is equipped with a digital timer, choose timer mode if available. You may have previous verison (circular
digital timer).
Operate in this mode if system will start/stop
automatically on the programmed days of the
week and times.
• Must press manual timer mode button to
activate / deactivate.
• Manual timer mode light will be OFF.
• Pump will automatically start and stop
according to the preset date and time.
in.Hg
psi
-10
-20
-30
15
-10
5
0
0
-50
50
-100
100
KPa
When the indicator reaches
15 in-Hg, it is time to drain or
change the lter element.
The same procedure is
necessary if the water level
reaches 30% of the clear bowl.
1 2
3
4 5
Manual Timer Mode Schedule Timer Mode
