Reversomatic RERV-C100ECM - Rerv-C100 Ecm; Rhrv-C100 Pecm

Reference Description
Part no.
RHRV-C100PECM RERV-C100ECM
QTY. QTY.
1
HRV / ERV - lid, Pan Assembly
9315
1 1
2
Polypropylene collar 5" Dia.
014043C
2 2
3
Polypropylene core
9313
1 n/a
Enthalpy Core
9314
n/a 1
4
Filter 7" x 12" ( MERV - 4)
9358
2 2
5
Temperature Sensor
9326
1 1
6
5" Polypropylene Backdraft Damper
014043
2 2
7
ECM Motors
013085
2 2
8
Adjustable Door Latch
9319
1 1
9
Drain Spout Assembly
9320
2 2
10
Core Locking Bracket
9321
1 1
11
Core Locking Nut
014016
1 1
12
Safety Switch 9322
1 1
13
Main control Board (Superior ECM)
9361
-
ECM
1 1
14
Main Control Board Bracket
9355
2 2
15
Door Hinges
9328
1 Set 1 Set
16
Mounting Brackets
011135
4 4
17*
“T” Connector
9330
1 1
18*
Webbing/Brackets/Ladder Locks
9332
2 Sets 2 Sets
19*
Chains/Springs/Brackets
9354
1 Set 1 Set
20* Drain Pipe
9331
1 1
21*
Motorized damper spring return 120V
9362 1 1
22*
Motorized Damper Spring return Built-in
by
Factory
9363 1 1

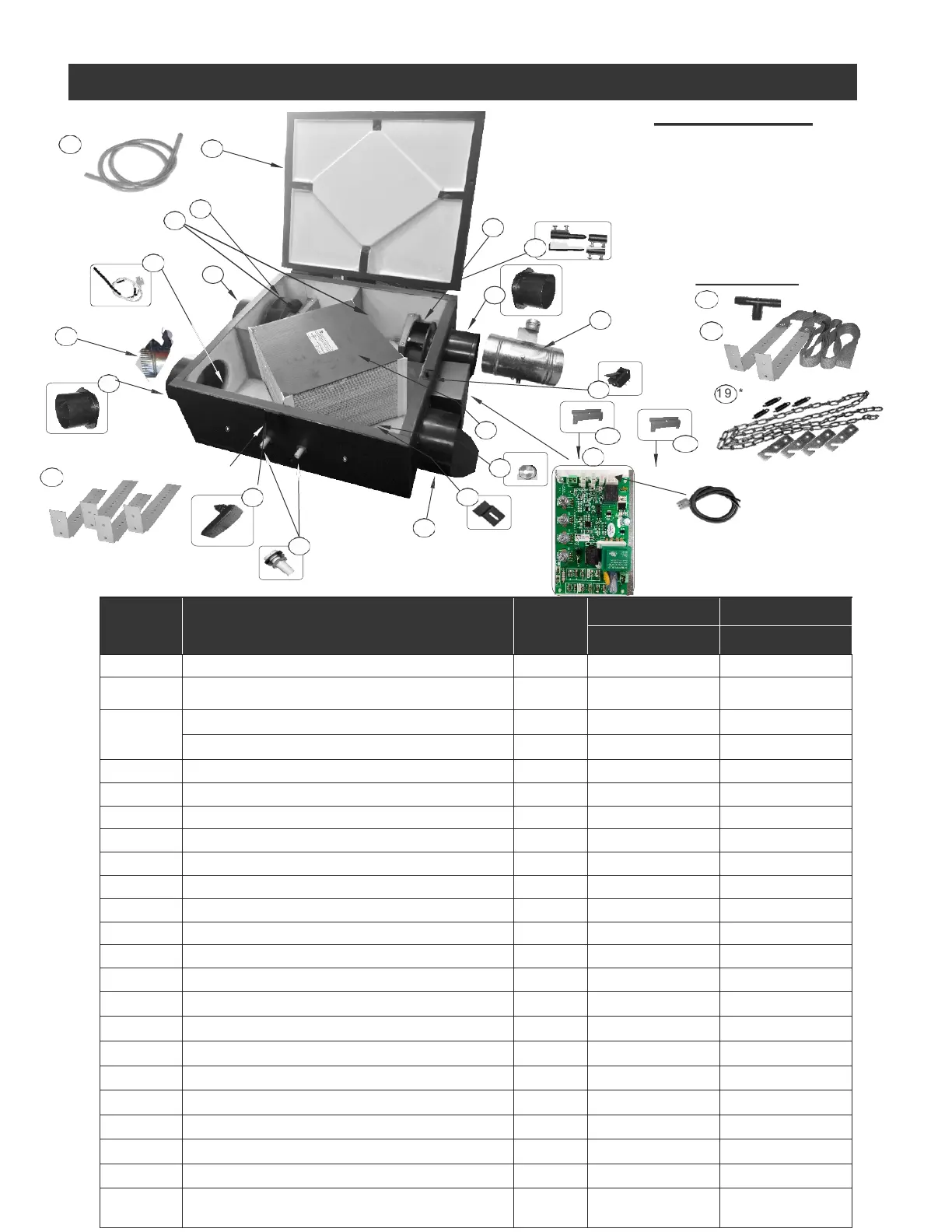

Parts List
1
18 *
1
2
5
2
9
3
10
11
7
12
6
Compact Series
Model:
RHRV-C100PECM
Polypropylene Core
RERV-C100ECM
Enthalpy Core
6
15
7
8
4
14
13
14
*Optional Parts:
17
*
Filter
P/N# 6PIN
6-Pin harness (Provided with
new version to wire timers/ Intermittent
switch & Interlock with Furnace,
Fan coil & Heat pump)
21
*
20 *
1 6
19 *
22
*
