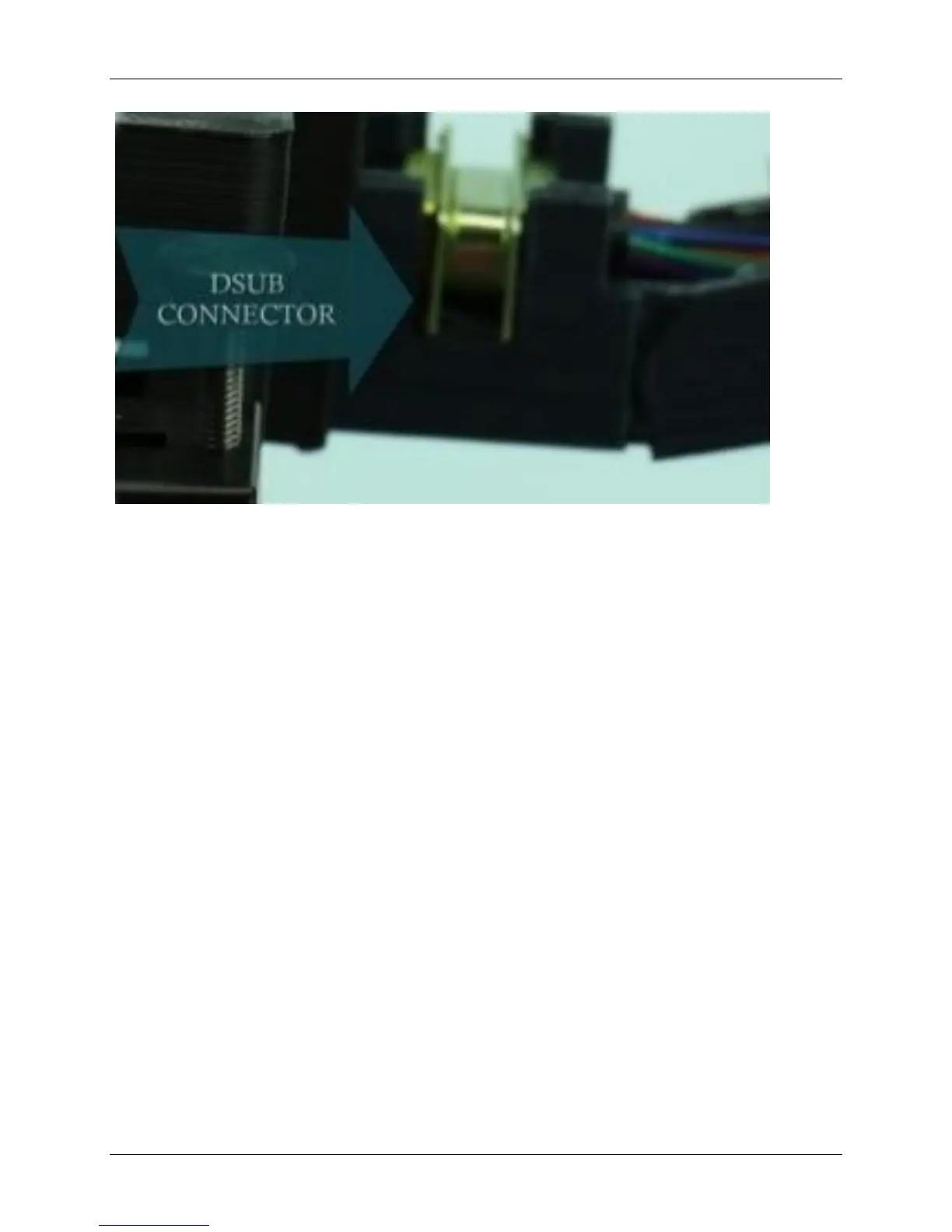

Figure 5 Quick Disconnect Extruder Plug
The Professional Extruder utilises a D-Sub connector located on the rear of the
extruder carriage assembly. This allows for the quick replacement of the extruder
assembly by simply removing three screws and unplugging from printer.
