Revox A77 Service Manual

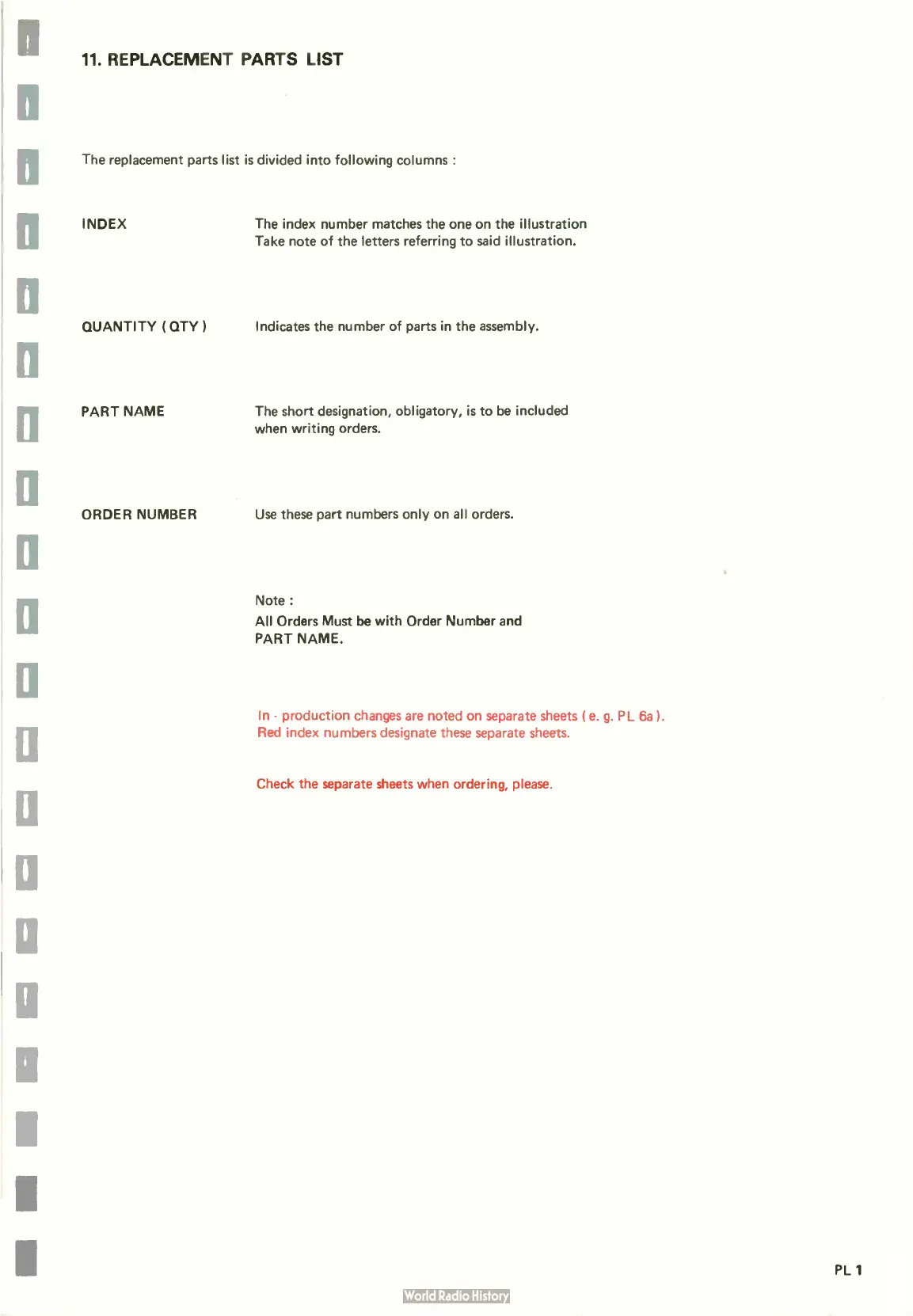

11. REPLACEMENT PARTS LIST
The replacement parts list is divided into following columns :
INDEX The index number matches the one on the illustration
Take note of the letters referring to said illustration.
QUANTITY ( QTY ) Indicates the number of parts in the assembly.
PART NAME The short designation, obligatory, is to be included
when writing orders.
ORDER NUMBER Use these part numbers only on all orders.
Note :
All Orders Must be with Order Number and
PART NAME.
In - production changes are noted on separate sheets I e. g. PL 6a I.
Red index numbers designate these separate sheets.
Check the separate sheets when ordering, please.
PL 1

Revox A77 Specifications

General

Wow and Flutter	0.08% (7 1⁄2 ips)
Frequency Response	30Hz to 20kHz (7 1⁄2 ips)
Signal to Noise Ratio	60dB
Type	Reel-to-Reel Tape Deck
Track System	4-track, 2-channel stereo/monaural
Reel Size	Up to 10.5 inch reel
Motor	2 x reel, 1 x capstan
Inputs	Mic, Line
Outputs	Line
Tape Speed	3 3⁄4 and 7 1⁄2 ips
