Revox A77 Service Manual

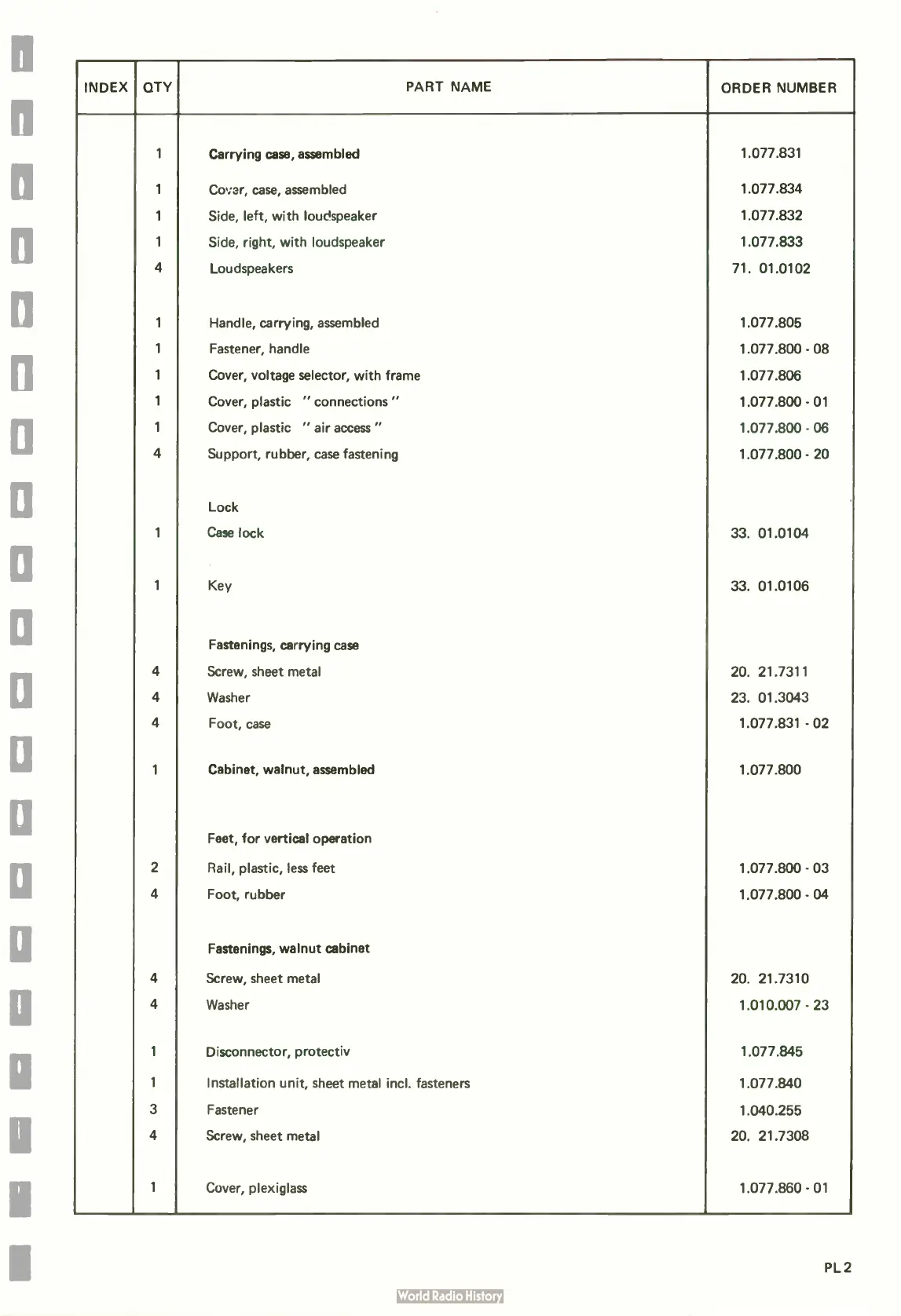

INDEX
QTY
PART NAME
ORDER NUMBER
1
Carrying case, assembled
1.077.831
1
Covar, case, assembled
1.077.834
1
Side, left, with loudspeaker
1.077.832
1
Side, right, with loudspeaker
1.077.833
4
Loudspeakers
71. 01.0102
1
Handle, carrying, assembled 1.077.805
1
Fastener, handle 1.077.800 - 08
1
Cover, voltage selector, with frame
1.077.806
1
Cover, plastic " connections "
1.077.800 - 01
1
Cover, plastic " air access"
1.077.800 - 06
4
Support, rubber, case fastening
1.077.800 - 20
Lock
1 Case lock
33. 01.0104
1 Key
33. 01.0106
Fastenings, carrying case
4
Screw, sheet metal
20. 21.7311
4
Washer
23. 01.3043
4
Foot, case 1.077.831 - 02
1
Cabinet, walnut, assembled
1.077.800
Feet, for vertical operation
2
Rail, plastic, less feet
1.077.800 - 03
4
Foot, rubber 1.077.800 - 04
Fastenings, walnut cabinet
4
Screw, sheet metal
20. 21.7310
4
Washer
1.010.007 - 23
1
Disconnector, protectiv
1.077.845
1
Installation unit, sheet metal incl. fasteners
1.077.840
3
Fastener
1.040.255
4
Screw, sheet metal 20. 21.7308
1
Cover, plexiglass
1.077.860 - 01
PL 2

Revox A77 Specifications

General

Wow and Flutter	0.08% (7 1⁄2 ips)
Frequency Response	30Hz to 20kHz (7 1⁄2 ips)
Signal to Noise Ratio	60dB
Type	Reel-to-Reel Tape Deck
Track System	4-track, 2-channel stereo/monaural
Reel Size	Up to 10.5 inch reel
Motor	2 x reel, 1 x capstan
Inputs	Mic, Line
Outputs	Line
Tape Speed	3 3⁄4 and 7 1⁄2 ips
