Revox B215 User Manual

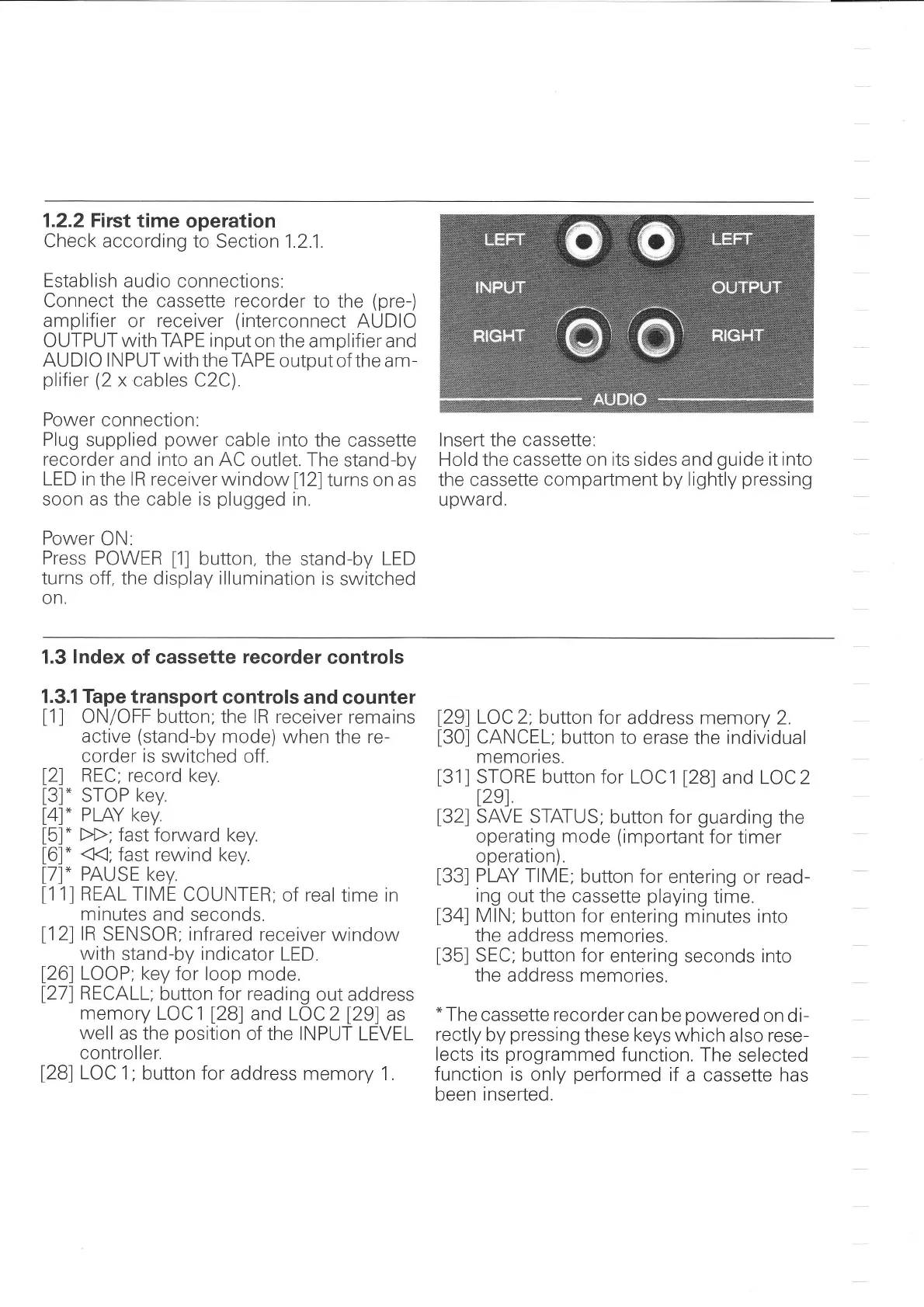

1.2.2 First time
operation
Check according
to Section 1.2.1.
Establ ish
audio connections:
Connect the cassette recorder
to the
(pre-)
amplifier
or
receiver
(interconnect
AUDIO
OUTPUT
with
TAPE
input
on
the amplifier and
AUDIO
lNPUTwith theTAPE
outputof the am-
plifier
(2
x cables
C2C).
Power
connection.
Plug
supplied
power
cable into
the cassette
recorder
and into an AC
outlet. The
stand-by
LED in
the lR
receiverwindow
[12]turns
on as
soon as the cable is
plugged
in.
Power
ON:
Press
POWER
[1]
button. the
stand-by
LED
turns off, the
display
illumination
is
switched
on.
lnsert the cassette:
Hold the cassette on
its
sides and
guide
it into
the cassette
compartment
by
lightly
pressing
upward.
1.3 lndex of cassette
recorder
controls
1.3.1
Tape
transport
controls
and counter
t1l
ON/Off button; the lR receiver
remains
active
(stand-by
mode)
when
the
re-
corder is
switched
off.
l2l
REC; record
key.
l3l"
STOP
key.
[4]"
PLAY key
[5]"
trtr; fast
forward key.
[6]"
ff;
fast rewind
key.
[7]"
PAUSE key.
[1
1] REAL TIME
COUNTER;
of
real
time in
minutes
and
seconds.
l12l
lR
SENSOR;
infrared
receiver
window
with
stand-by
indicator
LED
[26]
LOOP; key
for loop mode.
127)
RECALL;
button
for reading
out
address
memory
LOCl
[28]
and
LOC2
[29]
as
well
as
the
position
of
the INPUT LEVEL
controller.
t28l
LOC
1;
button
for
address
memory 1.
t29l
LOC 2; button for
address memory
2.
[30]
CANCEL;
button to
erase the individual
memofles.
[31]
STORE button for
LOC 1
l2B)
and LOC 2
l2el
[32]
SAVE STATUS;
button
for
guarding
the
operating mode
(imporlant
for
timer
operation).
[33]
PLAY TIME;
button
for entering
or
read-
- -
ing
out
the
cassette
playing
tiäe.
[34]
MIN;
button for
entering minutes
into
the address memories.
[35]
SEC; button for
entering
seconds
into
the address memories.
*
The
cassette
recorder
can
be
powered
on di-
rectly
by
pressing
these keys which
also rese-
lects its
programmed
function. The
selected
function is
only
performed
if
a cassette has
been inserted.

Revox B215 Specifications

General

Track System	4-track, 2-channel stereo
Tape Speed	4.76 cm/s
Heads	3 (erase, record, playback)
Signal to Noise Ratio	72dB (Dolby C)
Total Harmonic Distortion	0.8%
Type	Cassette Deck
Frequency Response	20Hz to 20kHz
Tape Type	Type I, Metal
Outputs	Line
