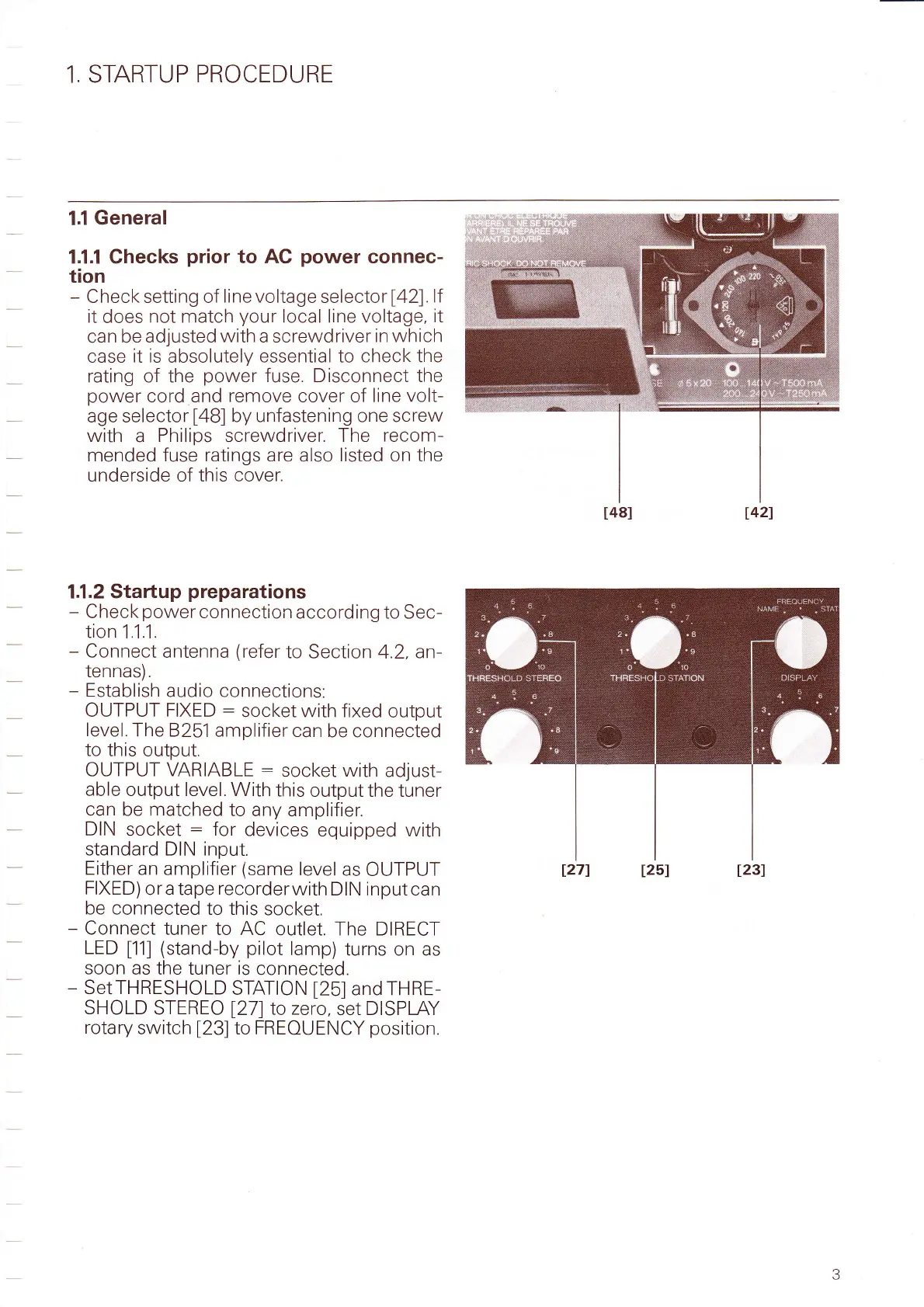

Revox B261 Operating Instructions

1 STARTUP
PROCEDURE
1.1
General
1.1.1 Checks
prior
to AC
power
connec-
tion
-
Check setting of
line voltage
selector
l42l.lt
it
does
not match
your
local line voltage,
it
can be
adjusted with a
screwdriver
in which
case
it is
absolutely essential to
check the
rating of the
power
fuse. Disconnect the
power
cord
and
remove
cover of
line volt-
age selector
[48]
by unfastening one screw
with
a
Philips
screwdriver.
The
recom-
mended
fuse ratings are
also
listed on the
underside of this cover.
1.1.2 Startup
preparations
-
Check
power
connection
according to
Sec-
tion
1.1.1.
-
Connect antenna
(refer
to
Section 4.2,
an-
tennas).
-
Establish
audio connections:
OUTPUT
FIXED
:
socket with fixed
output
level.
The 8251
amplifier can
be connected
to
this output.
OUTPUT
VARIABLE
:
socket
with
adjust-
able output level With
this
output the tuner
can be matched
to any
amplifier.
DIN
socket
:
for
devices
equipped with
standard DIN input.
Either
an amplifier
(same
level
as
OUTPUT
FIXED)
ora tape
recorderwith
DIN inputcan
be connected
to this
socket.
-
Connect
tuner to AC
outlet. The DIRECT
LED
[11]
(stand-by
pilot
lamp)
turns on as
soon as the tuner is
connected.
-
SeTTHRESHOLD
STATION
t25l
and THRE-
SHOLD
STEREO
l27l
to
zero,
set
DISPLAY
rotary
switch
[23]
to FREOUENCY
position.
