S]TIJDtrR rrEVOX
PR99 REPRODUCE ONLY
sEcTtoN 2/2*
2.2
I nterface
-Stec
ker
2.2
Interface
connector
2.2
Prise d'interface
I13
aoooooooooooo
oooaoooooooa
25
't4

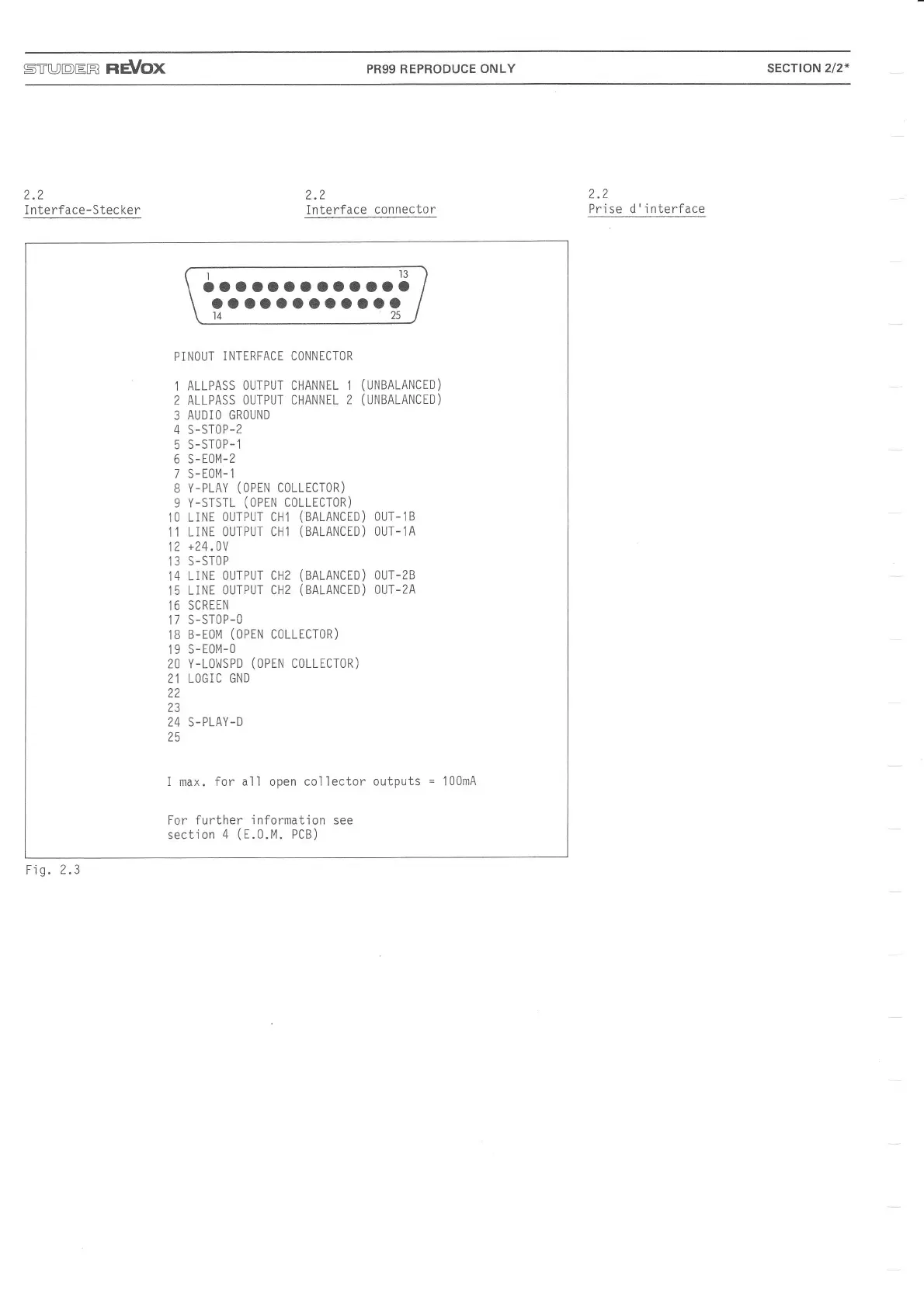

PINOUT
INTERFACE CONNECTOR
1
ALLPASS
OUTPUT CHANNEL 1
(UNBALANCED)
2
ALLPASS
OUTPUT CHANNEL
2
(UNBALANCED)
3 AUDIO
GROUND
4 S-STOP-2
5
S-STOP-1
6
S-E0M-2
7
S-EoM-1
B Y-PLAY
(OPEN
COLLECTOR)
9 Y-STSTL
(OPEN
COLLECTOR)
1O
LINE
OUTPUT CHl
(BALANCED)
OUT-1B
11
LINE
OUTPUT CH1
(BALANCED)
OUT-1A
12
+24,0Y
13
S-ST0P
14
LINE
OUTPUT CHz
(BALANCED)
OUT-28
15
LINE
OUTPUT CHz
(BALANCED)
OUT-2A
16
SCREEN
17
S-STOP-O
1B
B-EoM
(oPEN
COLLECTOR)
19
S-E0M-0
2O
Y-LOWSPD
(OPEN
COLLECTOR)
21
LOGIC GND
22
23
24 S-PLAY-D
25
I
max.
for all open collector
outputs
=
100m4
For further information
see
section
4
(E.0.M.
PCB)
Fi
9.
2.3

Revox PR99 Specifications

General

Heads	3 (Erase, Record, Playback)
Equalization	NAB, CCIR
Motor	3
Reel Size	Up to 10.5 inch
Frequency Response	30Hz to 20kHz
Wow and Flutter	0.08% (at 19 cm/s)
Output	XLR, RCA
Track Configuration	2-track
Inputs	XLR, RCA
Outputs	XLR, RCA
Tape Speed	3.75, 7.5 ips
