Revox PR99 User Manual

sTTUDtrR
REVOX
PR99
REPRODUCE ONLY
SECTION
2/1
2.
2.
2.
E.O.M. INTERFACE UND INTERFACE-STECKER
E.M.O.
INTERFACE AND INTERFACE CONNEC- E.O.M.
INTERFACE ET PR]SE D'INTERFACE
TOR
2.1 2.1 2.1

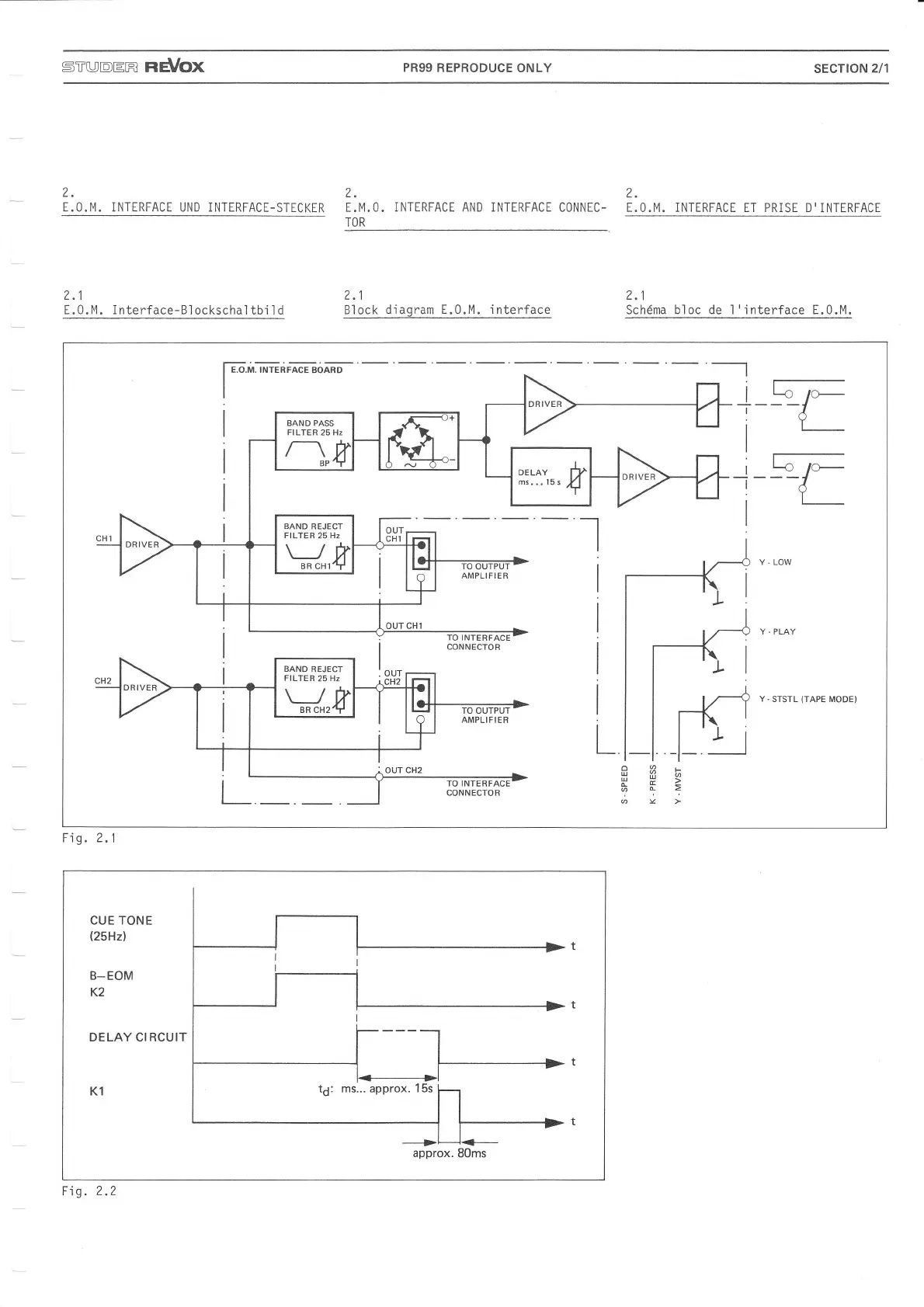

E.0.M. Interface-Blockschaltbild Block
diagram E.0.M.
interface Schdma bloc de l'interface E.0.M.
I
eo.ü. NrE-iFAcE
Boano
Fr.-
--{_
T
Y. LOW
Y. PLAY
Y
-
STSTL
(TAPE
MODE)
AMPLI F I ER
TO INTERFACE
CONNECTOR
*i
Fig.2.1
CUE TONE
l25Hzl
B-EOM
K2
DELAY CI RCUIT
K1
ms...
approx.
15s
approx.
80ms
Fig.2.2

Revox PR99 Specifications

General

Heads	3 (Erase, Record, Playback)
Equalization	NAB, CCIR
Motor	3
Reel Size	Up to 10.5 inch
Frequency Response	30Hz to 20kHz
Wow and Flutter	0.08% (at 19 cm/s)
Output	XLR, RCA
Track Configuration	2-track
Inputs	XLR, RCA
Outputs	XLR, RCA
Tape Speed	3.75, 7.5 ips
