sruotrR neVox
PR99 REPRODUCE
ONLY
sEcrtoN 3/6*
3.3.
1
Einstellen des Reglers E.0.M.
STOP
DE-
LAY TIME
(auf
der
Frontplatte)
Nach
jedem
25Hz-Impuls
wird auf
dem
E.0.M. Interface
ein
Timer
gestartet
dessen Laufzeit
mit dem
Regler DELAY
TIME
im Bereich von wenigen
ms bis
ca. 15s variiert
werden
kann.
Nach
Ablauf der eingestellten
Zeit-
spanne zieht ein
Relais
an und schal-
tet für ca. 80ms
vom
Ruhekontakt
(Pins
17l5 auf
dem 25-pol
igen Inter-
face Connector)
um auf
den
Arbeits-
kontakt
(Pins
17/4
auf
dem Inter-
face Connector).
3.3.
1
Adjusting
the
potentiometer
E.0.M. ST0P
DELAY
TIME
(on
the front
panel
)
After
every
25Hz signal
burst, a
timer
is started
on the
interface
board.
Its
delay time can
be adiusted
in the
range of
a
few ms up to
aPProx.
15s
by means
of the
potmeter
DELAY TIME.
After
this
time has run
out, a
relay
contact
closes
for approx.
B0ms
and
the
rest contact
(pins
1715 on
the
25-po1e
interface connector)
sw'itches
to
the operating
contact
(pins'17/4
on
the interface
connector)
for
these
BOms.
3.3.
1
Rdglage du
potentiomötre
E.0.M. ST0P
qELAY
TIME
(partie
fronta]eduPR99)
Aprös chaque bloc
d'impulsions
de 25Hz
un compteur est
lancd sur
l'interface
E,0.M., son temps
d'operation
peut
€tre vari6 ä
l'aide du
potentiomÖtre
DELAY
TIME entre
quelques
millisecon-
des
et environ
15 secondes.
Aprös
ce
temps un contact
relais ferne
pour
environ B0 millisecondes
(pin
17 sur
1a
prise
interface
est
raccordd au
pi
n
4
pour
ses B0
mi 1 1 i sceondes
,
quand
1 e contact
rel ai s s
'ouvre
pi
n
17 est
raccordd au
pin
5).

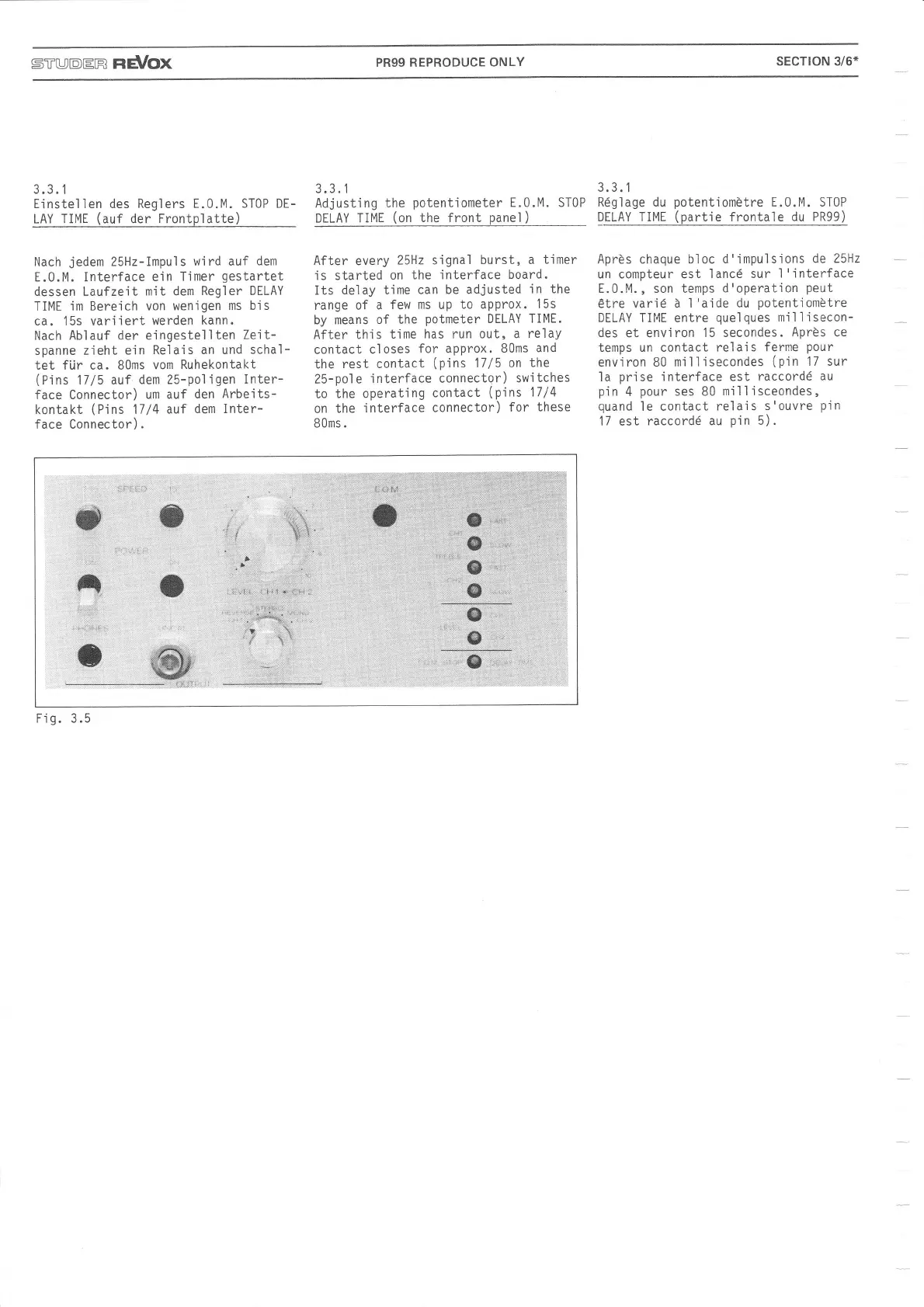

Fi
g.
3.5
