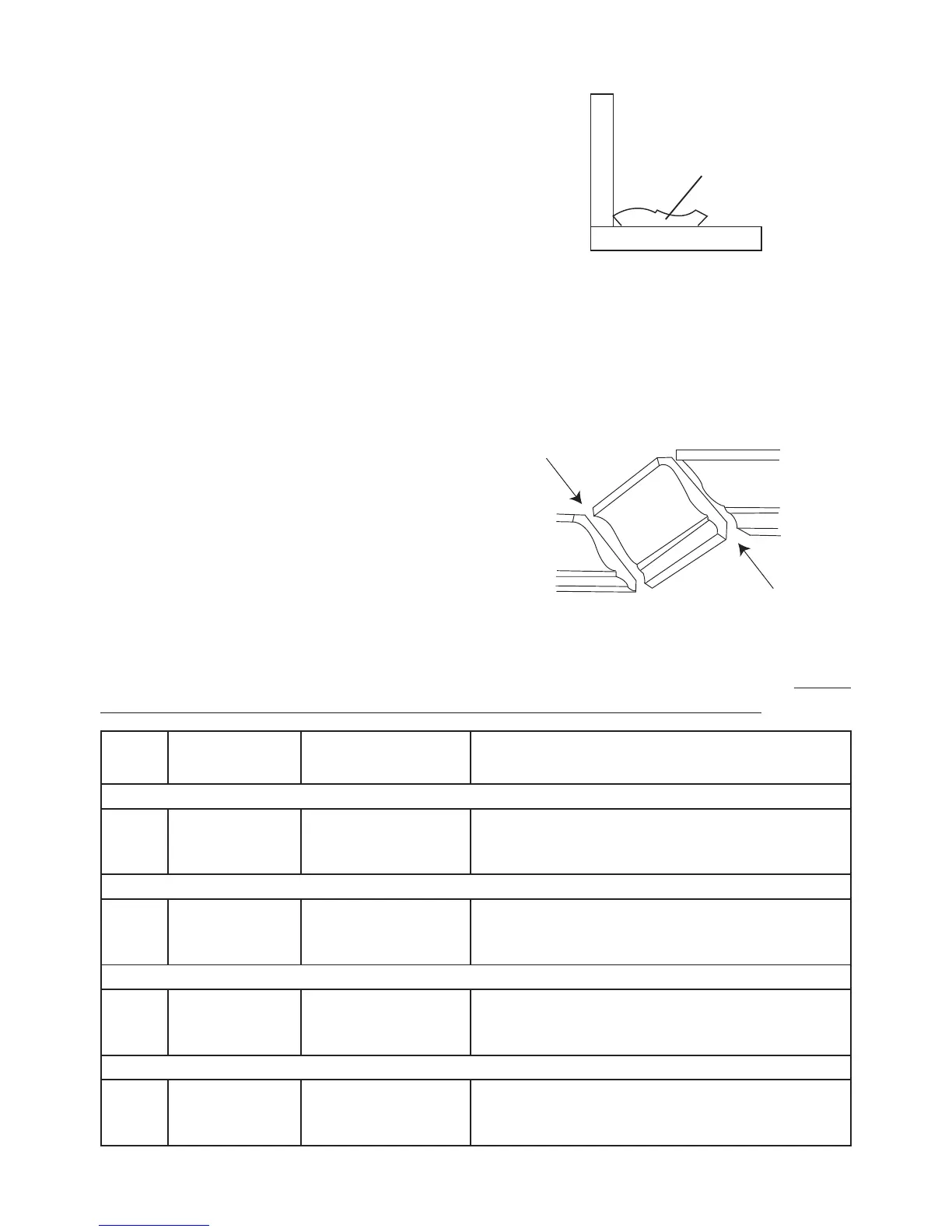

Fig. NN
Bevel/Miter Settings
Fig. OO
Settings for standard crown molding
lying flat on compound miter saw
table
Cutting crown molding
(Fig. NN, OO):
Your compound miter saw is suited
for the difficult task of cutting crown
molding. To fit properly, crown molding
must be cut with extreme accuracy.
The two surfaces on a piece of crown
molding that fit flat against the ceiling
and wall are at angles that, when
added together equal exactly 90°.
In order to accurately cut crown
molding for a 90° inside or outside
corner, lay the molding with its broad
back surface flat on the saw table.
When setting the bevel and miter angles
for compound miters, remember that the
settings are interdependent; changing
one changes the other, as well.
IL
EI
ED
ID
Outside Corner
Inside Corner
Workpiece
Miter Saw Table
F
e
n
c
e
NOTE: The chart below references a compound cut for crown molding ONLY
WHEN THE ANGLE BETWEEN THE WALLS EQUALS EXACTLY 90°.
KEY
BEVEL
SETTING
MITER SETTING TYPE OF CUT
Inside corner - Left side
IL 33.9° 31.6° Right
1. Position top of molding against fence.
2. Miter table set at RIGHT 31.6°.
3. LEFT side is finished piece.
Inside corner - Right side
IR 33.9° 31.6° Left
1. Position bottom of molding against fence.
2. Miter table set at LEFT 31.6°.
3. LEFT side is finished piece.
Outside corner - Left side
OL 33.9° 31.6° Left
1. Position bottom of molding against fence.
2. Miter table set at LEFT 31.6°.
3. RIGHT side is finished piece.
Outside corner - Right side
OR 33.9° 31.6° Right
1. Position top of molding against fence.
2. Miter table set at RIGHT 31.6°.
3. RIGHT side is finished piece.
