REXON M2507R - Parts List and Schematic for Motor

38 39
38 39
10 IN. (254 MM) MiterMate
TM
COMPOUND MITER SAW

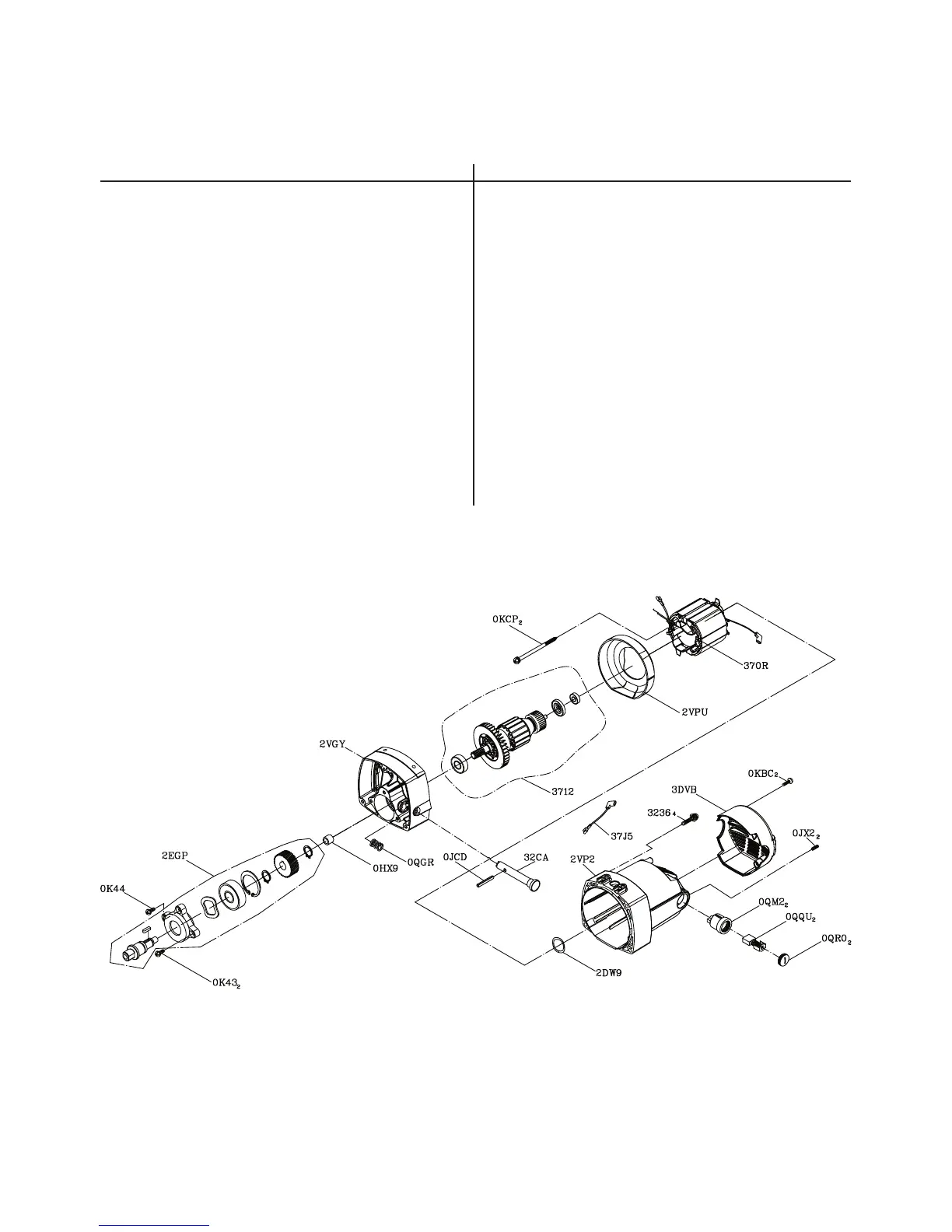

PARTS LIST AND SCHEMATIC FOR MOTOR
I.D. Description Size Q’ty I.D. Description Size Q’ty
0QGR COMPRESSION SPRING 1 3236 CR. RE. PAN HD. SCREW & WASHER M6*1.0-55 4
0QR0 BRUSH COVER 2 3712 ARMATURE ASS’Y 1
32CA BRACKET STOP ASS’Y 1 37J5 LEAD WIRE ASS’Y 1
0HX9 NEEDLE BEARING 1 2EGP CUTTER SHAFT ASS’Y 1
2DW9 WAVE WASHER 1 2VP2 MOTOR COVER 1
0JCD SPRING PIN 1 370R FIELD ASS’Y 1
0JX2 HEX. SOC. SET SCREW M5*0.8-6 2 2VGY GEAR BOX 1
0K43 CR. RE. PAN HD. SCREW & WASHER M5*0.8-16 2 2VPU FLOW GUIDE 1
0K44 CR. RE. PAN HD. SCREW & WASHER M5*0.8-12 1 3DVB MOTOR REAR COVER 1
0KBC CR. RE. PAN HD. TAPPING SCREW M5*16-25 2 0QM2 BRUSH HOLDER ASS’Y 2
0KCP
CR. RE. PAN HD. TAPPING &
WASHER SCREW
M5*12-60 2 0QQU CARBON BRUSH ASS’Y 2
