Radial piston motor for compact drives | MCR-C

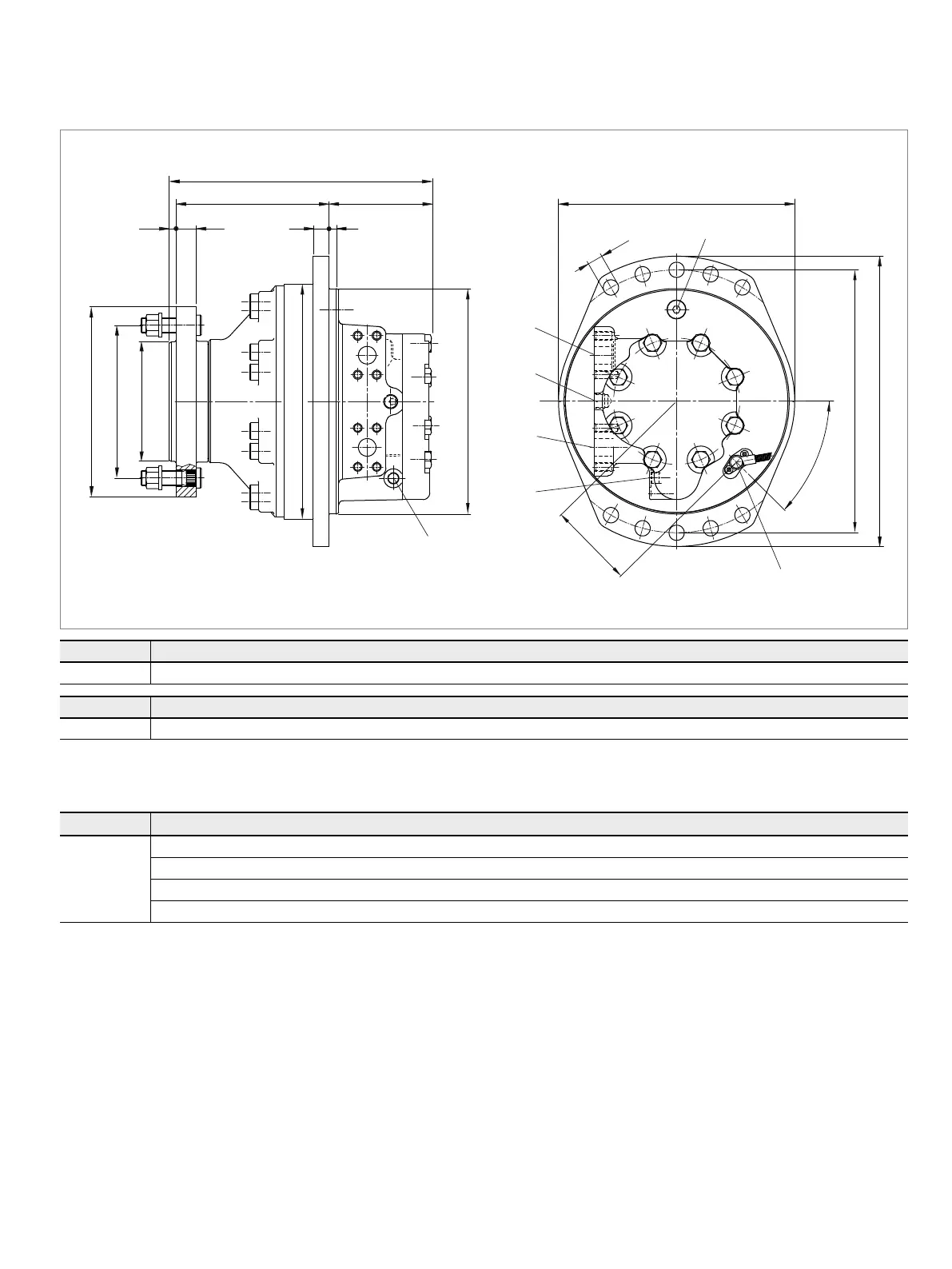

Dimensions
11
Dimensions [mm]
MCR-C two speed (2WL)
A
B
F
X
L
X
D6
L1
L3
S1
S2
L2
D1
D2 D3
D8
L4
L5
L6
L7
D4
D9
D7
D5
Speed sensor
MotorD1D2D3D4D5D6D7D8D9
MCR20 ø280 ø225 ø175.8 ø345 ø330 ø385 ø22.5 ø425 ø345
MotorL1L2L3L4L5L6L7S1S2
MCR20 386.65 225 151.65 10 30 23 11 125 45°
Before fi nalizing your design, request a binding installation drawing.
Ports
Motor Designation Port function Code Size
p
max
[bar]
State
2)
MCR20 A, B Inlet, outlet SAE J518
3)
1 in 470/420
1)
O
L Case drain SAE J514 3/4-16 UNF 10 O
F Filler port SAE J514 3/4-16 UNF 10 X
X 2 speed port SAE J514 9/16-18 UNF 35 O
1) Depends on nominal size
2) O = Must be connected (plugged on delivery)
X = Plugged (in normal operation)
3) Dimensions according to SAE J518 (Code 62 - high pressure series)
