12 MCR-C | Radial piston motor for compact drives

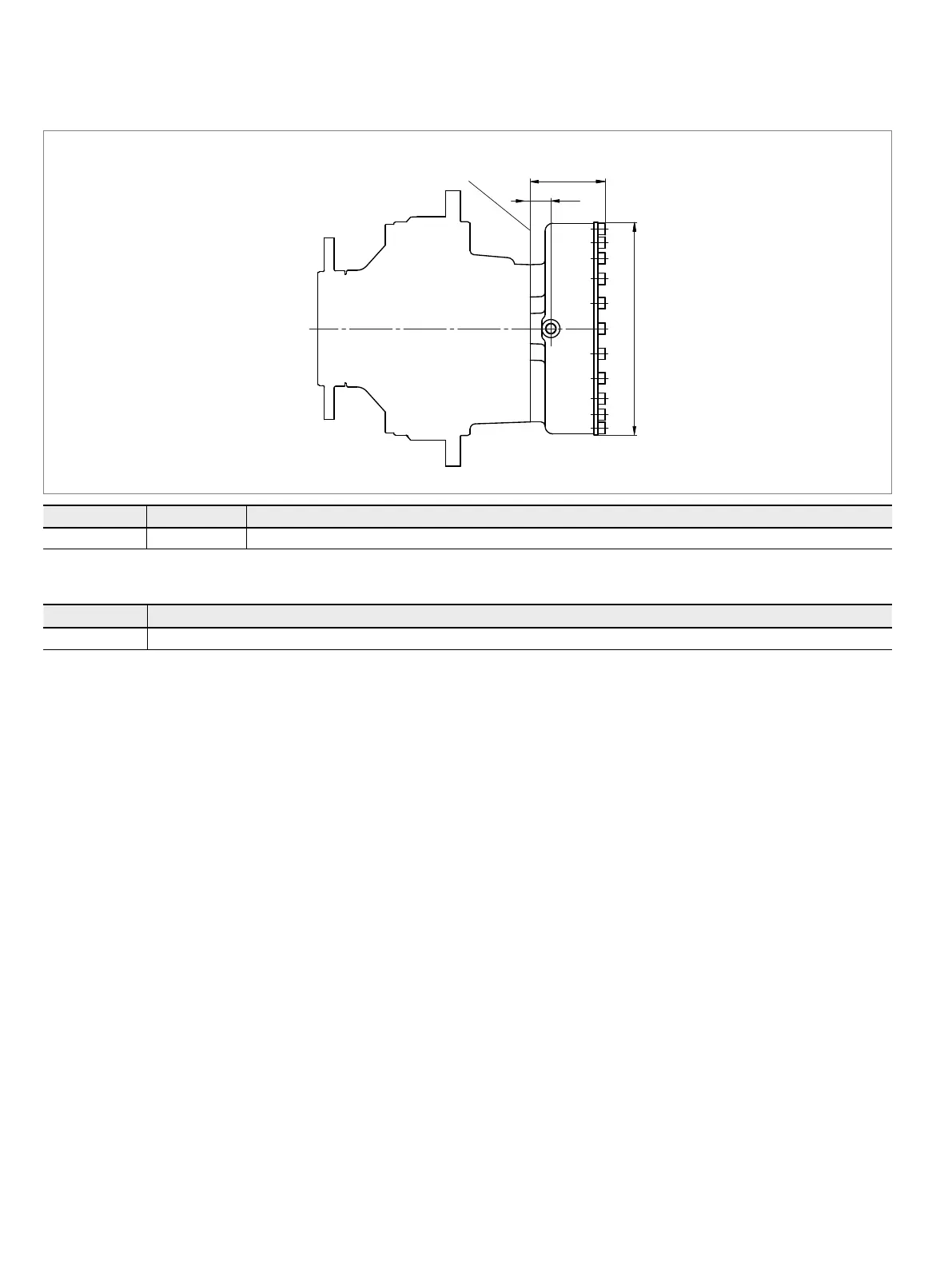

Dimensions
Dimensions [mm]
Bosch Rexroth AG, RE 15197/02.2017
12 MCR-C | Radial piston motor for compact drives
Dimensions
Holding brake (multi-disc brake)
L8
L9
D10
Z
Reference brake interface
Motor Brake L8 L9 D10
MCR20 B19 116.3
32 ø328
Ports
Motor Designation Port function Code Size
p
max
[bar]
State
1)
MCR20 Z Brake Port SAE J515 9/16-18 SAE 30 O
1) O = Must be connected (plugged on delivery) Before fi nalizing your design, request a binding installation drawing.
Housing type C
