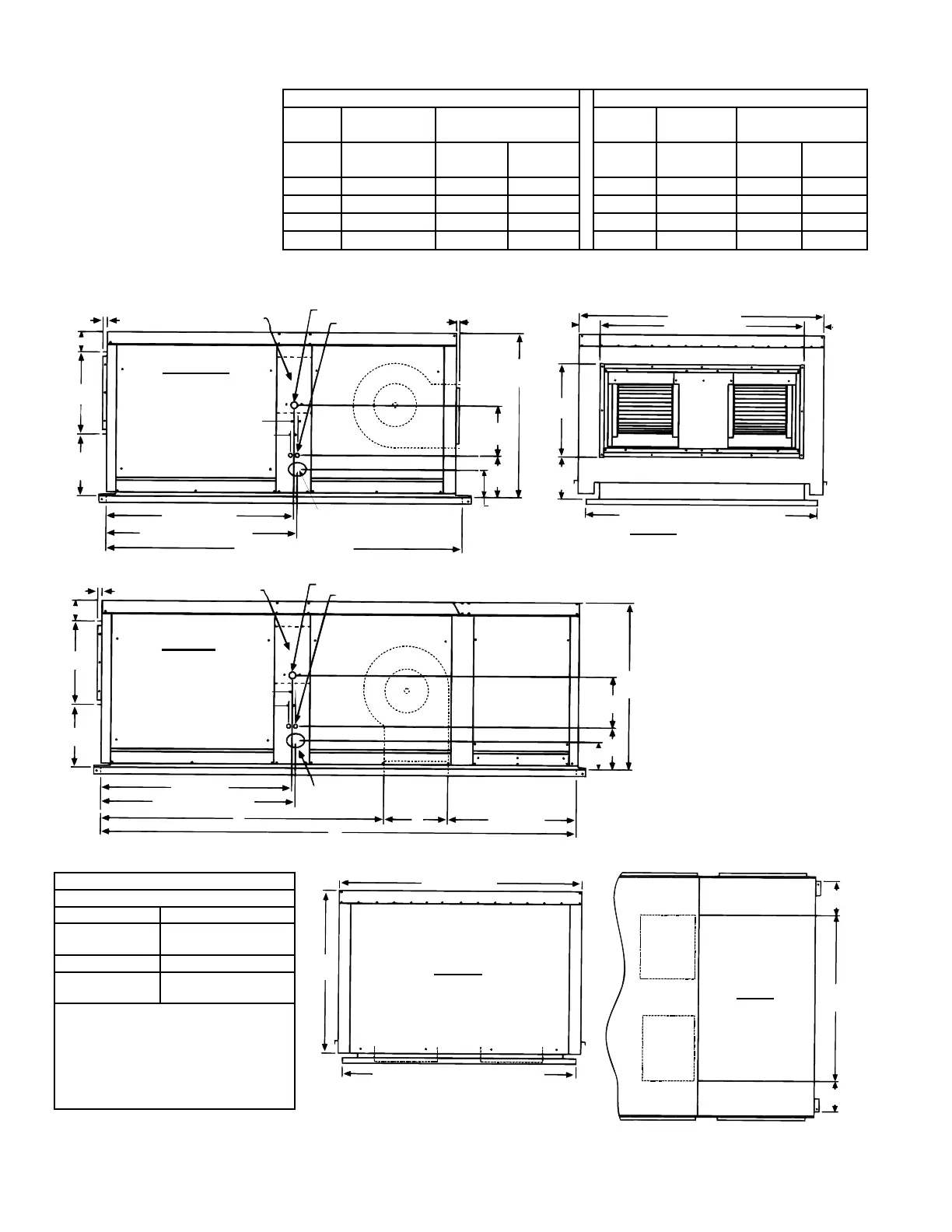

FIGURE 1B - Dimensions of Models ADF/ADFH 700 and 1200 - inches (mm)
Duct Dimensions
(with and without discharge dampers)
Models Horizontal
ADF 700/1200
48x15/16x22-1/8
(1243x562)
Models Vertical
ADF/ADFH
700/1200
Cx40-15/16 (Cx1024)
NOTE: Motor for optional dampers
with horizontal discharge is externally
mounted on the control side of the
damper frame. Horizontal damper
frame extends 6-5/8" (168mm) beyond
the duct connection on the heater. See
FIGURE 19, page 18.
Dimensions (inches) - FIGURE 1B Dimensions (mm) - FIGURE 1B
Horizontal
Discharge
Vertical Discharge
Horizontal
Discharge
Vertical Discharge
Mod-
els
ADF
ADF/
ADFH
ADF/
ADFH
Models ADF
ADF/
ADFH
ADF/
ADFH
Size 700/1200 700 1200 Size 700/1200 700 1200
A 92-1/8 117-1/32 117-1/32 A 2340 2973 2973
B - 72-1/8 69-7/8 B - 1832 1775
C - 13-13/16 16-1/16 C - 351 408
4.2.2 Dimensions of Models ADF/ADFH Sizes 700 and 1200
