The Eagle Manual

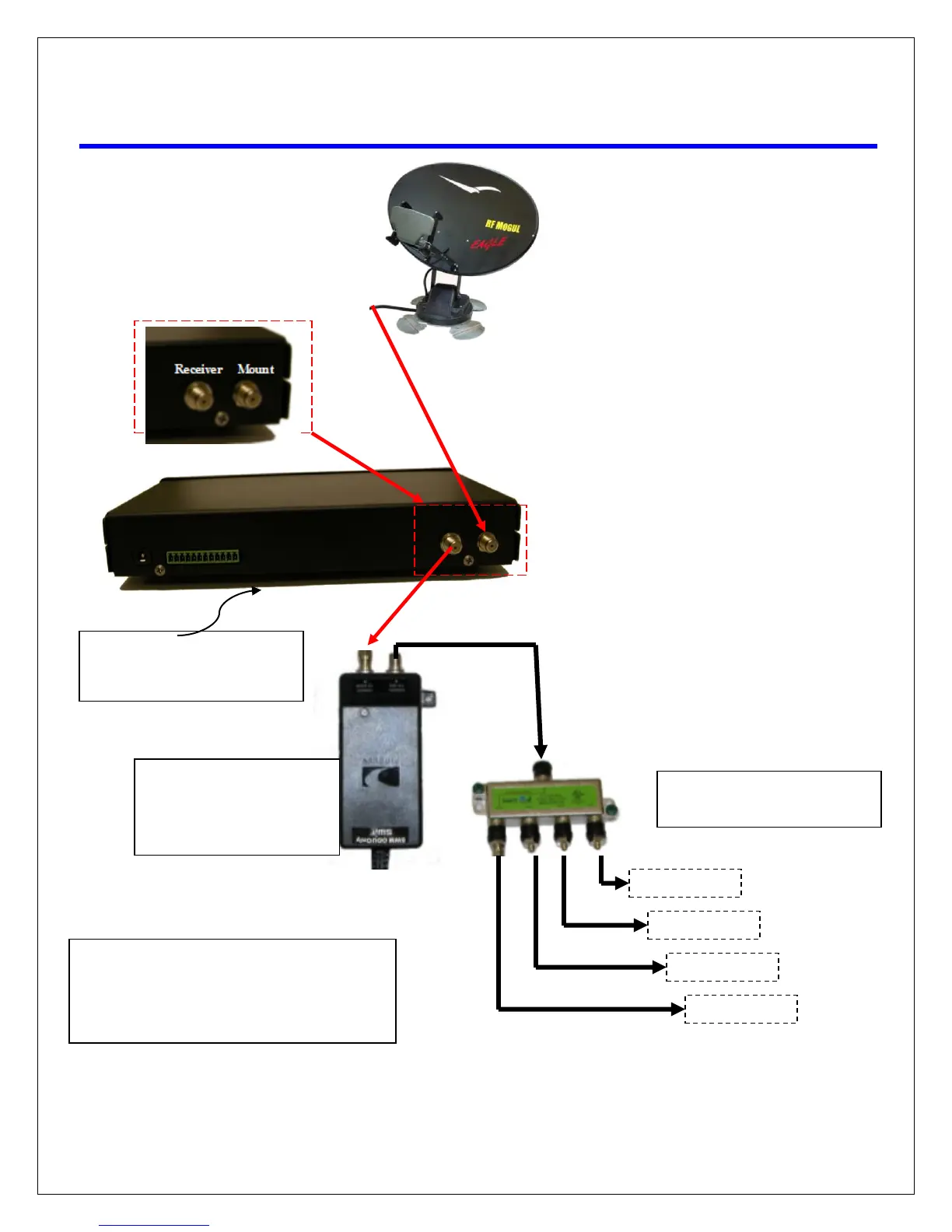

SWM Block Diagram

Receiver #1

Receiver #2

Receiver #3

Receiver #4

IDU Receiver line

Note:

The SWM LNB has 8

channels available. Each DVR

takes 2 channels (one coax). A

non-DVR uses one channel

(one coax). You may use any

combination of receivers until

you use up all 8 channels.

Example: A HR34 uses 5

channels leaving 3 channels

available.

This DirecTV SWM Installation

Does not represent the Genie 3 that

has a built in Power Inserter.

4 Port splitter shown.

8 Port splitter is available

INSET

110 Volts AC

Note: See bottom of IDU

for wiring instructions.

21 Volt Power Inserter

Do not use a 29-volt

Power Inserter with a

RF Mogul System
