The Eagle Manual
15

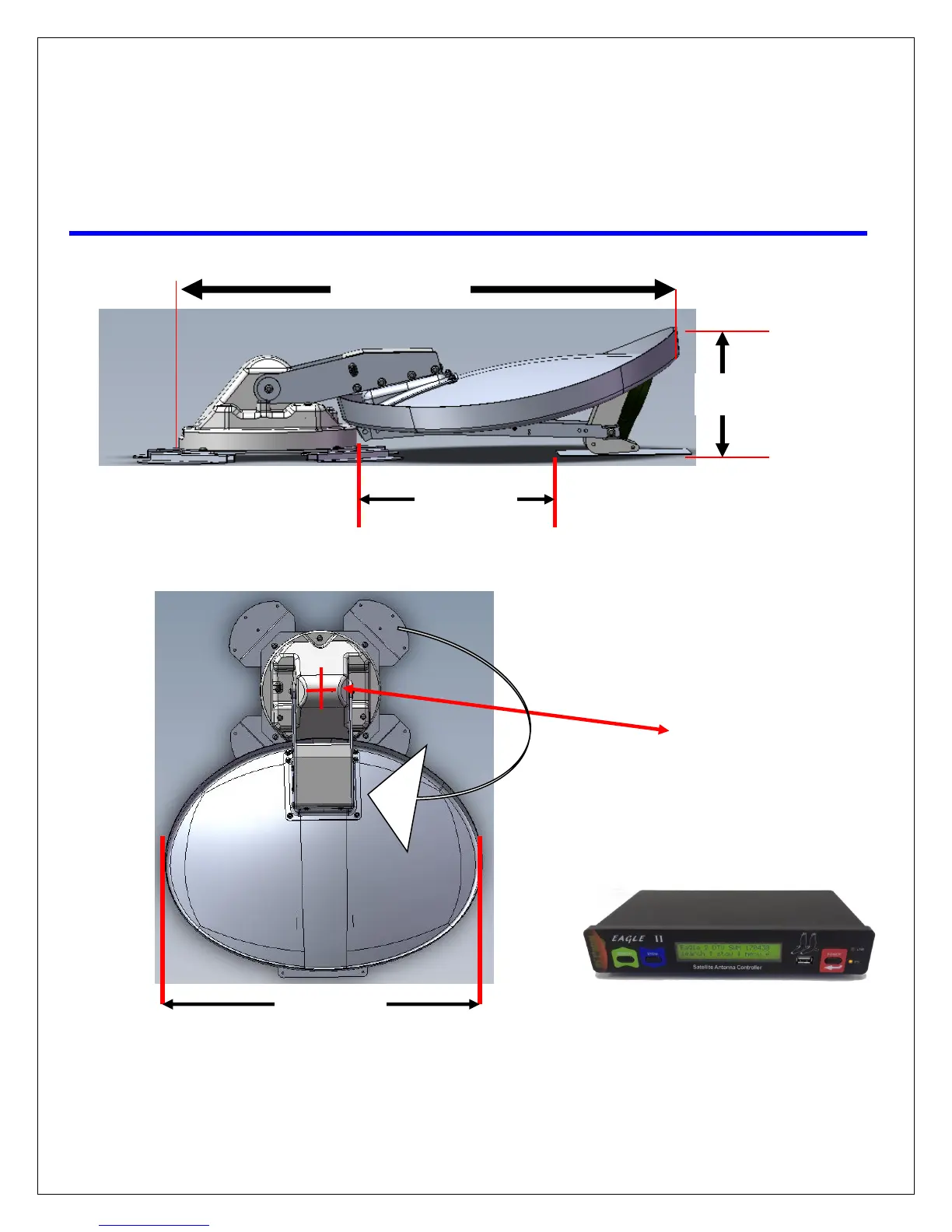

Footprint and Clearances
35.5 Inches
8 1/2 Inches
33.5 Inches
Rotational clearance
from center rotation
point is 18 inches when
dish is elevated and
rotating. This is a
safety zone.
CONTROLLER Dimensions
10" Wide
6" Deep
2" high
Distance for installing LNB
Landing Plate
13 1/2 Inches
