Controller Views

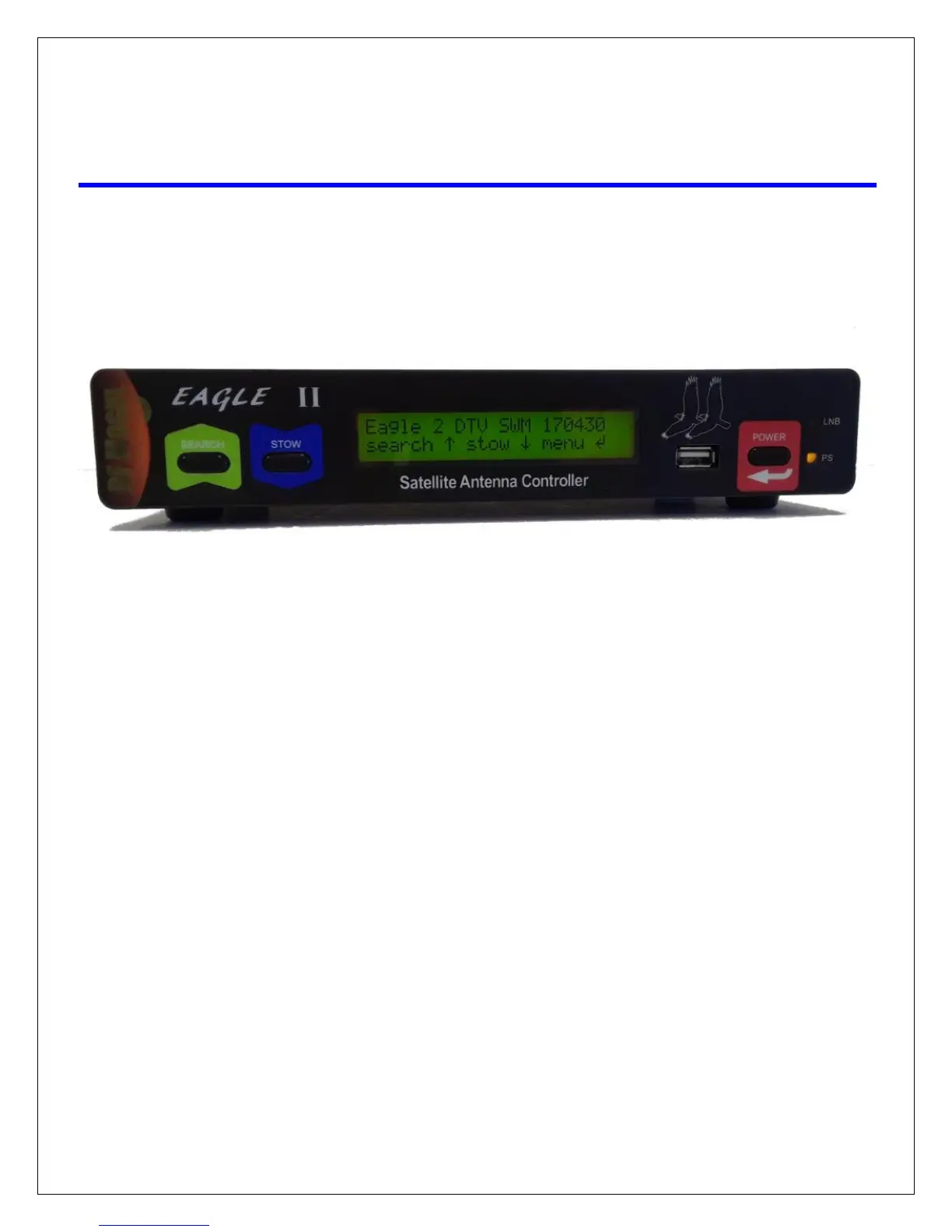

FRONT VIEW Definitions and Usage
SEARCH
Directs the system to "FIND" Satellites.
Also navigates through the menus.
STOW
Directs the system to "STOW" the mount and prepare it for travel
Also navigates through the menus.
LCD Display
Displays the actions of the system.
USB Programming Port
Used for upgrading firmware.
POWER
Will turn controller ON and OFF.
2
nd
push enters the Menu options. “Search” and “Stow” navigates through the menus. During that
time, the Power button serves as the “select” button.
LED
LNB indicates the receiver coax is attached to the controller.
PS indicates power is being supplied to the controller by the provided Power Supply.
