RF-Star RF-BM-2652P2 - Functional Block Diagram; Part Number Conventions

RF-BM-2652P2(I)
www.szrfstar.com V1.1 - May, 2023
Shenzhen RF-star Technology Co., Ltd. Page 4 of 24
1.4 Functional Block Diagram

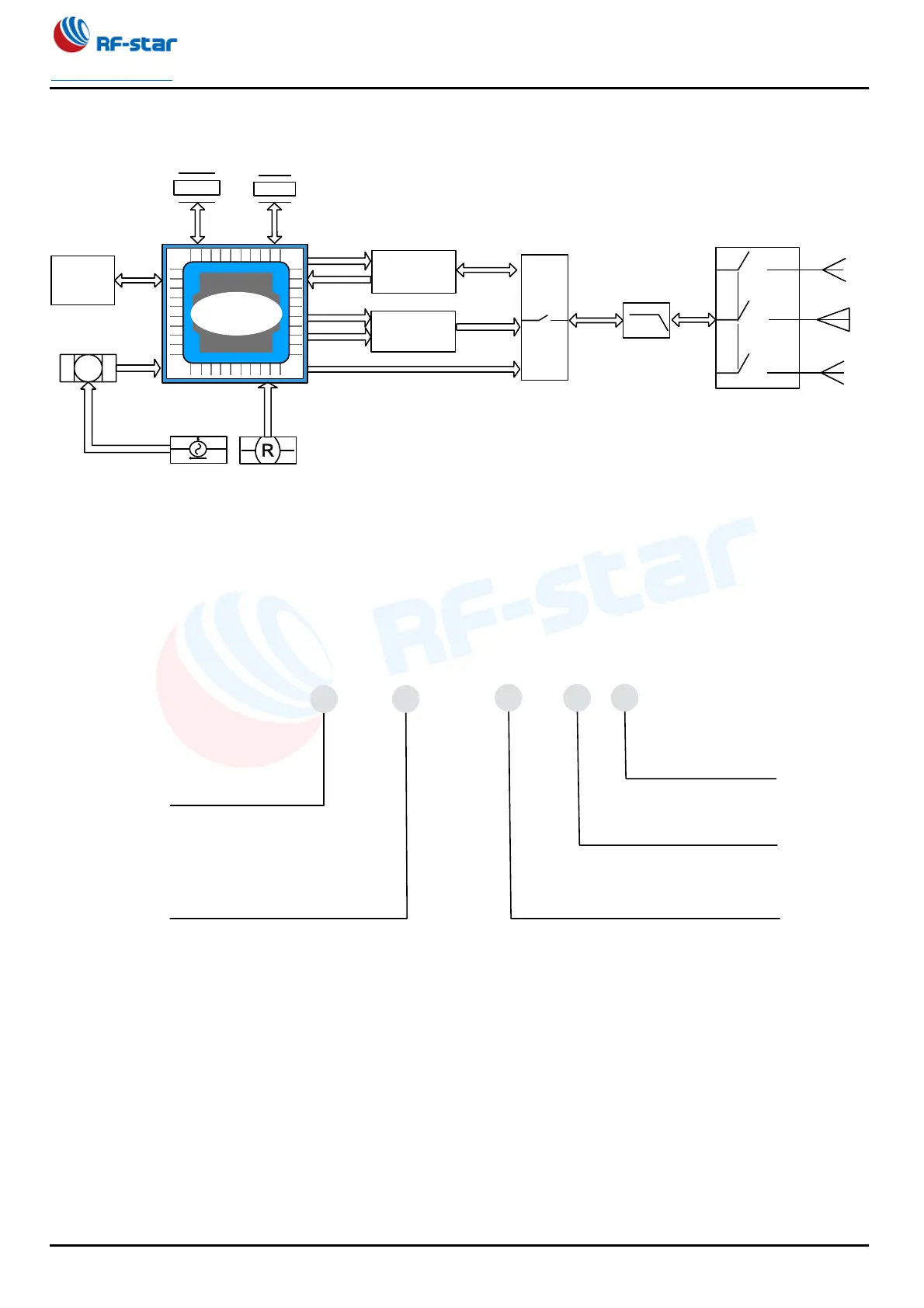

Figure 1. Functional Block Diagram of RF-BM-2652P2(I)
1.5 Part Number Conventions
The part numbers are of the form of RF-BM-2652P2(I) where the fields are defined as follows:
Figure 2. Part Number Conventions of RF-BM-2652P2(I)
RF
BM
2652P
Company Name
RF-STAR
Wireless Type
Bluetooth Module
Chipset
CC2652P
-
-
2
Module Version Number
The Second Version
I
Antenna Type
IPEX Connector
CC2652P
GPIOs
Jtag
EMI Filter
48.0 MHz
32.768 kHz
Reset
2.4 GHz
Balun
2.4 GHz
PA Balun
000
B
A
Power Supply
1.8 V ~ 3.8 V
Control (GPIO)
Antenna
Matching
Switch
PCB Antenna
IPEX Connector
Half Hole Interface
