5.2. Transmitter

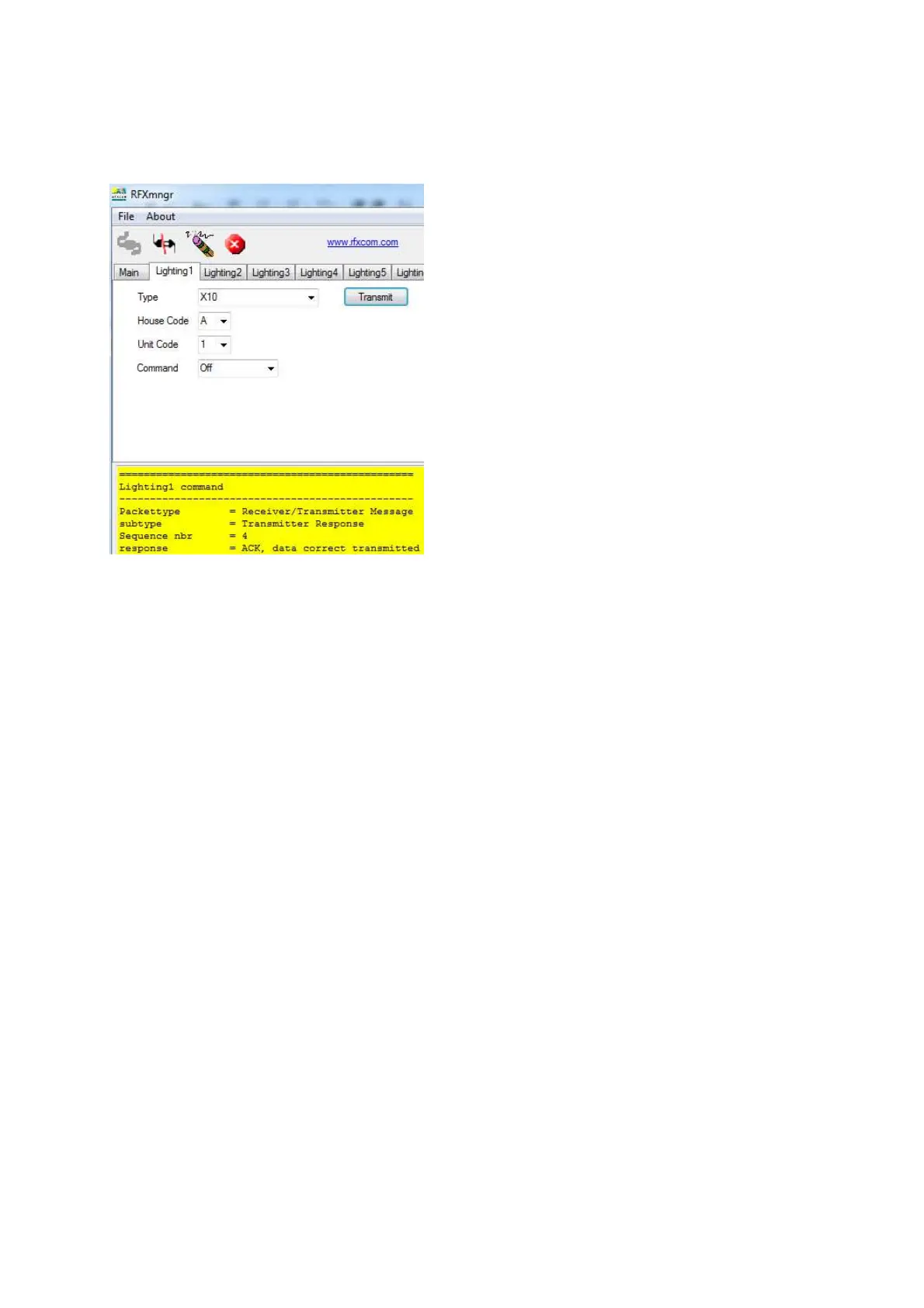

The tabs after the Main tab are used to send commands to the transmitter.
For example Lighting1 is used to send X10, ARC and some more.
Note: Protocol enabling is only necessary for receive. Transmit protocols are always enabled.
Select Type to see which protocols are supported on the different tabs.
The transmitted commands are displayed in the yellow window including the acknowledge send
by the RFXtrx, in the example above “ACK, data correct transmitted“.
