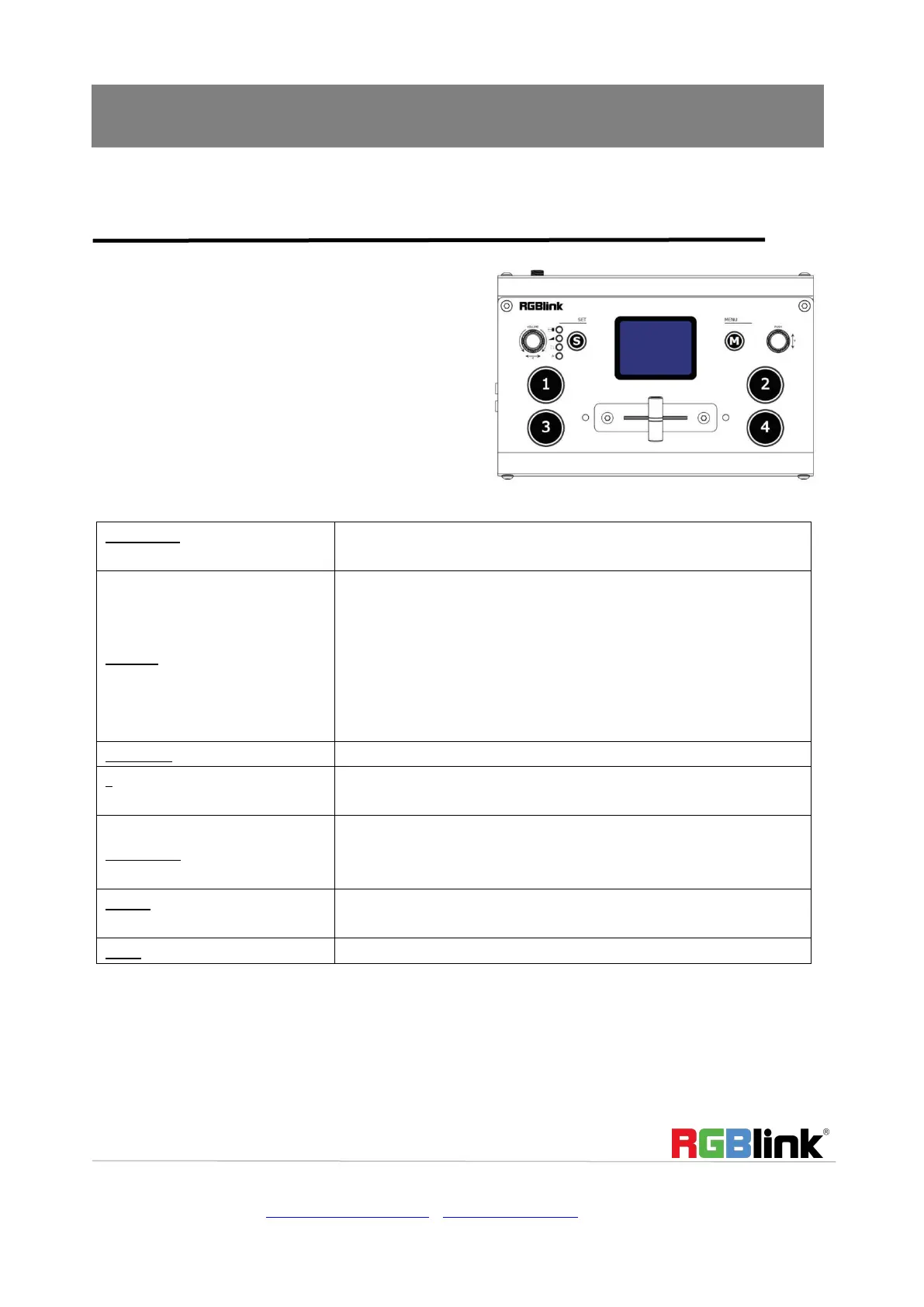

Hardware Orientation
Front Panel
TFT display
To display 4 inputs and menu
PUSH/Y
1. Knob, turn to select menu item, push to confirm
2. Work as a quick button to switch HDMI Out between 6-Picture
PVW and PGM when TFT is under the state of previewing 4 inputs.
3. On mini+, control camera lens position, moving up and down
under PTZ control menu-Pos.
4. On mini+, control camera lens zoom in and out under PTZ control
menu-Zoom.
M( menu)
Menu and Back Button
S
Function Select button, to select Transition effect, Switch Mode (Fast
or T-Bar), PIP and FX (reserved licensed feature for future)
VOLUME/X
1. Turn to adjust volume of PGM
2. On mini+, control camera lens move left and right under PTZ
control menu.
1,2,3,4
4 inputs, red is on air (PGM), static green is signal standing by to
switch, flash green is the ready to be switched
T-Bar
Manual switch, push to left end or right end to switch signal to PGM.
