RGBlink VSP 516S Quick Start Guide

Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C
Tel: 00865925771197 Fax:00865925771202
Email: rgblinkcs@gmail.com http://www.rgblink.cn
6

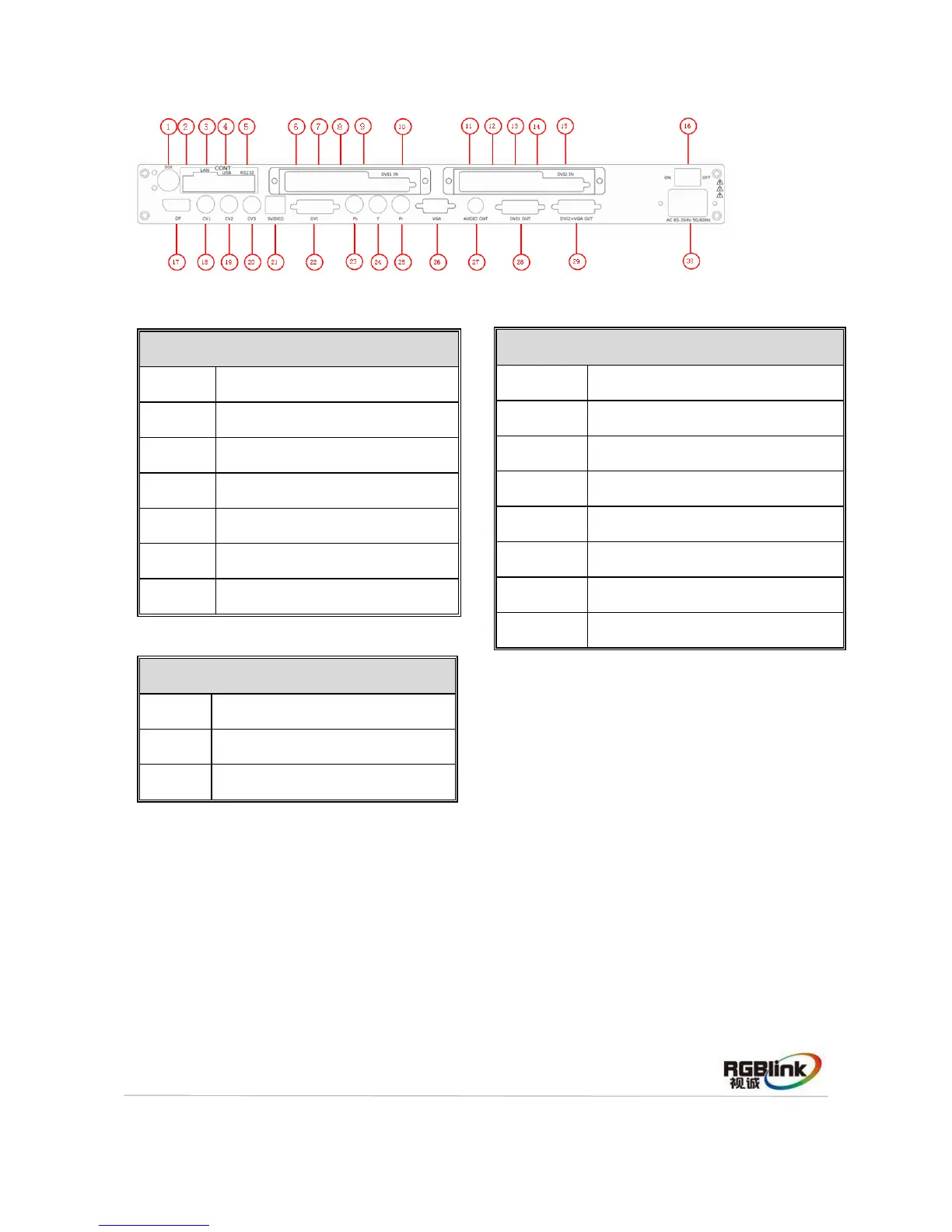

VSP 516S back panel with sending card:
Input Interface
1
3G-SDI input BNC Port
17
Displayport Input Port
18~20
CVBS Input BNC port
21
S-Video Input DIN 4 Port
22
DVI Input DVI-I Port
23~25
YPbPr Input
26
VGA Input DB15 Port
Other Interface
2
Dial Switch
3.6.7.11.12
10/100M Interface RJ45
4. 9.14
USB Interface USB-B Port
5
RS232 Interface
8.13
Power Supply Port of Sending Card
10.15
DVI Input Port of Sending Card
16
Power Switch
30
Power IEC-3
Output Interface
27
Audio Output
28
DVI Output DVI-I port
29
VGA Output DB15 port
